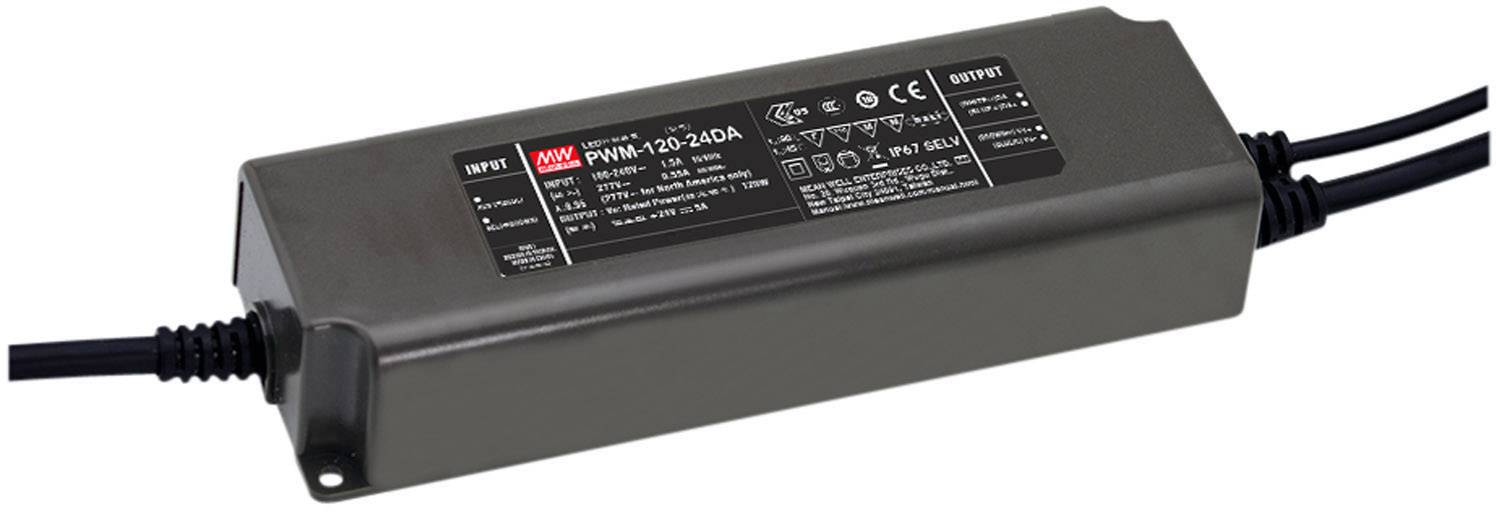

MEAN WELL PWM-120-24DA LED driver Constant voltage 120 W 5 A 24 V DC dimmable, DALI, Suitable for flammable surfaces, Ap
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PWM-120-24DA
- Constant voltage
- 24 V DC
- 5 A
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Dim
(L x W x H) 191 x 63 x 37.5 mm
- Factory colour
Anthracite
- Output voltage (max.)
24 V DC
- Max. output current
5 A
- Output current (max.) - rounded
5 A
- Operating voltage
115 V AC
230 V AC
- Protection class
II
- LED driver features
dimmable
DALI
Suitable for flammable surfaces
Approved for use on furniture
PFC circuit
Surge protection
Overvoltage
Outdoor
IP67
- Connection
Open end cable
- Max. power
120 W
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
305 V AC
431 V DC
- Min. input voltage
90 V AC
127 V DC
- Weight
970 g
- Power range
120 W (max)
- Width
63 mm
- Height
37.5 mm
- Length
191 mm
- Max. temperature
90 °C
- Min. temperature
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1838072 MEAN WELL PWM-120-24DA LED driver Constant voltage 120 W 5 A 24 V DC dimmable, DALI, Suitable for flammable surfaces, Ap
User & Safety Instructions
User & Safety Instructions 1838072 MEAN WELL PWM-120-24DA LED driver Constant voltage 120 W 5 A 24 V DC dimmable, DALI, Suitable for flammable surfaces, Ap
Conformity certificate
Conformity certificate 1838072 MEAN WELL PWM-120-24DA LED driver Constant voltage 120 W 5 A 24 V DC dimmable, DALI, Suitable for flammable surfaces, Ap
Warranty Terms
Warranty Terms 1838072 MEAN WELL PWM-120-24DA LED driver Constant voltage 120 W 5 A 24 V DC dimmable, DALI, Suitable for flammable surfaces, Ap
Description
For our customers, we have the DALI-variant PWM -120-12 SINCE and PWM -120-24 as with 120 W from the well-known LED DRIVER SERIES PWM-120 from mean well to the program. The power supplies have been specially designed for applications for intelligent PWM-120-DA dimming designed and feature a pulse width modulator bears constant voltage output (PWM) with a frequency of 1.47 kHz. The switched-mode power supplies meet the international standards IEC 62386-101 ,102 DALI and 207 what users security is ensured. In standby mode the power consumption of the DALI-version is less than 0.5W. Thanks to vollverkapseltem IP67 Plastic casing are the LED driver of the protection class II particularly robust and waterproof. For the suitable applications include commercial LED lighting, office lighting and decorative LED lighting for both indoor and outdoor use. PWM-120-DA has a built-in active power factor correction (PFC), the operating temperature range is between -40 to +90 °C.
This text is machine translated.
This text is machine translated.
Features
- Independent operating device
- PWM-120_DA: IP67, DALI
- Universal input
- Plastic housing IP67
- Overload protection through current limitation (Hiccup), auto recovery
- Protected against short circuit, overload, over voltage
- Built-in PFC circuit
- For LED lighting applications
- PWM output voltage
- EN 61000-3-2, Class C, EN55015, EN 61347-1, EN 61347-2-13
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
