Name: MEAN WELL RSDW20H-15 DC/DC converter 1.33 A 20 W No. of outputs: 1 x Content 1 pc(s)
Brand: MEAN WELL
SKU: 2143582
Availability: InStock

Rectangular DC-DC Converter, Model RSDW120G-03, 18W, Input Voltage: 3.3-5V, Output: 5500mA, manufactured in China.

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 39.99 / piece)

€ 39.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

MEANWELL DC/DC converter module series RSDW20 DIP/DIL 2"x1" Case Single Output input voltage ratio: 4:1 Power: 20W Railway

In the DIP/DIL 2 x 1 inch housing
For direct PCB mounting
Input voltage range 4:1
No minimum load required
Input/output insulation 3000 V DC
Protection: short circuit (continuously), overload, over voltage and input voltage
Efficiency up to 89%
This text is machine translated.

Technical specifications

Product type: DC/DC converter

Type: RSDW20H-15

Min. input voltage: 43 V DC

Input voltage (max.): 160 V DC

No. of outputs: 1 x

Max. output current: 1.33 A

Output current (max.) - rounded: 1.33 A

Efficiency (max.): 89.5 %

: 20 W

Insulation voltage: 3000 V DC

Connection: Pins

PSU features: DC-to-DC converter

Operating temperature (min.): -40 °C

Operating temperature (max.): +85 °C

Dim: (L x W x H) 50.8 x 25.4 x 10.2 mm

Height: 10.2 mm

Length: 50.8 mm

Width: 25.4 mm

RoHS-compliant: Yes

Output voltage (max.): 15 V DC

Weight: 35 g

Content: 1 pc(s)

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Input voltage (max.)

Output current (max.) - rounded

Min. input voltage

MEAN WELL RSDW20H-15 DC/DC converter 1.33 A 20 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143582

Fast track dispatch on Thu 15 Oct

4 Piece(s)Conrad Electronic

This article

160 V DC

1.33 A

43 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 39.99^*

MEAN WELL RSDW20F-03 DC/DC converter 5.5 A 20 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143453

Fast track dispatch on Thu 15 Oct

2 Piece(s)Conrad Electronic

36 V DC

5.5 A

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 38.99^*

MEAN WELL RSDW20F-05 DC/DC converter 4 A 20 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143579

Dispatches on Tue, 9 Feb 2027

Conrad Electronic

36 V DC

4 A

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 49.99^*

MEAN WELL RSDW20F-12 DC/DC converter 1.67 A 20 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143368

Dispatches on Mon 19 Oct

5 Piece(s)Conrad Electronic

36 V DC

1.67 A

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 48.99^*

MEAN WELL RSDW20F-15 DC/DC converter 1.33 A 20 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143503

Fast track dispatch on Thu 15 Oct

2 Piece(s)Conrad Electronic

36 V DC

1.33 A

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 43.99^*

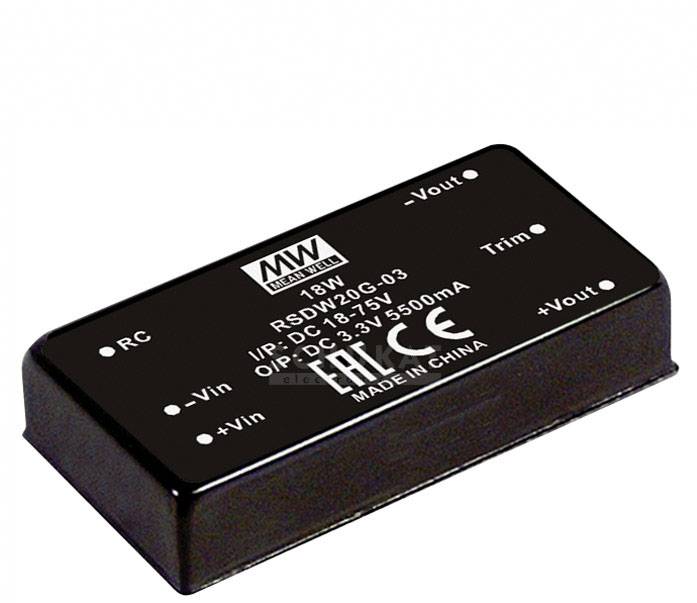

MEAN WELL RSDW20G-03 DC/DC converter 5.5 A 20 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143580

Fast track dispatch on Thu 15 Oct

2 Piece(s)Conrad Electronic

75 V DC

5.5 A

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 38.99^*

MEAN WELL RSDW20G-05 DC/DC converter 4 A 20 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143365

Fast track dispatch on Thu 15 Oct

2 Piece(s)Conrad Electronic

75 V DC

4 A

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 38.99^*

MEAN WELL RSDW20G-12 DC/DC converter 1.67 A 20 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143676

Fast track dispatch on Thu 15 Oct

1 Piece(s)Conrad Electronic

75 V DC

1.67 A

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 38.99^*

MEAN WELL RSDW20G-15 DC/DC converter 1.33 A 20 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143454

Fast track dispatch on Thu 15 Oct

2 Piece(s)Conrad Electronic

75 V DC

1.33 A

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 38.99^*

MEAN WELL RSDW20H-05 DC/DC converter 4 A 20 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143677

Fast track dispatch on Thu 15 Oct

2 Piece(s)Conrad Electronic

160 V DC

4 A

43 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 38.99^*

Documents & Downloads

Datasheet

Datasheet 2143582 MEAN WELL RSDW20H-15 DC/DC converter 1.33 A 20 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2143582 MEAN WELL RSDW20H-15 DC/DC converter 1.33 A 20 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2143582 MEAN WELL RSDW20H-15 DC/DC converter 1.33 A 20 W No. of outputs: 1 x Content 1 pc(s)

Features

In the DIP/DIL 2 x 1 inch housing
For direct PCB mounting
Input voltage range 4:1
No minimum load required
Input/output insulation 3000 V DC
Protection: short circuit (continuously), overload, over voltage and input voltage

Description

Features

In the DIP/DIL 2 x 1 inch housing
For direct PCB mounting
Input voltage range 4:1
No minimum load required
Input/output insulation 3000 V DC
Protection: short circuit (continuously), overload, over voltage and input voltage
