Buy MEAN WELL SCWN03B-03 DC/DC converter (module) 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)

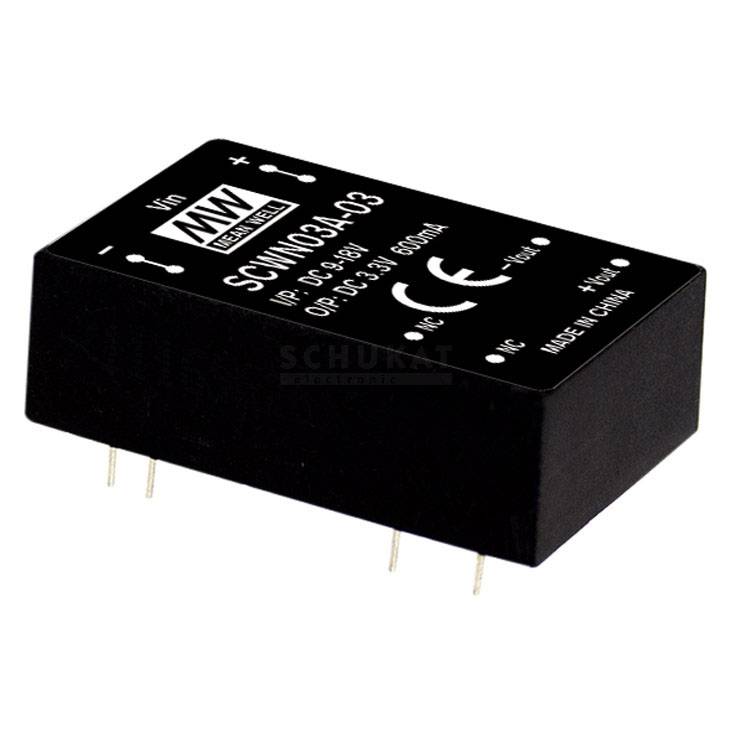

Black Mean Well DC/DC converter, model SCWN03A-03, with technical specifications and symbols on the top surface.

Datasheet (PDF)

Fast track dispatch on Fri, 4 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 9.24 / piece)

€ 9.24

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

MEANWELL DC/DC converter modules series SCWN03 DIP/DIL 24 Case Single Output Input voltage ratio: 2:1 Power 3 W regulated

DIP 24/DIL 24-housing
For direct PCB mounting
Input voltage ratio: 2:1
No minimum load required
Input/output insulation 3000 V
Regulated output voltage
Efficiency up to 87%

Technical specifications

Product type: DC/DC converter (module)

Type: SCWN03B-03

Min. input voltage: 18 V DC

Input voltage (max.): 36 V DC

No. of outputs: 1 x

Max. output current: 600 mA

Output current (max.) - rounded: 600 mA

Efficiency (max.): 78 %

: 3 W

Insulation voltage: 3000 V DC

Connection: Pins

PSU features: DC-to-DC converter

Operating temperature (min.): -40 °C

Operating temperature (max.): +90 °C

Dim: (L x W x H) 31.8 x 20.3 x 10.2 mm

Height: 10.2 mm

Length: 31.8 mm

Width: 20.3 mm

Output voltage (max.): 3.3 V DC

Weight: 12.5 g

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2143642 MEAN WELL SCWN03B-03 DC/DC converter (module) 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2143642 MEAN WELL SCWN03B-03 DC/DC converter (module) 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2143642 MEAN WELL SCWN03B-03 DC/DC converter (module) 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Description

MEAN CORRUGATED expands its range of 3W DC/DC converters with single output of the SCWN03 series in the DIP24 casing. In addition to a wide input range of 2:1 and an extremely wide operating temperature range from -40 to +90 °C, you are with 3000 V DC I/O insulation. Suitable applications include IoT, electronics, telecommunications, networking, industrial control and distributed power architecture.

This text is machine translated.
