Buy MEAN WELL SFTN01L-12 DC/DC converter (module) 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)

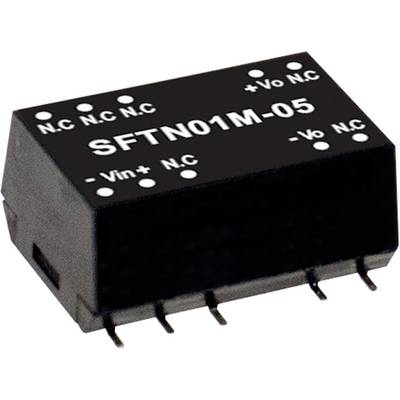

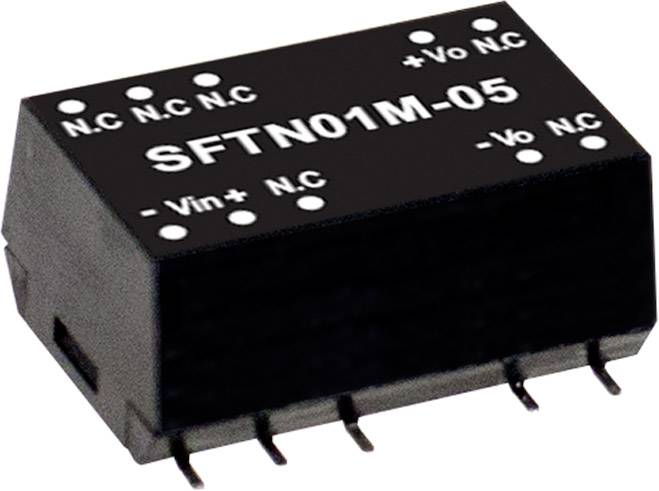

Black electronic component labelled 'SFTN01M-05', showing connection designations from 'Vin+' through 'N.C.' to '+Vo'.

Datasheet (PDF)

2 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 5.45 / piece)

€

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

MEANWELL SMD DC/DC converter modules series sftn 01 SMD Case Single Output Input voltage ratio: 1:1 Power: 1 W non-rule

SMD housing
For direct PCB mounting
Input/output insulation 3000 V DC
Conforms to the EN 55032 Class B without additional components
Efficiency up to 82%
Circuit breaker
Low Cost

Technical specifications

Product type: DC/DC converter (module)

Type: SFTN01L-12

Min. input voltage: 4.5 V DC

Input voltage (max.): 5.5 V DC

No. of outputs: 1 x

Max. output current: 84 mA

Output current (max.) - rounded: 84 mA

Efficiency (max.): 80 %

: 1 W

Insulation voltage: 3000 V DC

Connection: Pins

PSU features: DC-to-DC converter

Operating temperature (min.): -40 °C

Operating temperature (max.): +90 °C

Dim: (L x W x H) 15.24 x 10.9 x 7.1 mm

Height: 7.1 mm

Length: 15.24 mm

Width: 10.9 mm

RoHS-compliant: Yes

Output voltage (max.): 12 V DC

Output current (min.): 8.4 mA

Weight: 1.2 g

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2143394 MEAN WELL SFTN01L-12 DC/DC converter (module) 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2143394 MEAN WELL SFTN01L-12 DC/DC converter (module) 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2143394 MEAN WELL SFTN01L-12 DC/DC converter (module) 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Description

MEAN CORRUGATED has its program of converters the unregulated 1W SMD DC/DC converter with single output expanded. In comparison to the converters of the last generation SFT01, the new series sftn 01 a larger operating temperature range (-40 to +90 °C) and a higher degree of efficiency (up to 83%). In addition, the pin assignment for the new series sftn 01 identical to the original SFT01 converters, so that a redesign of the circuit board layouts is necessary in order to use the new converter. Suitable applications include IoT, electronics, telecommunications, networking, industrial control and distributed power architectures.

This text is machine translated.
