Name: MEAN WELL SKM10B-03 DC/DC converter (module) 2.5 A 10 W No. of outputs: 1 x Content 1 pc(s)
Brand: MEAN WELL
SKU: 2143378
Availability: InStock

Black, rectangular electronic component with 'MEAN WELL' printed on it and technical specifications. Used for power supply.

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

151 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 24.99 / piece)

€ 24.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

MEANWELL DC/DC converter module series SKM10 DIP 1"x1" Case Single Output input voltage ratio: 2:1 Power: 10W regulated

In the DIP 1 x 1 inch housing
2:1 input voltage range
No minimum load required
Input/output insulation 1500 V DC
Protection: short circuit (continuously), overload, over voltage, input voltage
According to EN 55032 Class A transmitted without additional components
Remote control on/Aus-Steuerung and trim mouse response
Efficiency up to 90%

Technical specifications

Product type: DC/DC converter (module)

Type: SKM10B-03

Min. input voltage: 18 V DC

Input voltage (max.): 36 V DC

No. of outputs: 1 x

Max. output current: 2.5 A

Output current (max.) - rounded: 2.5 A

Efficiency (max.): 82 %

: 10 W

Insulation voltage: 1500 V DC

Connection: Pins

PSU features: DC-to-DC converter

Operating temperature (min.): -40 °C

Operating temperature (max.): +85 °C

Dim: (L x W x H) 25.4 x 25.4 x 10.2 mm

Height: 10.2 mm

Length: 25.4 mm

Width: 25.4 mm

RoHS-compliant: Yes

Output voltage (max.): 3.3 V DC

Weight: 18 g

Content: 1 pc(s)

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Input voltage (max.)

Output current (max.) - rounded

Min. input voltage

MEAN WELL SKM10B-03 DC/DC converter (module) 2.5 A 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143378

Fast track dispatch on Thu 15 Oct

151 Piece(s)Conrad Electronic

This article

36 V DC

2.5 A

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 24.99^*

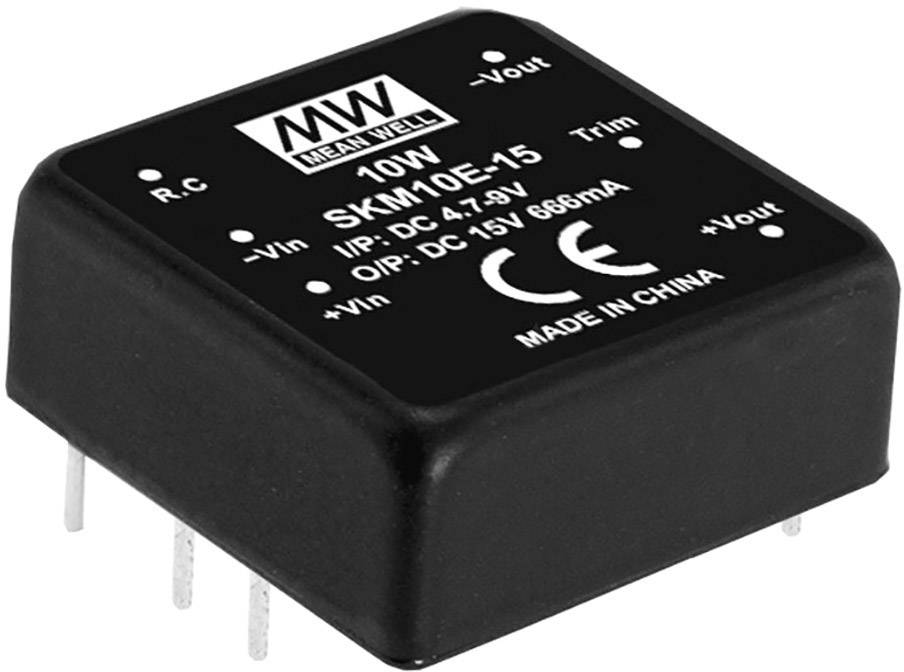

MEAN WELL SKM10A-03 DC/DC converter (module) 2.5 A 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143446

Dispatches on Fri 16 Oct

1 Piece(s)Conrad Electronic

18 V DC

2.5 A

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

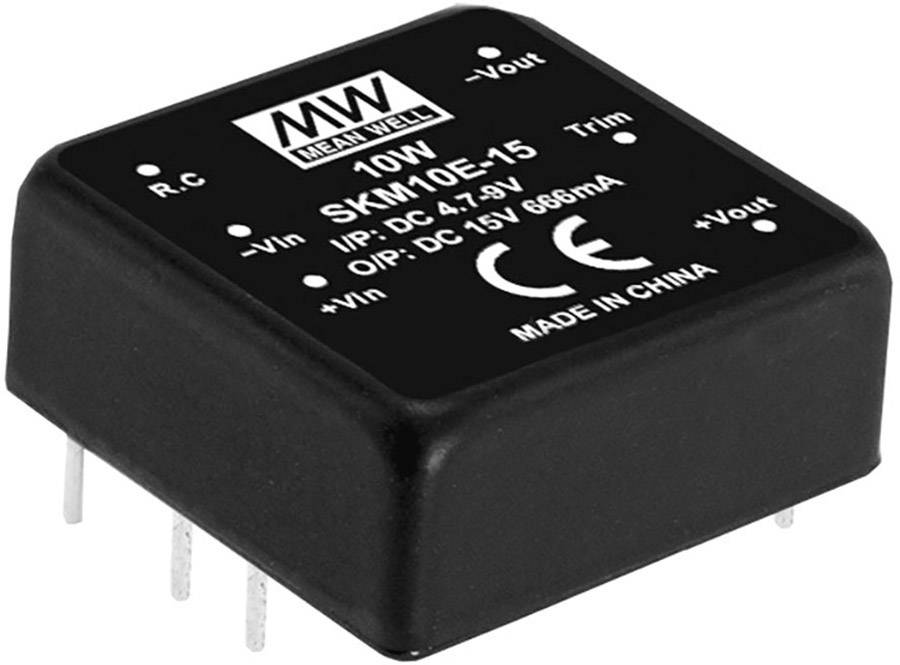

MEAN WELL SKM10A-05 DC/DC converter (module) 2 A 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143399

Fast track dispatch on Thu 15 Oct

3 Piece(s)Conrad Electronic

18 V DC

2 A

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 23.99^*

MEAN WELL SKM10A-12 DC/DC converter (module) 833 mA 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143346

Fast track dispatch on Thu 15 Oct

2 Piece(s)Conrad Electronic

18 V DC

833 mA

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 21.99^*

MEAN WELL SKM10A-15 DC/DC converter (module) 666 mA 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143652

Fast track dispatch on Thu 15 Oct

1 Piece(s)Conrad Electronic

18 V DC

666 mA

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 21.99^*

MEAN WELL SKM10B-05 DC/DC converter (module) 2 A 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143653

Fast track dispatch on Thu 15 Oct

2 Piece(s)Conrad Electronic

36 V DC

2 A

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

MEAN WELL SKM10B-12 DC/DC converter (module) 833 mA 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143348

Fast track dispatch on Thu 15 Oct

21 Piece(s)Conrad Electronic

36 V DC

833 mA

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

MEAN WELL SKM10B-15 DC/DC converter (module) 666 mA 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143484

Fast track dispatch on Thu 15 Oct

3 Piece(s)Conrad Electronic

36 V DC

666 mA

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 24.99^*

MEAN WELL SKM10C-03 DC/DC converter (module) 2.5 A 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143485

Fast track dispatch on Thu 15 Oct

2 Piece(s)Conrad Electronic

75 V DC

2.5 A

36 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 21.99^*

MEAN WELL SKM10C-05 DC/DC converter (module) 2 A 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143552

Fast track dispatch on Thu 15 Oct

3 Piece(s)Conrad Electronic

75 V DC

2 A

36 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 21.99^*

Documents & Downloads

Datasheet

Datasheet 2143378 MEAN WELL SKM10B-03 DC/DC converter (module) 2.5 A 10 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2143378 MEAN WELL SKM10B-03 DC/DC converter (module) 2.5 A 10 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2143378 MEAN WELL SKM10B-03 DC/DC converter (module) 2.5 A 10 W No. of outputs: 1 x Content 1 pc(s)

Description

With the new series SKM 10 offers mean corrugated converter modules with high power density in a 1 x 1 inch miniature housing in the power range of 10 W with single-output. The DC/DC converter have an industry standard pin assignment, a wide input voltage range of 2:1, a very wide operating temperature range from -40 to +85 °C and over 1500 VDC I/O insulation. Suitable applications include IoT, electronics, telecommunications, networking, industrial control and distributed power architecture, etc.
