Buy MEAN WELL SKM10E-05 DC/DC converter (module) 2 A 10 W No. of outputs: 1 x Content 1 pc(s)

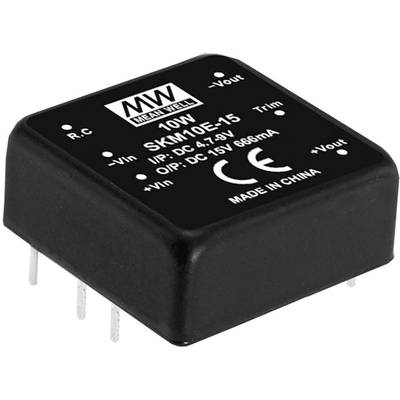

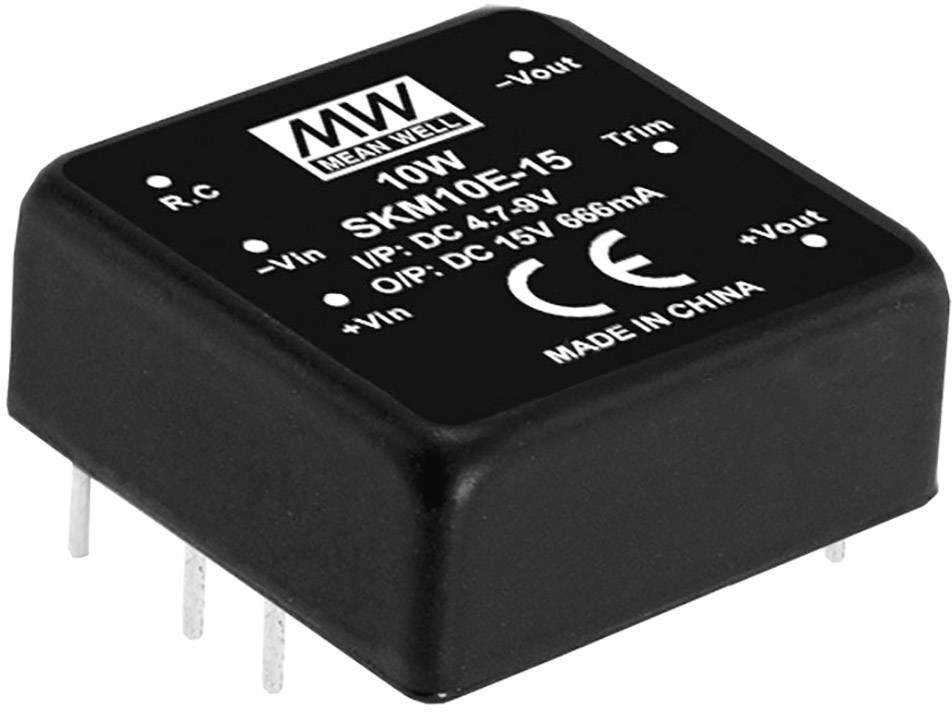

Black electronic component with white markings, containing technical specification details such as power (10W) and voltage (input and output).

Datasheet (PDF)

2 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 20.16 / piece)

€

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

MEANWELL DC/DC converter module series SKM10 DIP 1"x1" Case Single Output input voltage ratio: 2:1 Power: 10W regulated

In the DIP 1 x 1 inch housing
2:1 input voltage range
No minimum load required
Input/output insulation 1500 V DC
Protection: short circuit (continuously), overload, over voltage, input voltage
According to EN 55032 Class A transmitted without additional components
Remote control on/Aus-Steuerung and trim mouse response
Efficiency up to 90%

Technical specifications

Product type: DC/DC converter (module)

Type: SKM10E-05

Min. input voltage: 4.7 V DC

Input voltage (max.): 9 V DC

No. of outputs: 1 x

Max. output current: 2 A

Output current (max.) - rounded: 2 A

Efficiency (max.): 87 %

: 10 W

Insulation voltage: 1500 V DC

Connection: Pins

PSU features: DC-to-DC converter

Operating temperature (min.): -40 °C

Operating temperature (max.): +85 °C

Dim: (L x W x H) 25.4 x 25.4 x 10.2 mm

Height: 10.2 mm

Length: 25.4 mm

Width: 25.4 mm

RoHS-compliant: Yes

Output voltage (max.): 5 V DC

Weight: 18 g

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2143339 MEAN WELL SKM10E-05 DC/DC converter (module) 2 A 10 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2143339 MEAN WELL SKM10E-05 DC/DC converter (module) 2 A 10 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2143339 MEAN WELL SKM10E-05 DC/DC converter (module) 2 A 10 W No. of outputs: 1 x Content 1 pc(s)

Description

With the new series SKM 10 offers mean corrugated converter modules with high power density in a 1 x 1 inch miniature housing in the power range of 10 W with single-output. The DC/DC converter have an industry standard pin assignment, a wide input voltage range of 2:1, a very wide operating temperature range from -40 to +85 °C and over 1500 VDC I/O insulation. Suitable applications include IoT, electronics, telecommunications, networking, industrial control and distributed power architecture, etc.

This text is machine translated.
