Name: MEAN WELL SKM10E-15 DC/DC converter (module) 666 mA 10 W No. of outputs: 1 x Content 1 pc(s)
Brand: MEAN WELL
SKU: 2143654
Availability: InStock

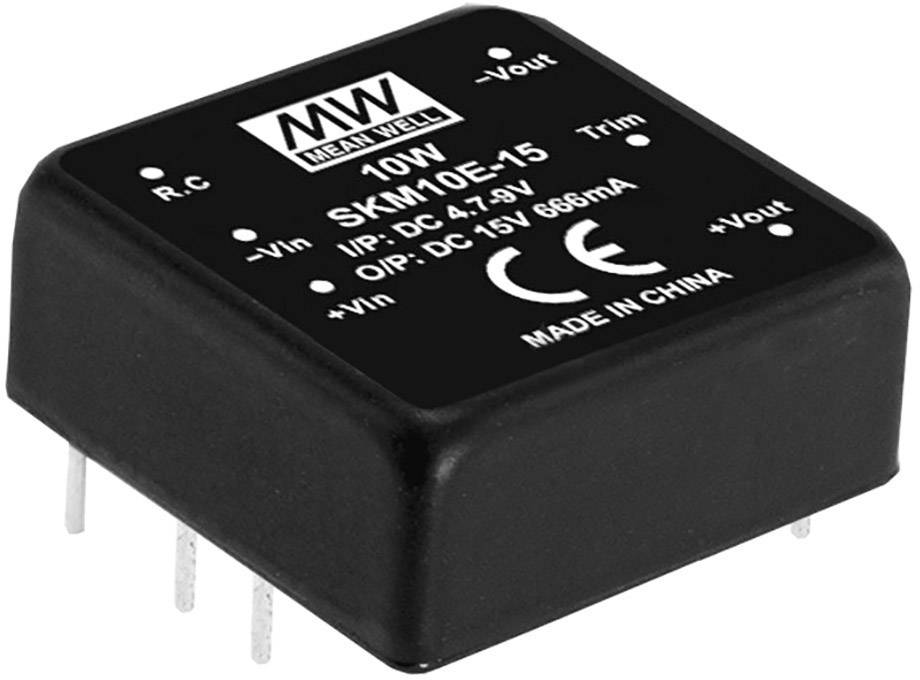

'Rectangular DC voltage converter, 10W, Model SKM10E-15, with CE marking, input and output pins, manufactured in China.'

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 23.99 / piece)

€ 23.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

MEANWELL DC/DC converter module series SKM10 DIP 1"x1" Case Single Output input voltage ratio: 2:1 Power: 10W regulated

In the DIP 1 x 1 inch housing
2:1 input voltage range
No minimum load required
Input/output insulation 1500 V DC
Protection: short circuit (continuously), overload, over voltage, input voltage
According to EN 55032 Class A transmitted without additional components
Remote control on/Aus-Steuerung and trim mouse response
Efficiency up to 90%

Technical specifications

Product type: DC/DC converter (module)

Type: SKM10E-15

Min. input voltage: 4.7 V DC

Input voltage (max.): 9 V DC

No. of outputs: 1 x

Max. output current: 666 mA

Output current (max.) - rounded: 666 mA

Efficiency (max.): 87 %

: 10 W

Insulation voltage: 1500 V DC

Connection: Pins

PSU features: DC-to-DC converter

Operating temperature (min.): -40 °C

Operating temperature (max.): +85 °C

Dim: (L x W x H) 25.4 x 25.4 x 10.2 mm

Height: 10.2 mm

Length: 25.4 mm

Width: 25.4 mm

RoHS-compliant: Yes

Output voltage (max.): 15 V DC

Weight: 18 g

Content: 1 pc(s)

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Input voltage (max.)

Min. input voltage

Output current (max.) - rounded

Output voltage (max.)

MEAN WELL SKM10E-15 DC/DC converter (module) 666 mA 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143654

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

This article

9 V DC

4.7 V DC

666 mA

15 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 23.99^*

MEAN WELL SKM10A-03 DC/DC converter (module) 2.5 A 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143446

Dispatches on Fri 30 Oct

1 Piece(s)Conrad Electronic

18 V DC

9 V DC

2.5 A

3.3 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

MEAN WELL SKM10A-05 DC/DC converter (module) 2 A 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143399

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

18 V DC

9 V DC

2 A

5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 23.99^*

MEAN WELL SKM10A-12 DC/DC converter (module) 833 mA 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143346

Fast track dispatch on Thu 29 Oct

2 Piece(s)Conrad Electronic

18 V DC

9 V DC

833 mA

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 23.99^*

MEAN WELL SKM10A-15 DC/DC converter (module) 666 mA 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143652

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

18 V DC

9 V DC

666 mA

15 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 23.99^*

MEAN WELL SKM10B-03 DC/DC converter (module) 2.5 A 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143378

Fast track dispatch on Thu 29 Oct

151 Piece(s)Conrad Electronic

36 V DC

18 V DC

2.5 A

3.3 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 24.99^*

MEAN WELL SKM10B-05 DC/DC converter (module) 2 A 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143653

Fast track dispatch on Thu 29 Oct

2 Piece(s)Conrad Electronic

36 V DC

18 V DC

2 A

5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

MEAN WELL SKM10B-12 DC/DC converter (module) 833 mA 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143348

Fast track dispatch on Thu 29 Oct

21 Piece(s)Conrad Electronic

36 V DC

18 V DC

833 mA

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 23.99^*

MEAN WELL SKM10B-15 DC/DC converter (module) 666 mA 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143484

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

36 V DC

18 V DC

666 mA

15 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 24.99^*

MEAN WELL SKM10C-03 DC/DC converter (module) 2.5 A 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143485

Fast track dispatch on Thu 29 Oct

2 Piece(s)Conrad Electronic

75 V DC

36 V DC

2.5 A

3.3 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 23.99^*

Documents & Downloads

Datasheet

Datasheet 2143654 MEAN WELL SKM10E-15 DC/DC converter (module) 666 mA 10 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2143654 MEAN WELL SKM10E-15 DC/DC converter (module) 666 mA 10 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2143654 MEAN WELL SKM10E-15 DC/DC converter (module) 666 mA 10 W No. of outputs: 1 x Content 1 pc(s)

Description

With the new series SKM 10 offers mean corrugated converter modules with high power density in a 1 x 1 inch miniature housing in the power range of 10 W with single-output. The DC/DC converter have an industry standard pin assignment, a wide input voltage range of 2:1, a very wide operating temperature range from -40 to +85 °C and over 1500 VDC I/O insulation. Suitable applications include IoT, electronics, telecommunications, networking, industrial control and distributed power architecture, etc.
