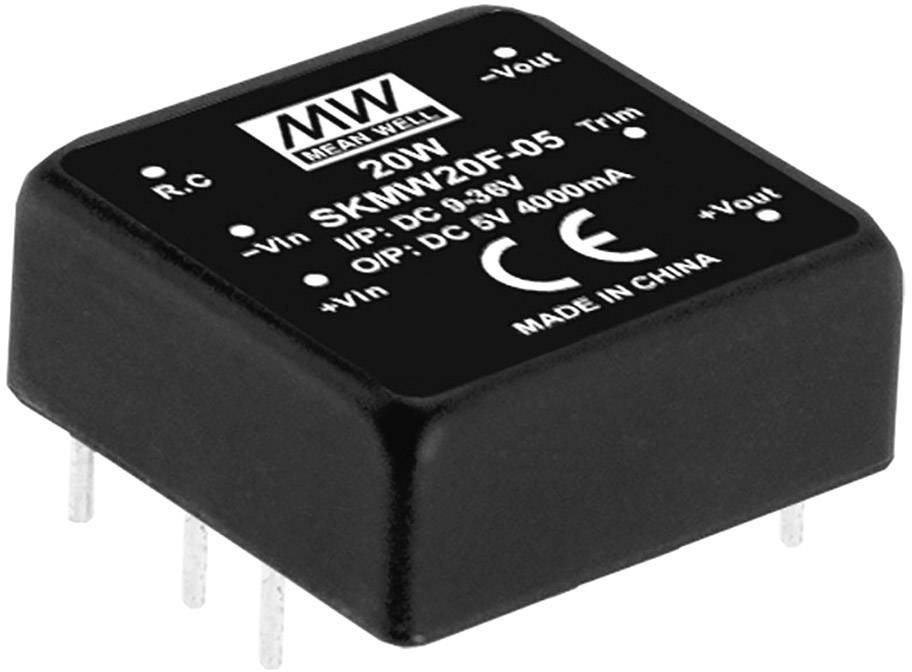

Black DC-DC converter with 'MEAN WELL' label, model 'SKMW20F-05', input range 9-36V, output 5V, 4000mA, 20W.

Black DC-DC converter with 'MEAN WELL' label, model 'SKMW20F-05', input range 9-36V, output 5V, 4000mA, 20W.

MEAN WELL

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 37.99 / piece)

€ 37.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

MEANWELL DC/DC converter module series SKMW20 DIP 1"x1" Case Single Output input voltage ratio: 4:1 Power: 20W regulated

In the DIP 1 x 1 inch housing
Input voltage range 4:1
No minimum load required
Input/output insulation 1500 V DC
Protection: short circuit (continuously), overload, over voltage, input voltage
According to EN 55032 Class A transmitted without additional components
Remote control on/Aus-Steuerung and trim mouse gear (±10%)
Efficiency up to 89%

Technical specifications

Product type: DC/DC converter

Type: SKMW20G-15

Min. input voltage: 18 V DC

Input voltage (max.): 75 V DC

No. of outputs: 1 x

Max. output current: 1.33 A

Output current (max.) - rounded: 1.33 A

Efficiency (max.): 88 %

: 20 W

Insulation voltage: 1500 V DC

Connection: Pins

PSU features: DC-to-DC converter

Operating temperature (min.): -40 °C

Operating temperature (max.): +85 °C

Dim: (L x W x H) 25.4 x 25.4 x 10.2 mm

Height: 10.2 mm

Length: 25.4 mm

Width: 25.4 mm

RoHS-compliant: Yes

Output voltage (max.): 15 V DC

Weight: 18 g

Content: 1 pc(s)

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2143384 MEAN WELL SKMW20G-15 DC/DC converter 1.33 A 20 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2143384 MEAN WELL SKMW20G-15 DC/DC converter 1.33 A 20 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2143384 MEAN WELL SKMW20G-15 DC/DC converter 1.33 A 20 W No. of outputs: 1 x Content 1 pc(s)

Description

With the new series offers mean corrugated converter modules with high power density in a 1 x 1 inch miniature housing in the power range of 20 W with single-output. The DC/DC converter have an industry standard pin assignment, a wide input voltage range of 4:1, a very wide operating temperature range from -40 to +85 °C and over 1500 VDC I/O insulation. Suitable applications include IoT, electronics, telecommunications, networking, industrial control and distributed power architecture, etc.

This text is machine translated.

Features

In the DIP 1 x 1 inch housing
Input voltage range 4:1
No minimum load required
Input/output insulation 1500 V DC
Protection: short circuit (continuously), overload, over voltage, input voltage
Remote control on/Aus-Steuerung and trim mouse gear (±10%)
Efficiency up to 89%

Description

With the new series offers mean corrugated converter modules with high power density in a 1 x 1 inch miniature housing in the power range of 20 W with single-output. The DC/DC converter have an industry standard pin assignment, a wide input voltage range of 4:1, a very wide operating temperature range from -40 to +85 °C and over 1500 VDC I/O insulation. Suitable applications include IoT, electronics, telecommunications, networking, industrial control and distributed power architecture, etc.

This text is machine translated.

Features

In the DIP 1 x 1 inch housing
Input voltage range 4:1
No minimum load required
Input/output insulation 1500 V DC
Protection: short circuit (continuously), overload, over voltage, input voltage
Remote control on/Aus-Steuerung and trim mouse gear (±10%)
Efficiency up to 89%
