Name: MEAN WELL SLC03A-15 DC/DC converter (module) 200 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Brand: MEAN WELL
SKU: 2143648
Availability: InStock

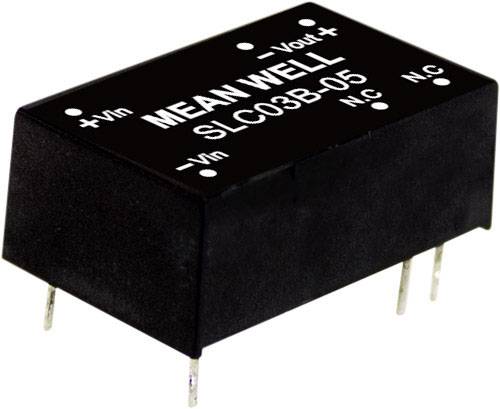

Black electrical component with the inscription 'MEAN WELL SLC03B-05', multiple connections on the underside. Function unknown.

Datasheet (PDF)

Fast track dispatch on Wed 21 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 10.99 / piece)

€ 10.99

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

MEANWELL DC/DC converter modules series SLC 03DIP/DIL 16 Case Single Output Input voltage ratio: 2:1 Power 3 W regulated

DIP 16/DIL 16 casing
For direct PCB mounting
Input voltage ratio: 2:1
Input/output insulation 1500 V
Protection: short circuit (continuously), overload and input voltage
According to EN 55032 Class B transmitted without additional components
Efficiency up to 82%

Technical specifications

Product type: DC/DC converter (module)

Type: SLC03A-15

Min. input voltage: 9 V DC

Input voltage (max.): 18 V DC

No. of outputs: 1 x

Max. output current: 200 mA

Output current (max.) - rounded: 200 mA

Efficiency (max.): 81 %

: 3 W

Insulation voltage: 1500 V DC

Connection: Pins

PSU features: DC-to-DC converter

Operating temperature (min.): -40 °C

Operating temperature (max.): +85 °C

Dim: (L x W x H) 22.1 x 13.8 x 8.55 mm

Height: 8.55 mm

Length: 22.1 mm

Width: 13.8 mm

Output voltage (max.): 15 V DC

Weight: 4.5 g

Content: 1 pc(s)

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Input voltage (max.)

Output current (max.) - rounded

Output voltage (max.)

Min. input voltage

MEAN WELL SLC03A-15 DC/DC converter (module) 200 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143648

Fast track dispatch on Wed 21 Oct

1 Piece(s)Conrad Electronic

This article

18 V DC

200 mA

15 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10.99^*

MEAN WELL SLC03A-05 DC/DC converter (module) 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143547

Fast track dispatch on Wed 21 Oct

2 Piece(s)Conrad Electronic

18 V DC

600 mA

5 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10.99^*

MEAN WELL SLC03A-12 DC/DC converter (module) 250 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143647

Fast track dispatch on Wed 21 Oct

2 Piece(s)Conrad Electronic

18 V DC

250 mA

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10.99^*

MEAN WELL SLC03B-05 DC/DC converter (module) 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143649

Fast track dispatch on Wed 21 Oct

2 Piece(s)Conrad Electronic

36 V DC

600 mA

5 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11.99^*

MEAN WELL SLC03B-12 DC/DC converter (module) 250 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143548

Fast track dispatch on Wed 21 Oct

1 Piece(s)Conrad Electronic

36 V DC

250 mA

12 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10.99^*

MEAN WELL SLC03B-15 DC/DC converter (module) 200 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143445

Dispatches on Thu 22 Oct

3 Piece(s)Conrad Electronic

36 V DC

200 mA

15 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13.99^*

MEAN WELL SLC03C-05 DC/DC converter (module) 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143549

Fast track dispatch on Wed 21 Oct

1 Piece(s)Conrad Electronic

75 V DC

600 mA

5 V DC

36 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10.99^*

MEAN WELL SLC03C-12 DC/DC converter (module) 250 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143483

Dispatches on Thu 22 Oct

18 Piece(s)Conrad Electronic

75 V DC

250 mA

12 V DC

36 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13.99^*

MEAN WELL SLC03C-15 DC/DC converter (module) 200 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143359

Fast track dispatch on Wed 21 Oct

1 Piece(s)Conrad Electronic

75 V DC

200 mA

15 V DC

36 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10.99^*

Documents & Downloads

Datasheet

Datasheet 2143648 MEAN WELL SLC03A-15 DC/DC converter (module) 200 mA 3 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2143648 MEAN WELL SLC03A-15 DC/DC converter (module) 200 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2143648 MEAN WELL SLC03A-15 DC/DC converter (module) 200 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Description

MEAN CORRUGATED expands its range of 3W DC/DC converters with single-output to the series SLC 03 in the DIP16 casing.
In addition to a wide input range of 2:1 and an extremely wide operating temperature range from -40 to +90 °C, are you with 1500 V DC I/O insulation. Suitable applications include IoT, electronics, telecommunications, networking, industrial control and distributed power architecture.

This text is machine translated.
