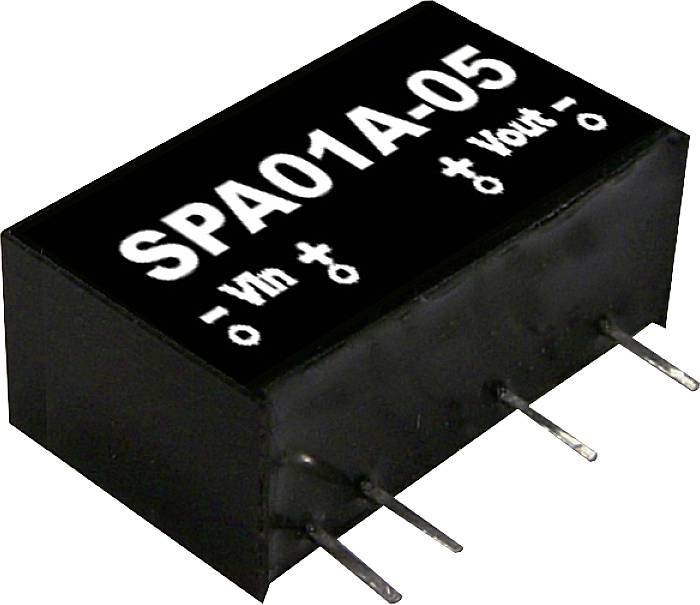

MEAN WELL SPA01A-05 DC/DC converter (module) 200 mA 1 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 8.49 / piece)
€ 8.49
incl. VAT
Only 7 Piece(s) available
Highlights & Details
MEANWELL DC/DC converter modules series SPA 01 SIP/SIL 6 Case Single Output Input voltage ratio: 2:1 Power: 1 W
- In the SIP/SIL6-casing
- For direct PCB mounting
- Input/output insulation 1500 V
- Built-in EMI filter without external components
- Cooling by free air convection
- Regulated output voltage
- This text is machine translated.
Technical specifications
- Product type
DC/DC converter (module)
- Type
SPA01A-05
- Min. input voltage
9 V DC
- Input voltage (max.)
18 V DC
- No. of outputs
1 x
- Max. output current
200 mA
- Output current (max.) - rounded
200 mA
- Efficiency (max.)
77 %
1 W
- Insulation voltage
1500 V DC
- Connection
Pins
- PSU features
DC-to-DC converter
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+90 °C
- Dim
(L x W x H) 17.4 x 7.75 x 11.1 mm
- Height
11.1 mm
- Length
17.4 mm
- Width
7.75 mm
- Output voltage (max.)
5 V DC
- Output current (min.)
20 mA
- Weight
3 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2143511 MEAN WELL SPA01A-05 DC/DC converter (module) 200 mA 1 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2143511 MEAN WELL SPA01A-05 DC/DC converter (module) 200 mA 1 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 2143511 MEAN WELL SPA01A-05 DC/DC converter (module) 200 mA 1 W No. of outputs: 1 x Content 1 pc(s)
Description
Features
- In the SIP/SIL6-casing
- For direct PCB mounting
- Input/output insulation 1500 V
- Cooling by free air convection
- Regulated output voltage
