Name: MEAN WELL SPU01M-12 DC/DC converter (module) 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)
Brand: MEAN WELL
SKU: 2143439
Availability: InStock

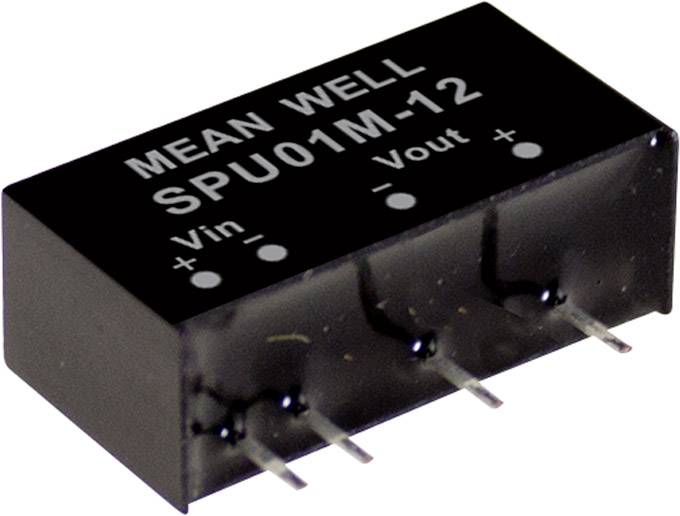

A small, black electronic component with the marking 'MEAN WELL SPU01M-12', showing three pins for Vin +, Vin -, Vout +.

Datasheet (PDF)

Dispatches on Fri 16 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 5.49 / piece)

€ 5.49

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

MEANWELL DC/DC converter modules series SPU01 SIP/SIL 6 Case Single Output Input voltage ratio: 1:1 Power: 1 W Unregulated

In the SIP/SIL6-casing
For direct PCB mounting
Input/output insulation 1500 V
According to EN 55032 Class A transmitted without additional components
Efficiency up to 84%
Circuit breaker
Low Cost

Technical specifications

Product type: DC/DC converter (module)

Type: SPU01M-12

Min. input voltage: 10.8 V DC

Input voltage (max.): 13.2 V DC

No. of outputs: 1 x

Max. output current: 84 mA

Output current (max.) - rounded: 84 mA

Efficiency (max.): 83 %

: 1 W

Insulation voltage: 1500 V DC

Connection: Pins

PSU features: DC-to-DC converter

Operating temperature (min.): -40 °C

Operating temperature (max.): +90 °C

Dim: (L x W x H) 19.5 x 6.1 x 10.2 mm

Height: 10.2 mm

Length: 19.5 mm

Width: 6.1 mm

Output voltage (max.): 12 V DC

Weight: 1.8 g

Content: 1 pc(s)

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Input voltage (max.)

Output current (max.) - rounded

Min. input voltage

MEAN WELL SPU01M-12 DC/DC converter (module) 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143439

Dispatches on Fri 16 Oct

5 Piece(s)Conrad Electronic

This article

13.2 V DC

84 mA

10.8 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.49^*

MEAN WELL SPU01L-12 DC/DC converter (module) 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143606

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

5.5 V DC

84 mA

4.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3.79^*

MEAN WELL SPU01L-15 DC/DC converter (module) 67 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143385

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

5.5 V DC

67 mA

4.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3.49^*

MEAN WELL SPU01M-05 DC/DC converter (module) 200 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143607

Fast track dispatch on Wed 14 Oct

1 Piece(s)Conrad Electronic

13.2 V DC

200 mA

10.8 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.49^*

MEAN WELL SPU01M-15 DC/DC converter (module) 67 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143513

Dispatches on Fri 16 Oct

9 Piece(s)Conrad Electronic

13.2 V DC

67 mA

10.8 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.49^*

MEAN WELL SPU01N-05 DC/DC converter (module) 200 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143514

Fast track dispatch on Wed 14 Oct

14 Piece(s)Conrad Electronic

26.4 V DC

200 mA

21.6 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3.79^*

MEAN WELL SPU01L-05 DC/DC converter (module) 200 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143344

Unavailable

Conrad Electronic

5.5 V DC

200 mA

4.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3.49^*

MEAN WELL SPU01N-12 DC/DC converter (module) 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143440

Unavailable

Conrad Electronic

26.4 V DC

84 mA

21.6 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3.49^*

MEAN WELL SPU01N-15 DC/DC converter (module) 67 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143608

Unavailable

Conrad Electronic

26.4 V DC

67 mA

21.6 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3.49^*

Documents & Downloads

Datasheet

Datasheet 2143439 MEAN WELL SPU01M-12 DC/DC converter (module) 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2143439 MEAN WELL SPU01M-12 DC/DC converter (module) 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2143439 MEAN WELL SPU01M-12 DC/DC converter (module) 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Description

With the launch of eight new series of unsettled (SPU 01, DPU01) and regulated DC/DC converters (02, 02, 03, 03, SPBW DPBW SPBW DPAN06 and DPBW06) in the area of up to 10 W now offers mean corrugated a complete range of power supply solutions. These eight series are designed so that a standard SIP Pin assignment. In addition to a wide input range (2:1 and 4:1) and a wide operating temperature range from -40 up to +90 °C, all with 1500 V DC I/O insulation. Suitable applications include IoT, electronics, telecommunications, networking, industrial control and distributed power architecture.

This text is machine translated.
