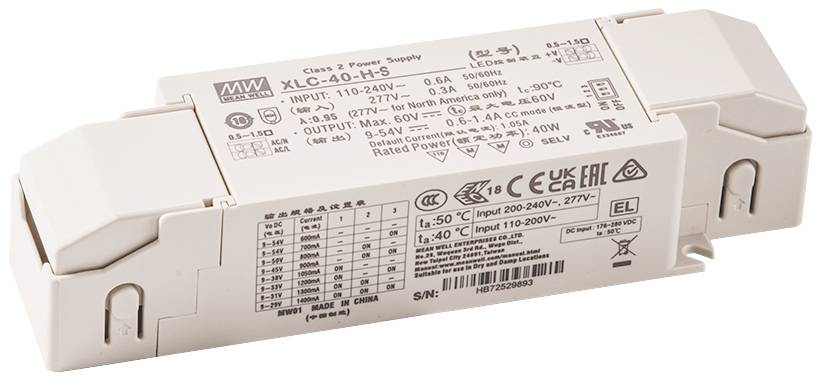

MEAN WELL XLC-40-H-S LED driver Constant power 40.0 W 0.6 - 1.4 A 9 - 54 V not dimmable, PFC circuit, adjustable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
XLC-40-H-S
- Constant power
- 9 - 54 V
- 0.6 - 1.4 A
Technical specifications
- XLC-40 series
- Application: Lighting
- Dimensions: Length 107 mm
- Dimensions: Width 40 mm
- Dimensions: Height 32 mm
- Weight: 252 g
- Identification: MM characters; SELV
- Min. Operating temperature -25 °C
- Max. operating temperature: 90 °C
- Storage temperature, min.: -40 °C.
- Storage temperature, max. 80 °C
- Min. Network frequency: 47 Hz
- Network frequency max. 63 Hz
- Min. Input voltage AC 100 V
- Max. Input voltage AC 305 V
- Min. Input voltage DC 141 V.
- Max. Input voltage DC 431 V.
- Input current 0.25 A
- Efficiency 88 %
- Idle power, less than 0.5 W
- Leakage current, max. 0.75 mA
- Inrush current, max. 10 A
- Power factor correction (PFC): 1
- Power factor 0.95
- Connector type, input: Plug-in terminal
- Number of outputs 1
- Power output: 40 W
- Overload protection 0
- Short circuit protection 1
- Overvoltage protection 0
- Overtemperature protection 1
- Connector type, output: Plug-in terminal
- Protection class: II
- INSULATION VOLTAGE I/P-O/P 3,750 V
- APPROVALS CE, RCM, IEC, EAC, CCC,ENEC,EN,UKCA
- Standards (EMC) EN 55015
- Standards (security): EN 61347-1, EN 61347-2-13, IEC 61347-1, IEC 61347-2-13
- REACH-SVHC: No.
- WEEE (waste electronics): No.
- RoHS R - RoHS compliant
- Operating mode CP
- Dimmable:0
- Interfaces: Cannot be dimmed
- Number of max. B16 circuit breaker: 51
- Number of max. at C16 Circuit breaker: 51
- Output voltage min.: 9 V
- Output voltage max. 54 V
- Output current selectable: 1
- Selectable output currents (A): 0.6; 0.7; 0.8; 0.9; 1.05; 1.2; 1.3; 1.4
- Output current min. 0.6 A
- Output current max. 1.4 A
- Output current tolerance -5 - 5 %
- Remaining current ripple 4%
- Product type
LED driver
- Type
Constant power
- Dim
(L x W x H) 107.0 x 40.0 x 32.0 mm
- Output voltage (max.)
54 V
- Output voltage (min.)
9 V
- Test mark
MM-Zeichen; SELV; CE; RCM; IEC; EAC; CCC; ENEC; EN; UKCA
- Max. output current
1.4 A
- Output current (max.) - rounded
1.4 A
- Protection class
II
- LED driver features
not dimmable
PFC circuit
adjustable
- Connection
Plug & Clip
- Max. power
40.0 W
- No. of outputs
1 x
- Output current (min.)
0.6 A
- Input voltage (max.)
305 V
- Min. input voltage
100 V
- Weight
252.0 g
- Power range
40.0 W (max)
- Width
40.0 mm
- Height
32.0 mm
- Length
107.0 mm
- Max. temperature
90 °C
- Min. temperature
-25 °C
- Operating temperature (max.)
90 °C
- Operating temperature (min.)
-25 °C
- I/O voltage high
54 V
- Input voltage
431 V
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3164328 MEAN WELL XLC-40-H-S LED driver Constant power 40.0 W 0.6 - 1.4 A 9 - 54 V not dimmable, PFC circuit, adjustable 1 pc(s)
Datasheet 3164328 MEAN WELL XLC-40-H-S LED driver Constant power 40.0 W 0.6 - 1.4 A 9 - 54 V not dimmable, PFC circuit, adjustable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3164328 MEAN WELL XLC-40-H-S LED driver Constant power 40.0 W 0.6 - 1.4 A 9 - 54 V not dimmable, PFC circuit, adjustable 1 pc(s)
Warranty Terms
Warranty Terms 3164328 MEAN WELL XLC-40-H-S LED driver Constant power 40.0 W 0.6 - 1.4 A 9 - 54 V not dimmable, PFC circuit, adjustable 1 pc(s)
Description
DC-enabled, flicker-free, emergency light control device, independent operating device, output current can be selected
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
