MEAN WELL XLC-60-H-N LED driver Constant current 60.0 W 0.9 - 1.7 A 9 - 54 V PFC circuit, not dimmable, adjustable 1 pc(
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

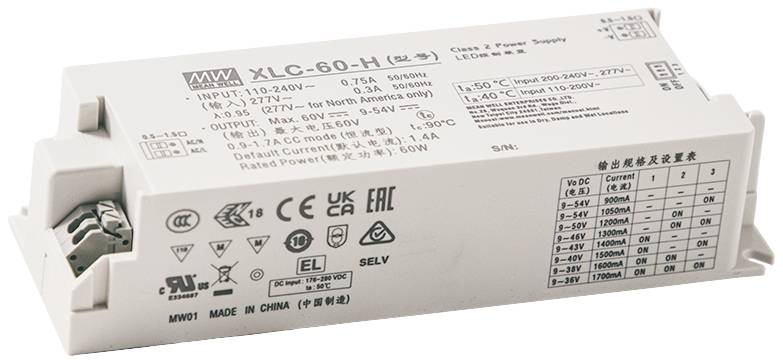

Mean Well XLC-60 LED-SNT plastic case
- Constant current
- 9 - 54 V
- 0.9 - 1.7 A
Technical specifications
- XLC-60 series
- Application: Lighting
- Dimensions: Length 136 mm
- Dimensions: Width 45 mm
- Dimensions: Height 32 mm
- Weight: 390 g
- Identification: MM characters; SELV
- Min. Operating temperature -25 °C
- Max. operating temperature: 90 °C
- Storage temperature, min.: -40 °C.
- Storage temperature, max. 80 °C
- Min. Network frequency: 47 Hz
- Network frequency max. 63 Hz
- Min. Input voltage AC 110 V
- Max. Input voltage AC 305 V
- Min. Input voltage DC 155 V.
- Max. Input voltage DC 431 V.
- Input current 0.35 A
- Efficiency 90 %
- Idle power, less than 0.5 W
- Leakage current, max. 0.75 mA
- Inrush current, max. 0.35 A
- Power factor correction (PFC): 1
- Power factor 0.95
- Connector type, input: Plug-in terminal
- Number of outputs 1
- Power output: 60 W
- Overload protection 0
- Short circuit protection 1
- Overvoltage protection 0
- Overtemperature protection 1
- Connector type, output: Plug-in terminal
- Protection class: II
- INSULATION VOLTAGE I/P-O/P 3,750 V
- APPROVALS CE, IEC, RCM, EN, UKCA, EAC, CCC,ENEC
- Standards (EMC) EN 55015
- Standards (security): EN 61347-1, EN 61347-2-13, IEC 61347-1, IEC 61347-2-13
- REACH-SVHC: No.
- WEEE (waste electronics): No.
- RoHS R - RoHS compliant
- Operating mode CP
- Dimmable:0
- Interfaces: Cannot be dimmed
- Number of max. B16 circuit breaker: 25
- Number of max. at C16 Circuit breaker: 36
- Output voltage min.: 9 V
- Output voltage max. 54 V
- Output current selectable: 1
- Selectable output currents (A): 0;9, 1;05, 1.2; 1.3; 1.4; 1.5; 1.6; 1.7
- Output current min. 0.9 A
- Output current max. 1.7 A
- Output current tolerance -5 - 5 %
- Remaining current ripple 4%
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 136.0 x 45.0 x 32.0 mm
- Output voltage (max.)
54 V
- Output voltage (min.)
9 V
- Test mark
CE.IEC.RCM.EN.UKCA.EAC.CCC.ENEC
- Max. output current
1.7 A
- Output current (max.) - rounded
1.7 A
- Protection class
II
- LED driver features
PFC circuit
not dimmable
adjustable
- Connection
Plug & Clip
- Max. power
60.0 W
- No. of outputs
1 x
- Output current (min.)
0.9 A
- Input voltage (max.)
305 V
- Min. input voltage
110 V
- Weight
390.0 g
- Power range
60.0 W (max)
- Width
45.0 mm
- Height
32.0 mm
- Length
136.0 mm
- Max. temperature
90 °C
- Min. temperature
-25 °C
- Operating temperature (max.)
90 °C
- Operating temperature (min.)
-25 °C
- I/O voltage high
54 V
- Input voltage
431 V
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3164358 MEAN WELL XLC-60-H-N LED driver Constant current 60.0 W 0.9 - 1.7 A 9 - 54 V PFC circuit, not dimmable, adjustable 1 pc(
Datasheet 3164358 MEAN WELL XLC-60-H-N LED driver Constant current 60.0 W 0.9 - 1.7 A 9 - 54 V PFC circuit, not dimmable, adjustable 1 pc(
User & Safety Instructions
User & Safety Instructions 3164358 MEAN WELL XLC-60-H-N LED driver Constant current 60.0 W 0.9 - 1.7 A 9 - 54 V PFC circuit, not dimmable, adjustable 1 pc(
Warranty Terms
Warranty Terms 3164358 MEAN WELL XLC-60-H-N LED driver Constant current 60.0 W 0.9 - 1.7 A 9 - 54 V PFC circuit, not dimmable, adjustable 1 pc(
Description
DC-enabled, flicker-free, emergency light operating device, output current can be selected, NFC function
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
