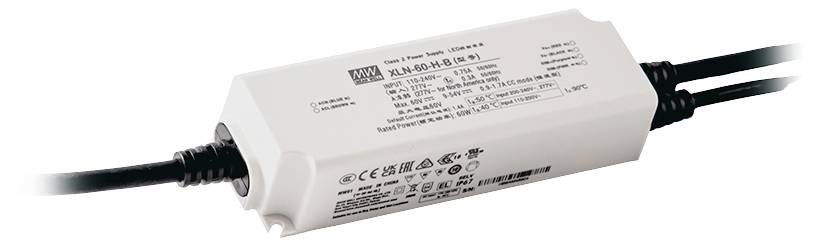

MEAN WELL XLN-60-12-DA2 LED driver Constant voltage 60.0 W 5 A 12 V PFC circuit 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
XLN-60-12-DA2
- Constant voltage
- 12 V
- 5 A
Technical specifications
- XLN-60 series
- Application: Lighting
- Dimensions: Length 141.5 mm
- Dimensions: Width 49 mm
- Dimensions: Height 32 mm
- Weight: 524 g
- Identification: MM-characters;SELV
- Min. Operating temperature -25 °C
- Max. operating temperature: 90 °C
- Storage temperature, min.: -40 °C.
- Storage temperature, max. 80 °C
- Min. Network frequency: 47 Hz
- Network frequency max. 63 Hz
- Min. Input voltage AC 110 V
- Max. Input voltage AC 305 V
- Min. Input voltage DC 155 V.
- Max. Input voltage DC 431 V.
- Input current 0.35 A
- Efficiency 86 %
- Leakage current, max. 0.75 mA
- Inrush current, max. 15 A
- Power factor correction (PFC): 1
- Power factor 0.95
- Connection type, input: Stranded wire
- Number of outputs 1
- Power output: 60 W
- Output voltage 12 V
- Output current: 5 A
- Overload protection 1
- Overload protection version: Hiccup
- Short circuit protection 1
- Overvoltage protection 1
- Overtemperature protection 1
- Connection type, output: Stranded wire
- Protection class: II
- INSULATION VOLTAGE I/P-O/P 3,750 V
- APPROVALS CE, IEC, UKCA, EAC, CCC,ENEC,EN,UL,RCM
- Standards (EMC) EN 55015
- Standards (security): EN 61347-1, EN 61347-2-13, IEC 61347-1, IEC 61347-2-13, IEC 62368-1
- REACH-SVHC: No.
- WEEE (waste electronics): No.
- Length of feed line, output 15 cm
- Protection class/IP IP67
- RoHS R - RoHS compliant
- Operating mode CV
- Dimmable:1
- Dali-2, push-DIMM interfaces
- Power consumption in networked standby mode (pnet), less than: 0.5 W.
- Number of max. B16 circuit breaker: 25
- Number of max. at C16 Circuit breaker: 36
- Output current selectable: 0
- Product type
LED driver
- Type
Constant voltage
- Operating current
0.35 A
- Dim
(L x W x H) 141.5 x 49.0 x 32.0 mm
- Output voltage (max.)
12 V
- Test mark
MM-Zeichen
- Max. output current
5 A
- Output current (max.) - rounded
5 A
- Protection class
II
- LED driver features
PFC circuit
IP67
- Connection
Braid
- Max. power
60.0 W
- No. of outputs
1 x
- Input voltage (max.)
305 V
- Min. input voltage
110 V
- Weight
524.0 g
- Power range
60.0 W (max)
- Width
49.0 mm
- Height
32.0 mm
- Length
141.5 mm
- Max. temperature
90 °C
- Min. temperature
-25 °C
- Operating temperature (max.)
90 °C
- Operating temperature (min.)
-25 °C
- Input voltage
431 V
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3164373 MEAN WELL XLN-60-12-DA2 LED driver Constant voltage 60.0 W 5 A 12 V PFC circuit 1 pc(s)
Datasheet 3164373 MEAN WELL XLN-60-12-DA2 LED driver Constant voltage 60.0 W 5 A 12 V PFC circuit 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3164373 MEAN WELL XLN-60-12-DA2 LED driver Constant voltage 60.0 W 5 A 12 V PFC circuit 1 pc(s)
Warranty Terms
Warranty Terms 3164373 MEAN WELL XLN-60-12-DA2 LED driver Constant voltage 60.0 W 5 A 12 V PFC circuit 1 pc(s)
Description
DC-enabled, flicker-free, emergency light control device, independent operating device
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
