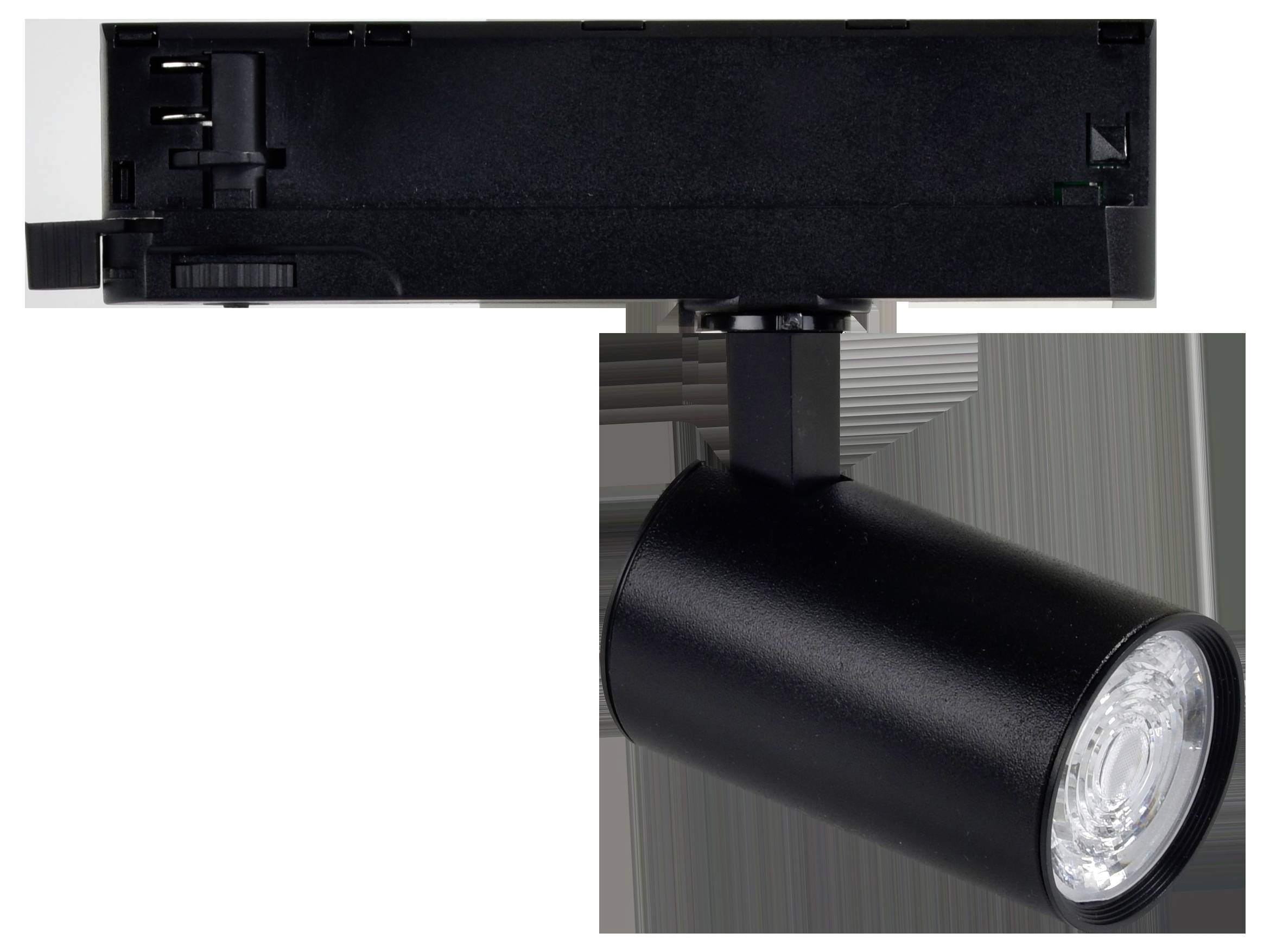

Name: Megaman MM78836 LED track spotlight 3-phase Bulb cannot be changed 12 W LED (monochrome) Black
Brand: Megaman
SKU: 3549070

Highlights & Details

Megaman LED-track emitter 940 black MM78836

Power= 12 W Total luminous flux= 1550 lm Colour temperature= 4000 K White

Technical specifications

Width 50 mm
Number of pins: 5
Protection class (IP) IP20
Surface protection: Powder-coated
Protection class: II
Material of housing: Aluminium
Nominal voltage 220..240 V
Nominal current 65 mA
Connection type: Bus bar adapter
Voltage type AC
Bulb: LED not replaceable
Radiation angle: Medium radiation 21-40°
Operating device: Not required
Energy efficiency class of light source according to EU directive 2019/2015: Not required
Light color: White
Constant luminous flux regulation: Yes
Colour temperature: 4000 K
Color Rendering Index CRI: 90-100
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: Levels
Height/depth 150 mm
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
Suitable for mounting on a panel: No.
Suitable for panel mounting: No.
Suitable for wall mounting: No.
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: No.
Suitable for traverse installation: No.
Suitable for cable system: No.
Adjustable: Rotation and swivel
With motion detector: No.
With light sensor: No.
With bulb: Yes
Suitable for the number of bulbs: 1
Black enclosure
Surface brushed: No.
With operating device: No.
Removable operating device: No.
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: No.
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimming function: Yes
Reflector: High-gloss
Light distribution: Symmetric
Light emission: Direct
Suitable for lamp output 12 W
Max. System power 12 W
Luminous flux: 1550 lm
Rated light current according to IEC 62722-2-1: 1550 lm
Covering of the lamp with thermal insulation material is possible: No.
Operation via Bluetooth: No.
Suitable for screen workstations according to EN 12464-1: No.
Cover material: Transparent plastic
Light distributor: Reflector
Color consistency (McAdam ellipse): SDCM3
Rated ambient temperature according to IEC62722-2-1: -30..40°C.
Light output 130 lm/W
Power factor 0.9
Suitable for pedestal-/floor mounting: No.
Suitable for rail mounting: Yes
Suitable for clamp mounting: No.
Reflector color: Silver
Rated life L70/B50 at 25 °C: 50000 h
Light intensity 5500 cd

Product type: LED track spotlight

Series: 3-phase

No. of bulbs: 1

: Bulb cannot be changed

Bulb type: LED (monochrome)

Rating per bulb: 12 W

: 12 W

: 4000 K

Colour: White

: 1550 lm

Total luminous flux: 1550 lm

Light features: Pivoted

Rotation range (max.): 330°

Swivel range (max.): 90°

Protection class: II

Test mark: ENEC

Factory colour: Black

Material: Aluminium

: n.rel.

Width: 50 mm

Height: 150 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3549070 Megaman MM78836 LED track spotlight 3-phase Bulb cannot be changed 12 W LED (monochrome) Black

Description

MM78836 track spotlight black Megaman MARCO 2 mini DBT 12W/940. Face lift of the mini-rail spotlight with adjustable beam angle (DBT) in a lamp. 1550lm at 4000K. Brightness at 5.500cd at 24° or 2.650cd at 36°. Very good color reproduction CRI 90. High color consistency SDCM=3. Integrated LED light source with 130lm/W. Service life 50,000 hours (L70/B50 at Ta25°C).
ENEC-certified driver in bus bar adapter for optimum thermal decoupling of the lamp. Lamp head can be rotated by 90° and rotated by 330°. Black front ring for side glare Universal adapter for 3-phase power rails compatible with ERCO, Eutrac, global track, iGuzzini, Ivela, Power gear, Stucci, Unipro, Zumtobel Material: Die-cast aluminum, plastic. Matt black case.
At any time the optimum radiation angle: In the case of all MARCO emitters with integrated Dual beam technology (DBT) one adjusts the angle of radiation flexibly without technical modification or lamp replacement. Simply press on the front glass and the lamp changes between normal and focused lighting. Value for every customer. Super-practical for the plumber: Always the suitable light to hand.
