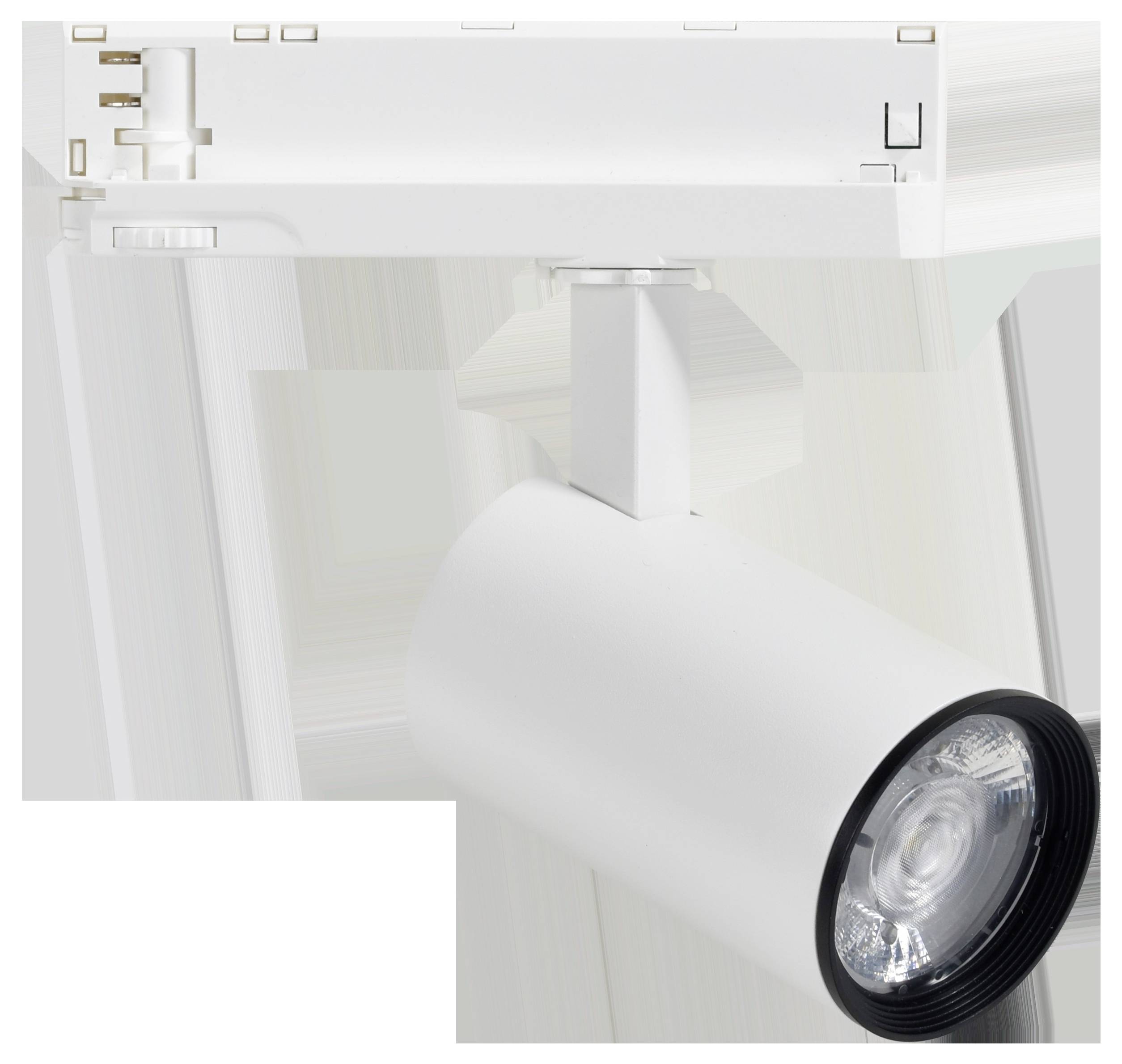

Megaman MM78853 LED track spotlight Bulb cannot be changed 22 W LED (monochrome) White
EAN:
Part number:
Item no:
Highlights & Details
Megaman LED-track emitter 940, white MM78853
- Power= 22 W Total luminous flux= 2750 lm Colour temperature= 4000 K White
Technical specifications
- Width 65 mm
- Number of pins: 5
- Protection class (IP) IP20
- Surface protection: Powder-coated
- Protection class: II
- Material of housing: Aluminium
- Length: 190 mm
- Nominal voltage 220..240 V
- Nominal current: 100 mA
- Connection type: Bus bar adapter
- Voltage type AC
- Bulb: LED not replaceable
- Radiation angle: Variable radiation angle
- Operating device: Not required
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Constant luminous flux regulation: Yes
- Colour temperature: 4000 K
- Color Rendering Index CRI: 90-100
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: Levels
- Height/depth 65 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on a panel: No.
- Suitable for panel mounting: No.
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- Suitable for traverse installation: No.
- Suitable for cable system: No.
- Adjustable: Rotation and swivel
- With motion detector: No.
- With light sensor: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Housing color: White
- Surface brushed: No.
- With operating device: No.
- Removable operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes
- Reflector: High-gloss
- Light distribution: Symmetric
- Light emission: Direct
- Suitable for lamp output 22 W
- Max. System power 22 W
- Luminous flux: 2750 lm
- Rated light current according to IEC 62722-2-1: 2750 lm
- Covering of the lamp with thermal insulation material is possible: No.
- Operation via Bluetooth: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Cover material: Transparent plastic
- Light distributor: Reflector
- Color consistency (McAdam ellipse): SDCM3
- Rated ambient temperature according to IEC62722-2-1: -30..40°C.
- Integrated emergency power supply: No.
- Light output 125 lm/W
- Power factor 0.9
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: Yes
- Suitable for clamp mounting: No.
- Reflector color: Silver
- Rated life L70/B50 at 25 °C: 50000 h
- Light intensity 13000 cd
- Product type
LED track spotlight
- No. of bulbs
1
Bulb cannot be changed
- Bulb type
LED (monochrome)
- Rating per bulb
22 W
22 W
4000 K
- Colour
White
2750 lm
- Total luminous flux
2750 lm
- Max. length
190 mm
- Light features
Swivelling
- Rotation range (max.)
330°
- Swivel range (max.)
90°
- Protection class
II
- Test mark
ENEC
- Factory colour
White
- Material
Aluminium
n.rel.
- Width
65 mm
- Height
65 mm
- Length
190 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3550596 Megaman MM78853 LED track spotlight Bulb cannot be changed 22 W LED (monochrome) White
Description
MM78853 track spotlight white Megaman MARCO 2 MIDI DBT 22W/940. Face lift of the compact rail spotlight with adjustable beam angle (DBT) in a lamp. 2750lm at 6000K. Intensity at 13.000cd at 25° or 4.300cd at 45°. Very good color reproduction CRI 90. High color consistency SDCM=3. Integrated LED light source with 120lm/W. Service life 50,000 hours (L70/B50 at Ta25°C).
ENEC-certified driver in bus bar adapter for optimum thermal decoupling of the lamp. Lamp head can be rotated by 90° and rotated by 330°. Black front ring for side glare Universal adapter for 3-phase power rails compatible with ERCO, Eutrac, global track, iGuzzini, Ivela, Power gear, Stucci, Unipro, Zumtobel Material: Die-cast aluminum, plastic. Matt white housing.
At any time the optimum radiation angle: In the case of all MARCO emitters with integrated Dual beam technology (DBT) one adjusts the angle of radiation flexibly without technical modification or lamp replacement. Simply press on the front glass and the lamp changes between normal and focused lighting. Value for every customer. Super-practical for the plumber: Always the suitable light to hand.
This text is machine translated.
ENEC-certified driver in bus bar adapter for optimum thermal decoupling of the lamp. Lamp head can be rotated by 90° and rotated by 330°. Black front ring for side glare Universal adapter for 3-phase power rails compatible with ERCO, Eutrac, global track, iGuzzini, Ivela, Power gear, Stucci, Unipro, Zumtobel Material: Die-cast aluminum, plastic. Matt white housing.
At any time the optimum radiation angle: In the case of all MARCO emitters with integrated Dual beam technology (DBT) one adjusts the angle of radiation flexibly without technical modification or lamp replacement. Simply press on the front glass and the lamp changes between normal and focused lighting. Value for every customer. Super-practical for the plumber: Always the suitable light to hand.
This text is machine translated.
