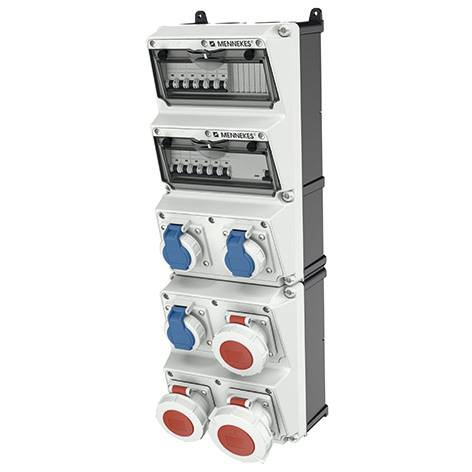

MENNEKES CEE power distributor 950030 950030
EAN:
Part number:
Item no:
Highlights & Details
MENNEKES 950030 socket type F blue, red, white
- Type F Number of sockets: 6 blue, red, white
- Housing material: Plastic
- IP67
- 5-P
- Frame (range)
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
3
- Type A
CEE socket (5-pin, 16 A)
CEE socket (5-pin, 16 A)
CEE socket (5-pin, 32 A)
PG socket
PG socket
PG socket
- No. of PG sockets
3
- Nominal output voltage
400 V
IP67
- Factory colour
Blue
Red
White
- Weight
8.97 kg
- Dim
(W x H) 225 mm x 650 mm
- Width
225 mm
- Height
650 mm
- Content
1 pc(s)
- Material (details)
Plastic
- Wi-Fi
No
- UKCA
not relevant
- Sockets quantity
6
- Rated voltage
230 - 400 V
- Quantity per pack
1 Stück(e)
- Rated current
32 A
- Frame
yes
- Smart socket-outlet
no
- On/off switch
no
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3795747 MENNEKES CEE power distributor 950030 950030
Description
AMAXX socket combination, IP67
This text is machine translated.
This text is machine translated.
Features
- wired as ready to connect
- side hinge
- Housing and tin insert made from AMAPLAST®
- Security under transparent actuation flap
