Metabo 614216850 Cordless chopsaw w/o battery, w/o charger 216 mm 30 mm

Metabo compound miter saw with circular blade, sliding arm, clamp, and angle scale, shown on a white background.

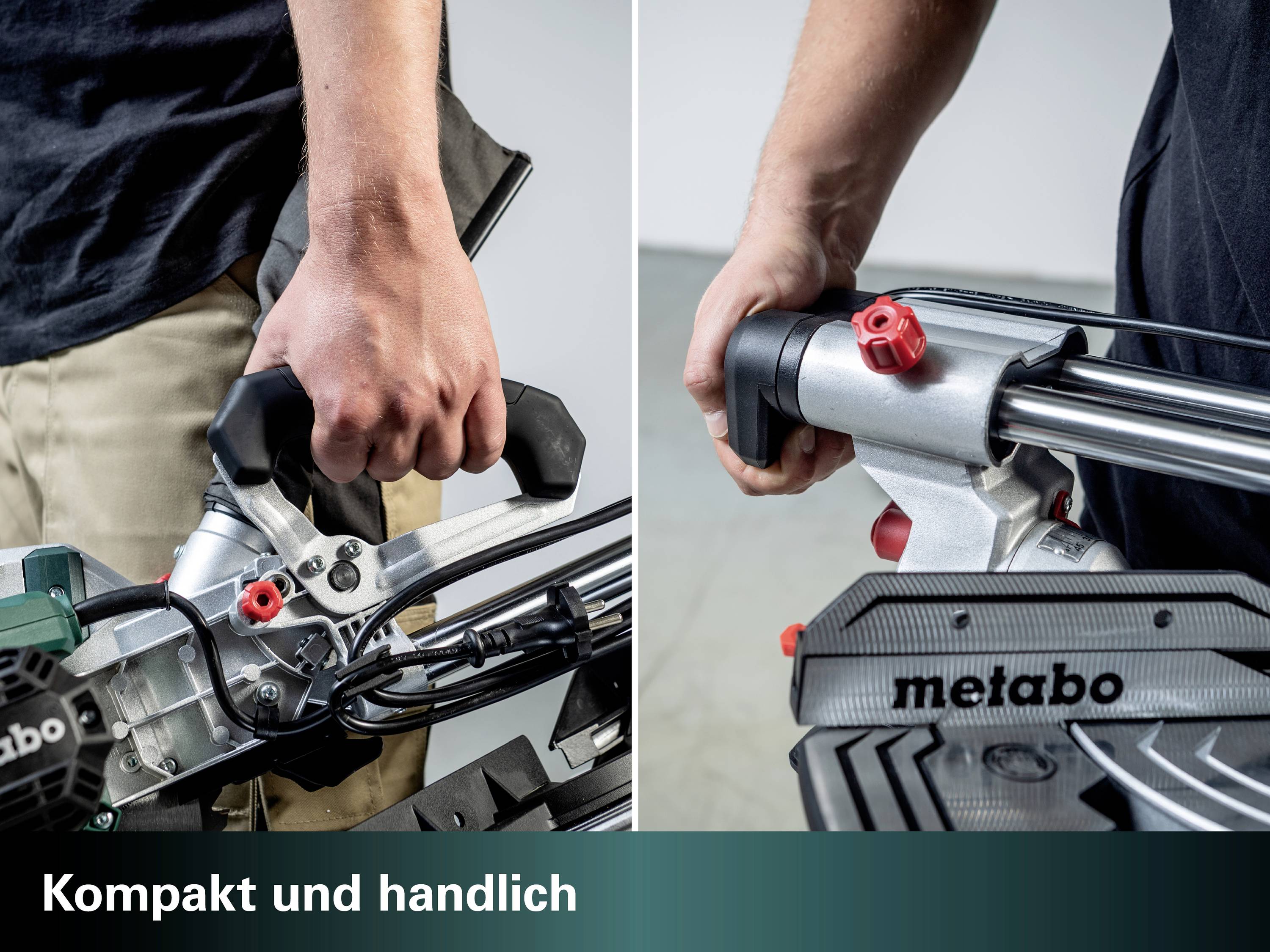

'Compact and handy' shows a person holding a compact and portable saw by the Metabo brand.

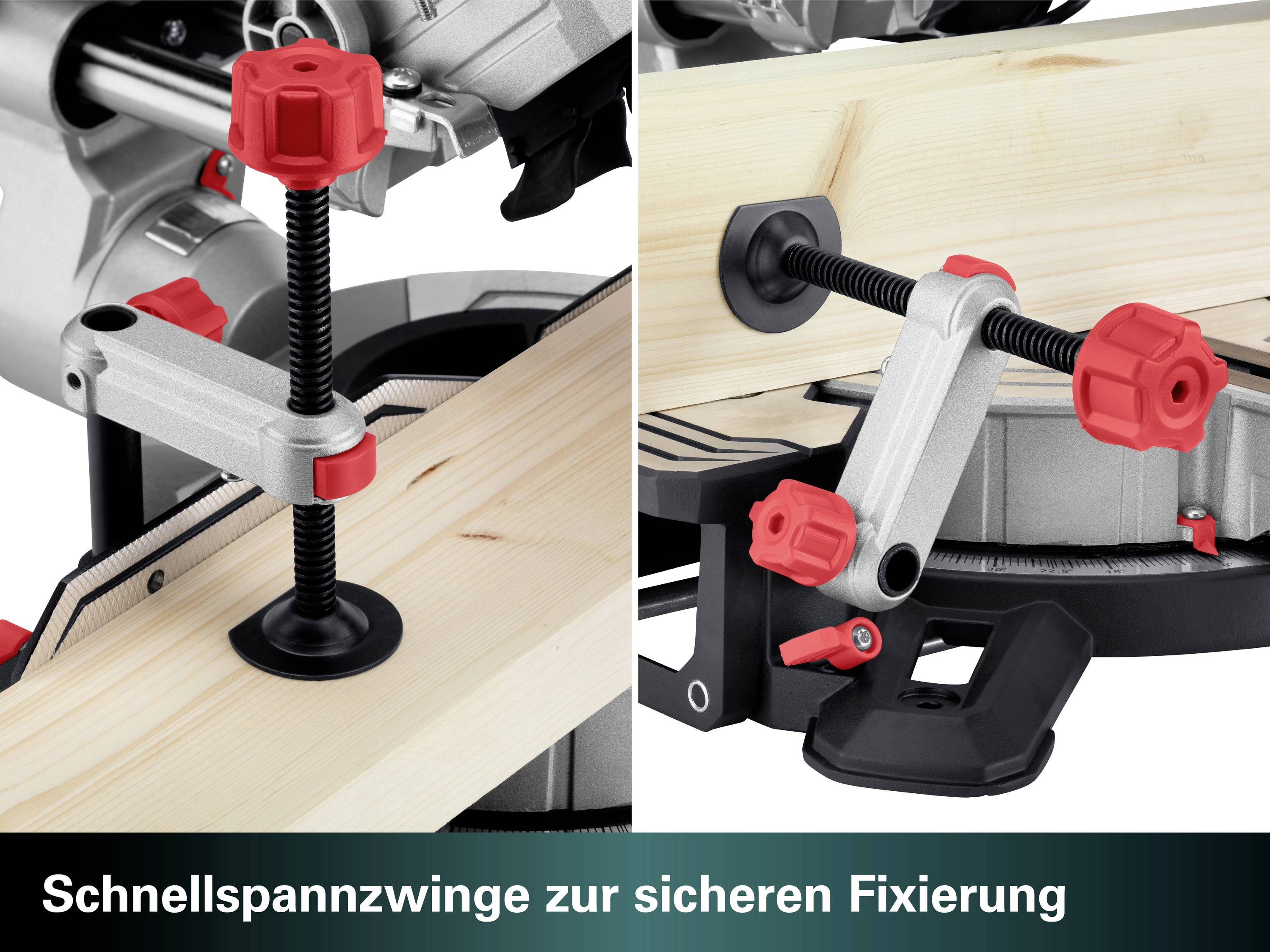

Quick-release clamp for secure fixation: Two images show how a quick-release clamp secures wooden pieces on a cutting machine.

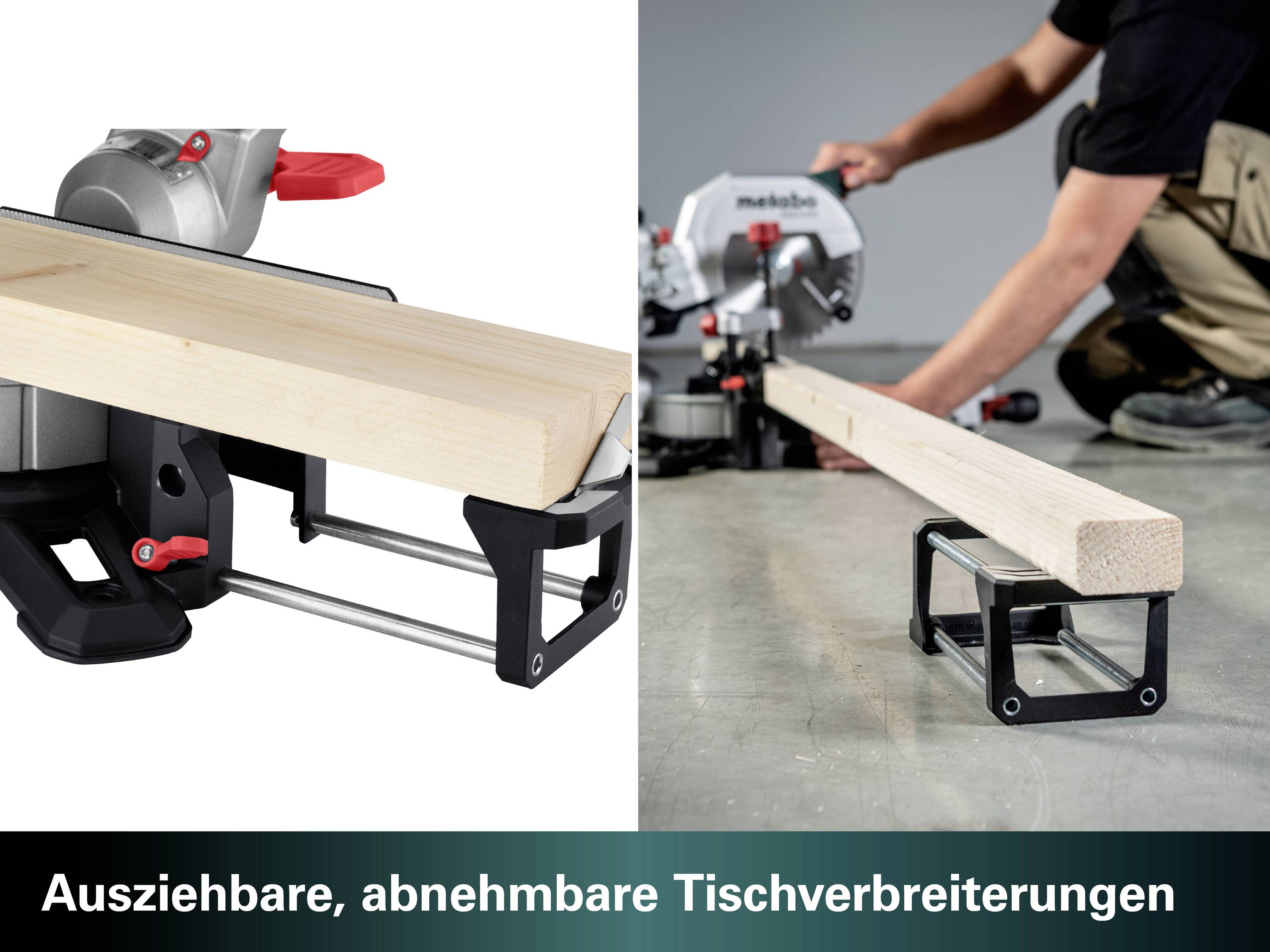

'Makita machine with extendable, removable table extensions for working with long pieces of wood. Person adjusting equipment.'

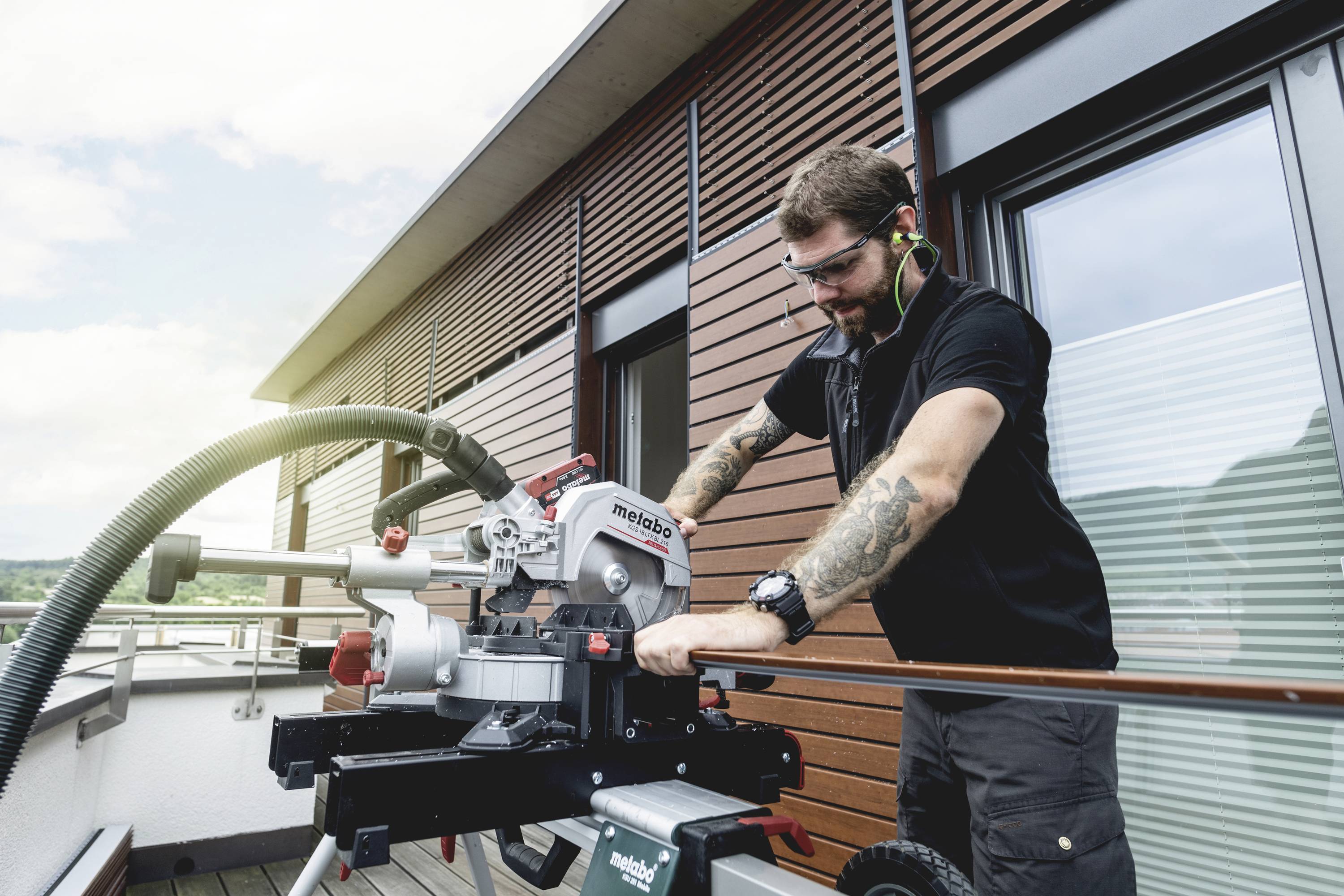

A man wearing safety glasses operates an electric mitre saw on a terrace to cut wooden batons. A modern building is visible in the background.

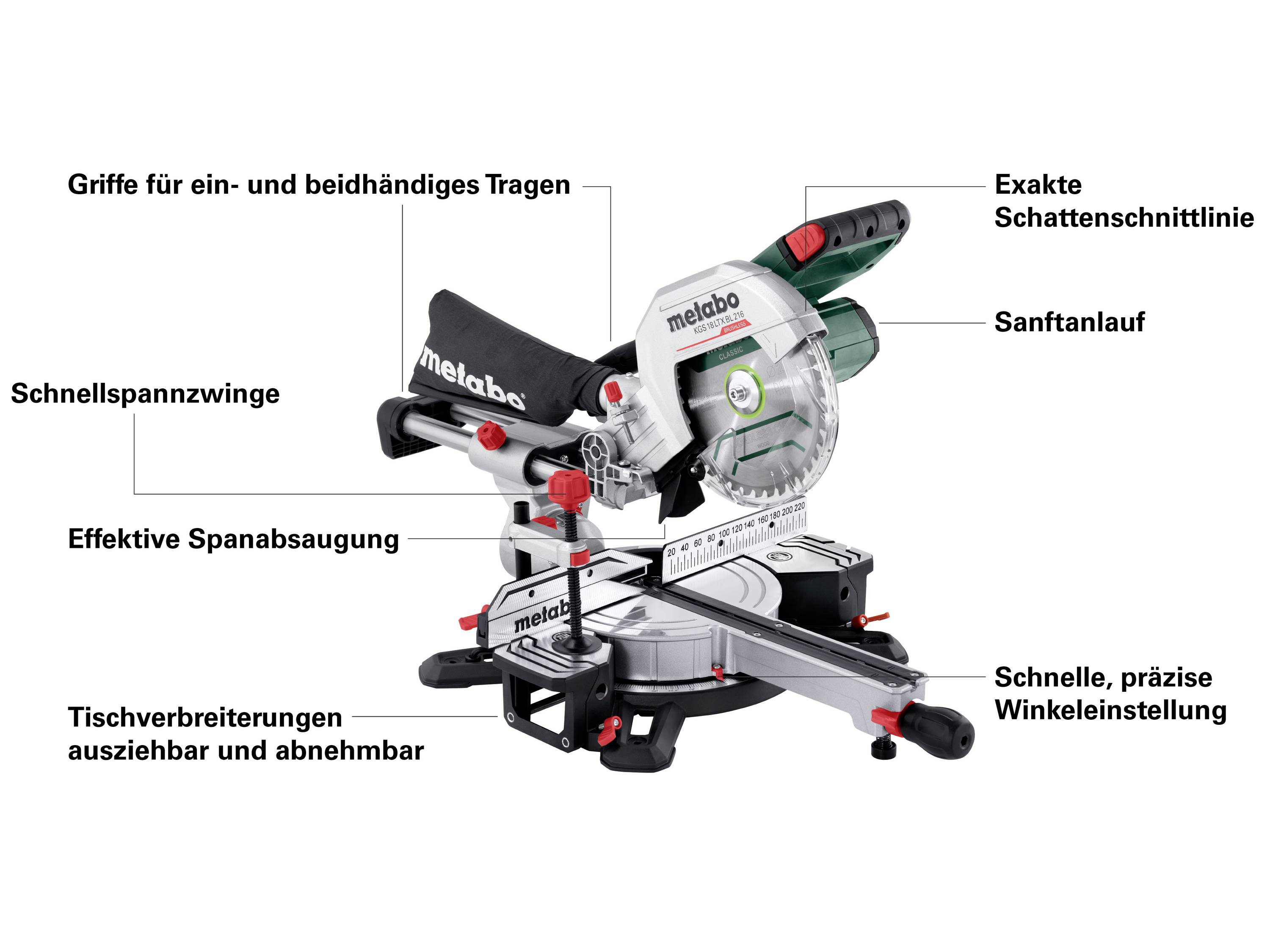

Mitre saw with features: Handles, quick-release clamp, dust extraction, table extensions, precise angle and cutting depth adjustment.

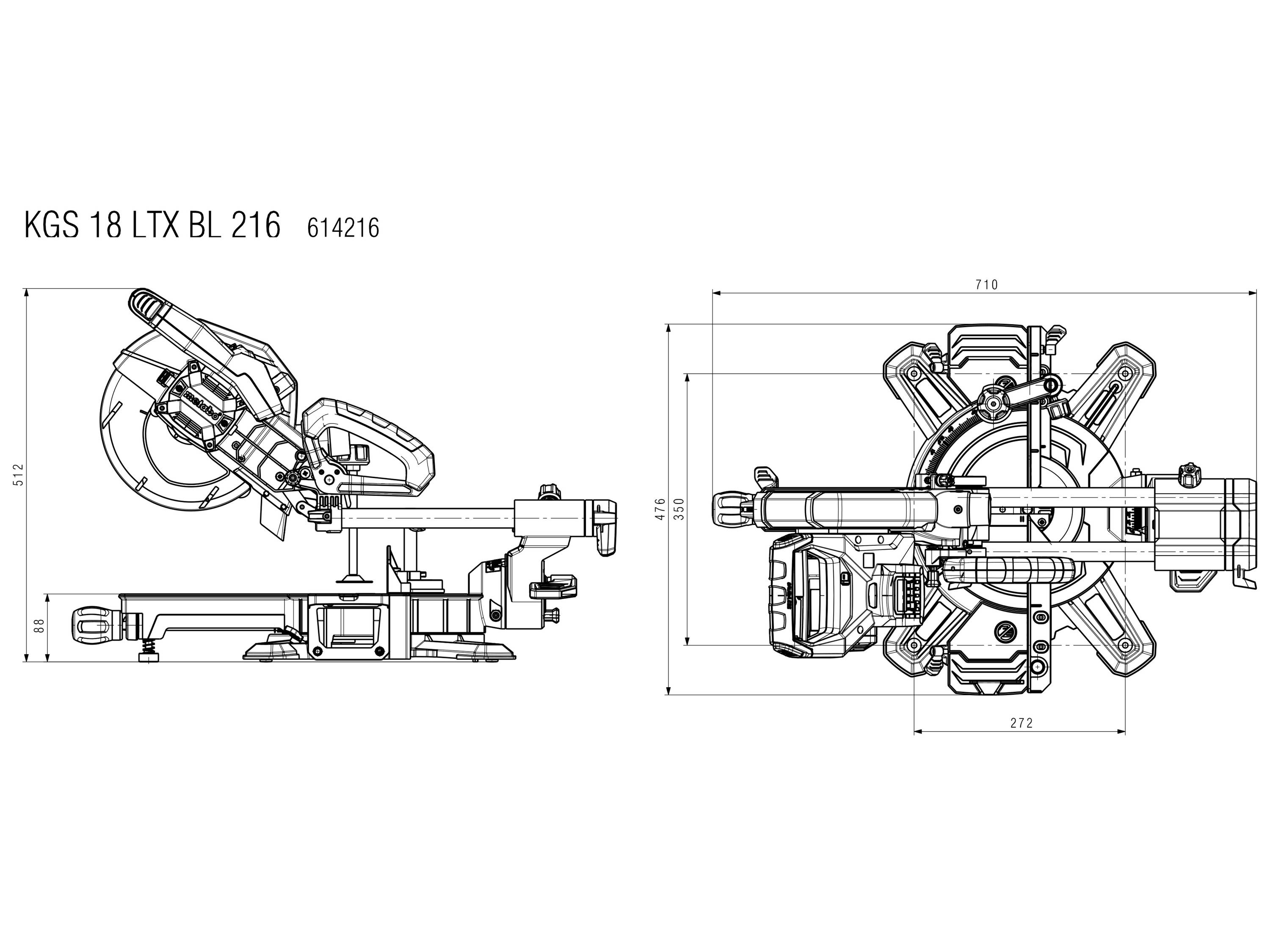

Figure of a mitre and crosscut saw, Model KGS 18 LTX BL 216, with dimensions: Width 710mm, Depth 342mm, Height 412mm.
1/7
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

KGS 18 LTX 216 cordless chopsaw

  • Cutting depth (max.) (45°/ 90° ): 40 mm/70 mm

Technical specifications

  • Supporting surface 345 x 730 mm
  • Max. Cutting width 90°/45° 305/215 mm
  • Cutting capacity 90°/90° 305 x 70 mm
  • Cutting capacity 45°/45° 215 x 40 mm
  • Turntable setting left/right: 50 / 50 °
  • Saw-blade inclination left/right: 47 / 2 °
  • Max. Cutting speed 57 m/s
Product type

Cordless chopsaw

Features

w/o battery

w/o charger

Saw blade diameter

216 mm

Bore Ø

30 mm

Cutting depth (max.) (45°)

40 mm

Cutting depth (max.) (90°)

70 mm

Weight

12.8 kg

Content

1 pc(s)

Battery voltage

18 V

Idle speed

5000 U/min

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2943872 Metabo 614216850 Cordless chopsaw w/o battery, w/o charger 216 mm 30 mm

User & Safety Instructions

User & Safety Instructions 2943872 Metabo 614216850 Cordless chopsaw w/o battery, w/o charger 216 mm 30 mm

User & Safety Instructions 2943872 Metabo 614216850 Cordless chopsaw w/o battery, w/o charger 216 mm 30 mm

Description

Compact cordless chop and miter saw from the mobile M-Class - light, precise, user-friendly. Powerful brushless motor for powerful sawing like with a power net machine.

This text is machine translated.

Features

  • Up to 400 cuts in soft wood 60 x 60 mm per battery charge (LiHD 10 Ah)
  • Precision Cut Line (PCL): Exact shadow cutting line without adjusting by cleverly placed LED
  • Large cutting capacity by traction function for broad work pieces
  • Turntable with fast, precise setting of common angles via locking points
  • Saw-blade inclination of -2 to 47°, as such suitable for rear-cuts
  • Robust design made of die-cast aluminum for the toughest requirements
  • Effective chip-suction via the integrated chip-collection funnel
  • Soft start-up and overload protection for long life of motor and gear
  • Detachable table extensions, also detachable for placing extremely long work pieces
  • Quick clamp to securely fix the work piece from above or from the front
  • Depth stop for easy creation of grooves
  • All scales and control elements can be viewed and used intuitively from the working position
  • Ergonomic grip for one or both-handed carrying

Scope of delivery

  • Saw blade "Cordless cut wood - classic" 216x30 Z40
  • 2 integrated table extensions
  • Cut-off stop
  • Material clamp
  • Tool for changing saw-blade
  • Chip collection bag
  • Battery pack and charger not included
