Name: Metabo 614254810 Cordless chopsaw incl. spare battery, incl. charger 254 mm 30 mm
Brand: Metabo
SKU: 2943893

Metabo compound miter saw with blade guard, fence, and measuring scale on a black base for cutting wood at precise angles.

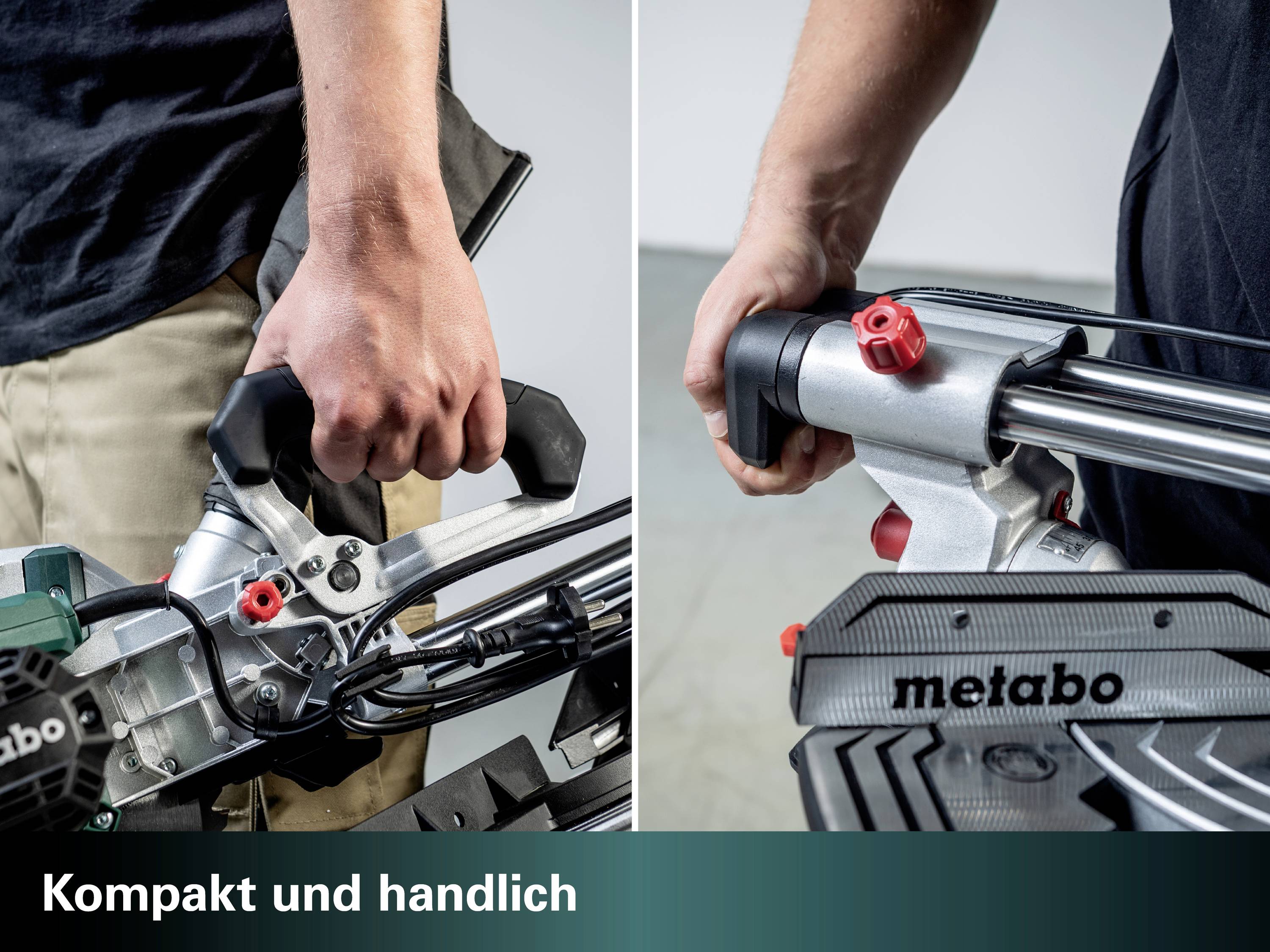

'Two images show a person holding a compact, portable tool from Metabo, described as compact and handy.'

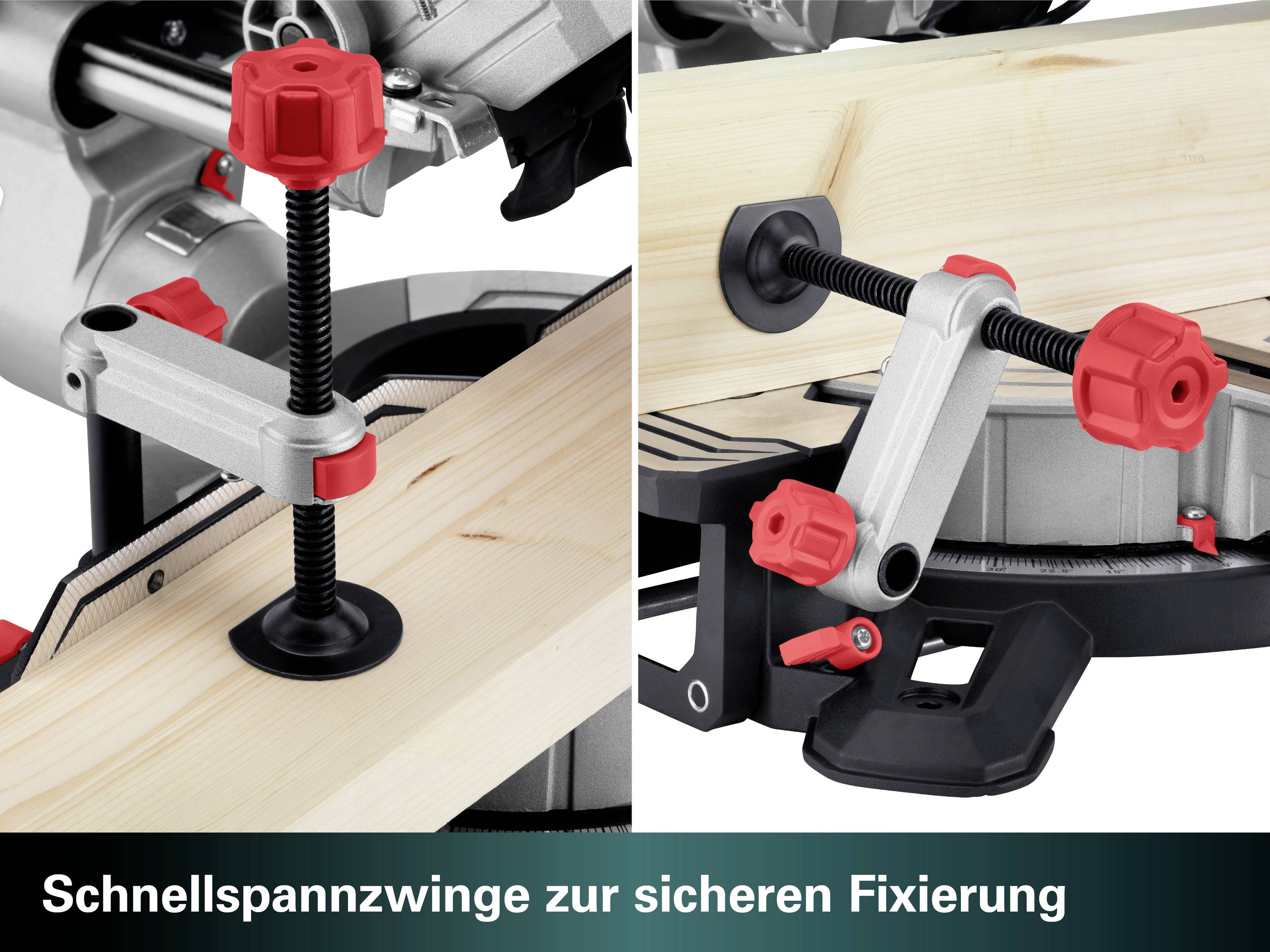

Quick-release G-clamp for securely fixing wood during sawing, shown in two views: a close-up and a side view.

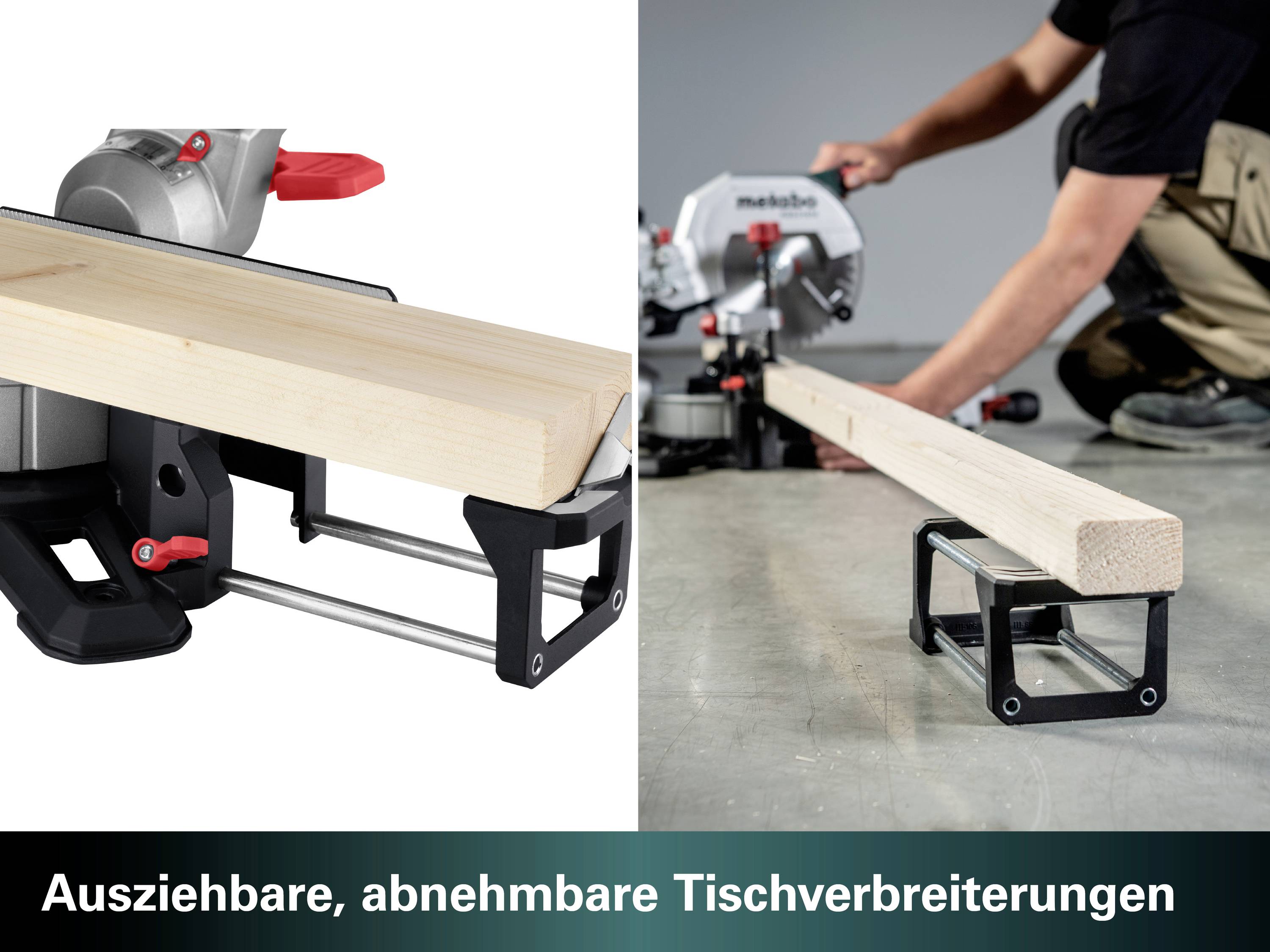

'A mitre saw with wooden board is operated by one person on an extendable table. Text: Extendable, removable table extensions.'

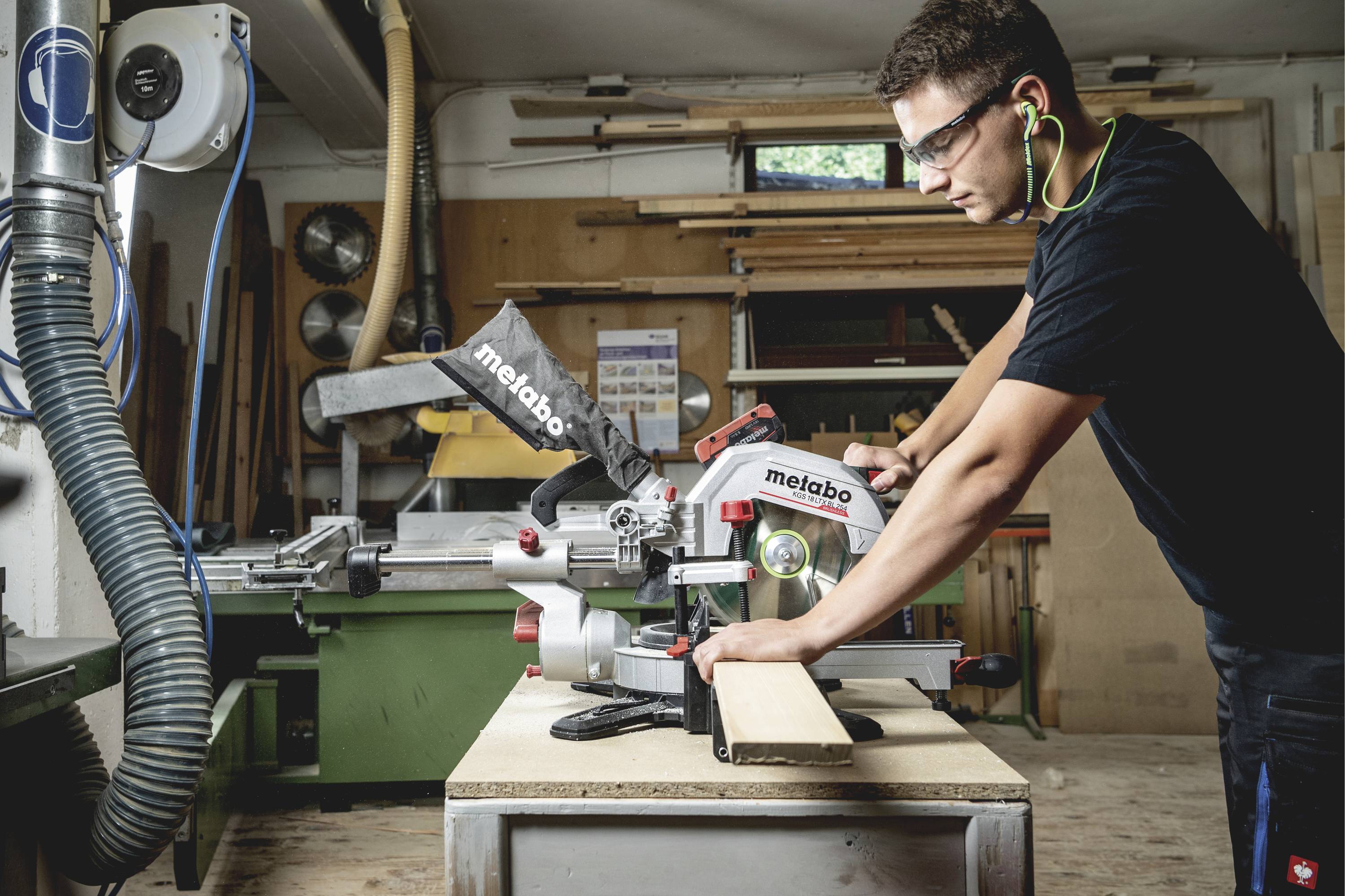

A man is cutting a wooden board with a mitre saw in a workshop. He is wearing ear defenders and safety glasses.

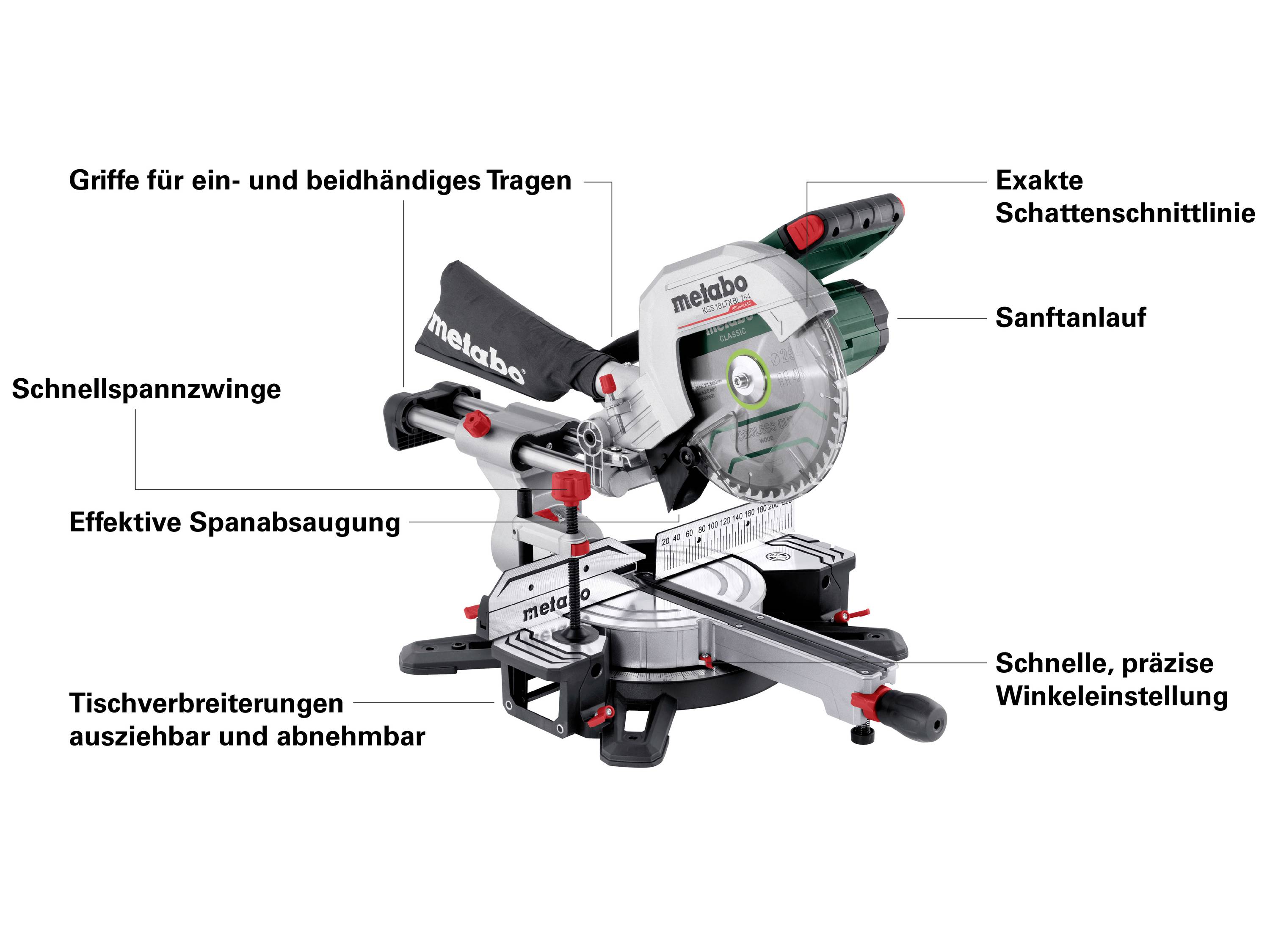

Metabo mitre saw with labels: Handles, Cutting Depth, Soft Start, Clamping Lever, Table Extension, Angle Adjustment.

Diagram of a mitre saw 'KGS 18 LTX BL 254', with dimensions and model number 614254, showing front and side views for technical specification.

1/7

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

KGS 18 LTX 254 cordless chopsaw

Cutting depth (max.) (45°/ 90° ): 47 mm/92 mm

Technical specifications

Supporting surface 345 x 760 mm
Max. Cutting width 90°/45° 305/215 mm
Cutting capacity 90°/90° 305 x 92 mm
Cutting capacity 45°/45° 215 x 47 mm
Turntable setting left/right: 50 / 50 °
Saw-blade inclination left/right: 47 / 2 °
Max. Cutting speed 53 m/s

Product type: Cordless chopsaw

Features: incl. spare battery
incl. charger

Saw blade diameter: 254 mm

Bore Ø: 30 mm

Cutting depth (max.) (45°): 47 mm

Cutting depth (max.) (90°): 92 mm

Weight: 15.8 kg

Content: 1 pc(s)

Battery capacity: 8 Ah

Battery voltage: 18 V

No. of power packs included: 2

Technology: Li-ion

Idle speed: 4000 U/min

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2943893 Metabo 614254810 Cordless chopsaw incl. spare battery, incl. charger 254 mm 30 mm

User & Safety Instructions

User & Safety Instructions 2943893 Metabo 614254810 Cordless chopsaw incl. spare battery, incl. charger 254 mm 30 mm

Information

Test Summary Report 2943893 Metabo 614254810 Cordless chopsaw incl. spare battery, incl. charger 254 mm 30 mm

Security datasheet

Security datasheet 2943893 Metabo 614254810 Cordless chopsaw incl. spare battery, incl. charger 254 mm 30 mm

Description

Compact cordless chop and miter saw from the mobile M-Class - light, precise, user-friendly. Powerful brushless motor for powerful sawing like with a power net machine.

This text is machine translated.

Features

Up to 205 cuts in soft wood 80 x 80 mm per battery charge (LiHD 10 Ah)
Precision Cut Line (PCL): Exact shadow cutting line without adjusting by cleverly placed LED
Large cutting capacity by traction function for broad work pieces
Turntable with fast, precise setting of common angles via locking points
Saw-blade inclination of -2 to 47°, as such suitable for rear-cuts
Robust design made of die-cast aluminum for the toughest requirements
Effective chip-suction via the integrated chip-collection funnel
Soft start-up and overload protection for long life of motor and gear
Detachable table extensions, also detachable for placing extremely long work pieces
Quick clamp to securely fix the work piece from above or from the front
Depth stop for easy creation of grooves
All scales and control elements can be viewed and used intuitively from the working position
Ergonomic grip for one or both-handed carrying

Scope of delivery

Saw blade "Cordless cut wood - classic" 254x30 Z48
2 integrated table extensions
Cut-off stop
Material clamp
Tool for changing saw-blade
Chip collection bag
2x LiHD battery packs (18 V/8.0 Ah)
