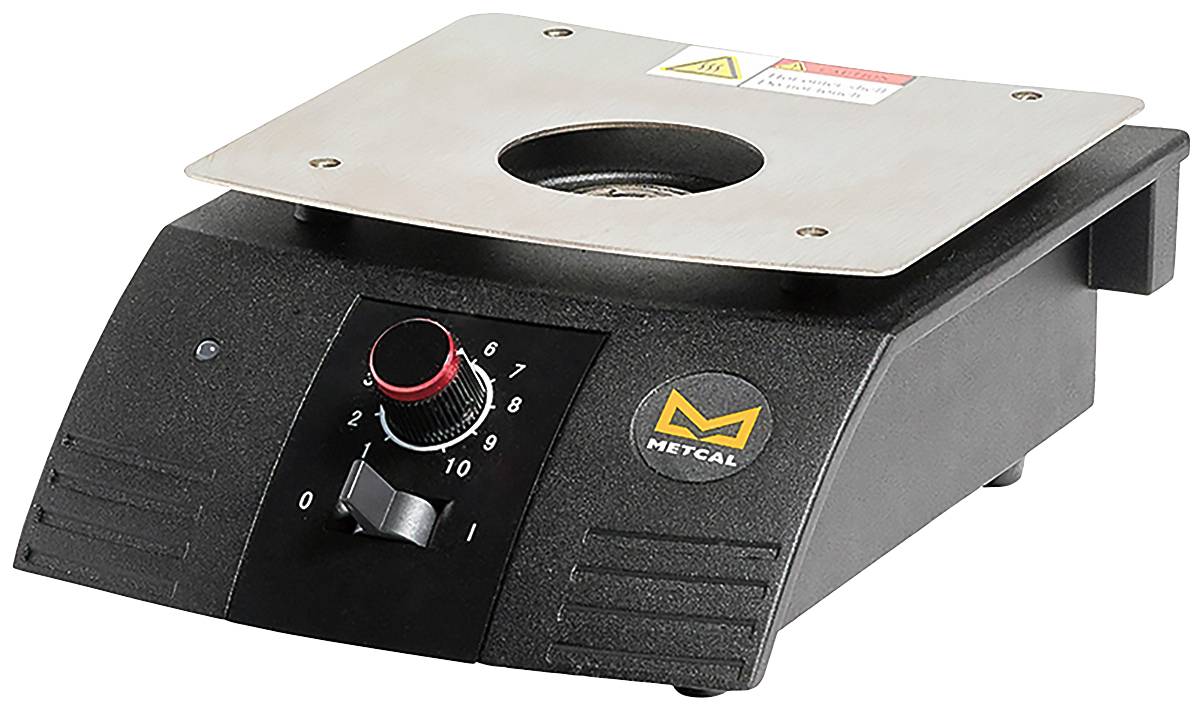

Metcal PCT-100 Heating element 450 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 1,519.00 / piece)
€ 1,519.00
incl. VAT
14-day return policy included
Technical specifications
- Air current 280 l/min.
- Product type
Heating element
- Max. power
450 W
- Max. temperature
300 °C
- Dim
(L x W x H) 205 x 155 x 65 mm
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Width
155 mm
- Height
65 mm
- Length
205 mm
- Min. temperature
25 °C
Documents & Downloads
Datasheet
Datasheet 3048954 Metcal PCT-100 Heating element 450 W
User & Safety Instructions
User & Safety Instructions 3048954 Metcal PCT-100 Heating element 450 W
Description
The heater PCT-100 focuses the hot air on the position where the component to be reworked is located on the circuit board. It increases speed and efficiency in thermally demanding applications, including lead-free processes. Can be used for SMT and through-hole mounting, it warms up the PCB using hot air, improving soldered joints, process control and productivity. The underheating PCT-100 increases the heat volume without pushing the temperature values too high. This means that mounting can take place at an appropriate peak temperature without damaging the printed circuit board.
This text is machine translated.
This text is machine translated.
Features
- Accelerates and improves lead-free SMT and through-wall rework processes
- Temperature increases quickly and thus provides for maximum productivity
- Set the desired temperature with a rotary knob
- Controlled cooling prevents thermal shock on printed circuit boards and components
- Thermocouple sensor controls the output temperature
- Automatic heating shutdown in the event of fan failure
Scope of delivery
- 1x underheating PCT-100
- 1x power cord
- 1x adjustable arm rest PCT-AR
- 1x free-standing PCB holder BH-100
- 1x user manual
