JBC Tools PHSE-2KB IR soldering iron preheater 500 W +50 to +250 °C
EAN:
Part number:
Item no:
7 Piece(s)
Sales and shipping:
Number
Total (€ 2,343.70 / piece)
€
Only 7 Piece(s) available
Highlights & Details
Infrared pre-heating plate PHSE-2KB
- Highly efficient IR radiant heatSpreadinng Heat UniformlyComplete solution for large PCBsPCB holder PHS-S can be adjusted in many places and has three positions (28, 50, 70 mm)2-stage height-adjustable PCB holderTwo separate heating zonesEasy to clean glass surfaceUp to 22 multi-stage profiles can be programdTemperature or power-controlled operation possibleRemote control unitCan be synchronized with other JBC hot air and soldering stations and extraction systems
Technical specifications
- Weight: 4780 gDimensions of heating area L x W in mm: 65 x 135 or 130 x 135 (2 zones)
- Product type
IR soldering iron preheater
- Max. power
500 W
- Temperature range
+50 to +250 °C
- Max. temperature
+250 °C
- Dim
(L x W x H) 288 x 195 x 41 mm
- Width
195 mm
- Height
41 mm
- Length
288 mm
- Min. temperature
+50 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2623974 JBC Tools PHSE-2KB IR soldering iron preheater 500 W +50 to +250 °C
Description

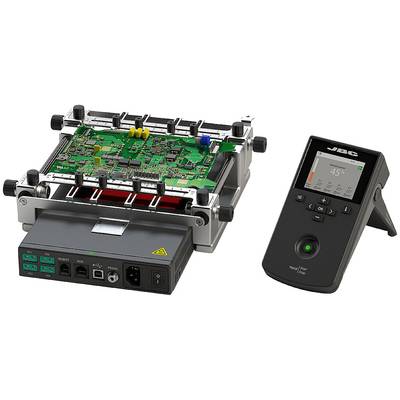

The PHSE-2KB Small Preheater Set provides the best solution for rework on small/medium-sized PCBAs, as often used in the electronics industry. It has a heating surface of 130 x 135 mm and four TC connections. Unmatched reliability in temperature accuracy and control of the PCBA, so no component is damaged. The preheater can be operated easily and comfortably via the intuitive menu navigation.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 pre-heating plate PHSE-2B1 piece ACE programming console1 piece PCB holder PSS1 connection cable RJ451 piece Kapton tape2 pieces thermocouple PH2181 piece mains plug1 set of operating instructions
