Metrel 20992913 MI 3143 EU Accessory kit 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 3,289.00 / piece)
€ 3,289.00
incl. VAT
14-day return policy included
Technical specifications
- Product type
Accessory kit
- Compatible with
Metrel
- Reading category
CAT IV 600 V
- Type
MI 3143 EU
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2536344 Metrel 20992913 MI 3143 EU Accessory kit 1 pc(s)
Information
Test Summary Report 2536344 Metrel 20992913 MI 3143 EU Accessory kit 1 pc(s)
Description
The MI 3143 Euro Z 440 V is a test device for complex impedance measurements with an excellent IP protection class. It can be controlled remotely via the Android app aMESM or certain Eurotest test test devices. Thus, it is safer for failure of the protective devices on transformers and other high-voltage devices. With its high-precision line and loop impedance measurements in AC and DC circuits, touch voltage measurement, and DR 330A resistance testing, it is ideal for industrial applications.
This text is machine translated.
This text is machine translated.
Features
- Highly precise 4 - conductor 220A Z Line and Z Loop Impedance measurement;Hi-Range impedance measurements in 440 V / 16 ... 420 Hz AC networks;High current DR 300A 4 - conductor resistance measurement via partial voltage drops;Ground fault analysis with contact, contact and step voltage;Voltmeter for partial results;Selectable test load (33.3% to 100%);Improved thermal performance;Portable battery (Li-Ion) or mains-powered tester;IP protection class: IP 65 (housing closed), IP 54 (housing open).Cat IV 600V (3000 m) safety category;Bluetooth communication;Black box version (remote controlled via an Android device).
Scope of delivery

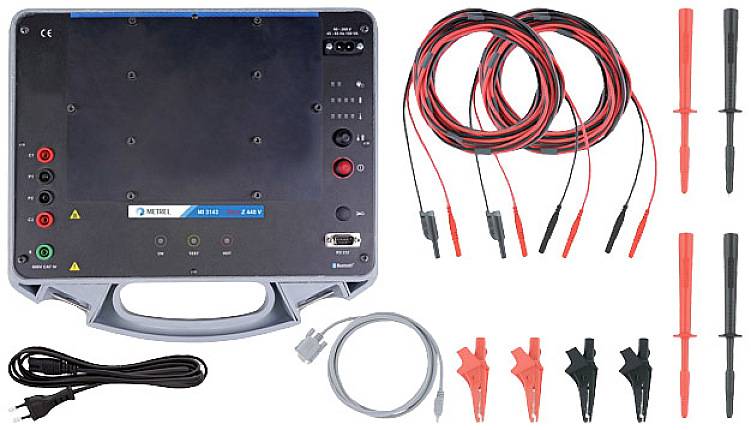

- WED 3143 EURO Z 440 VPower cable;RS232-PS/2 cableTest lead, 2 - conductor, 2 pieces*Crocodile clip, black, 2 piecesCrocodile clip, red, 2 piecesTest probe, black, 2 piecesTest tip, red, 2 piecesMeterl aMESM Android PRO P 1102-AND with license key integrated in the deviceCalibration certificateAccessories bag
- Test lead 5m, black, 2 piecesTest lead 5m, red, 2.5mm2, 2 piecesTest lead, 20m, red, 2.5mm2Test lead, 20m, blackTest lead, 20m, greenLarge Kelvin clip, 2 piecesCrocodile clip, black, 2 piecesG Clip-on ammeterBody resistance probeTest probes, 2 piecesStep voltage test plate, 2 pieces* In MI 3143 EU set replaced by 5 m and 20 m cables.
Hints
Supplied with German license.
