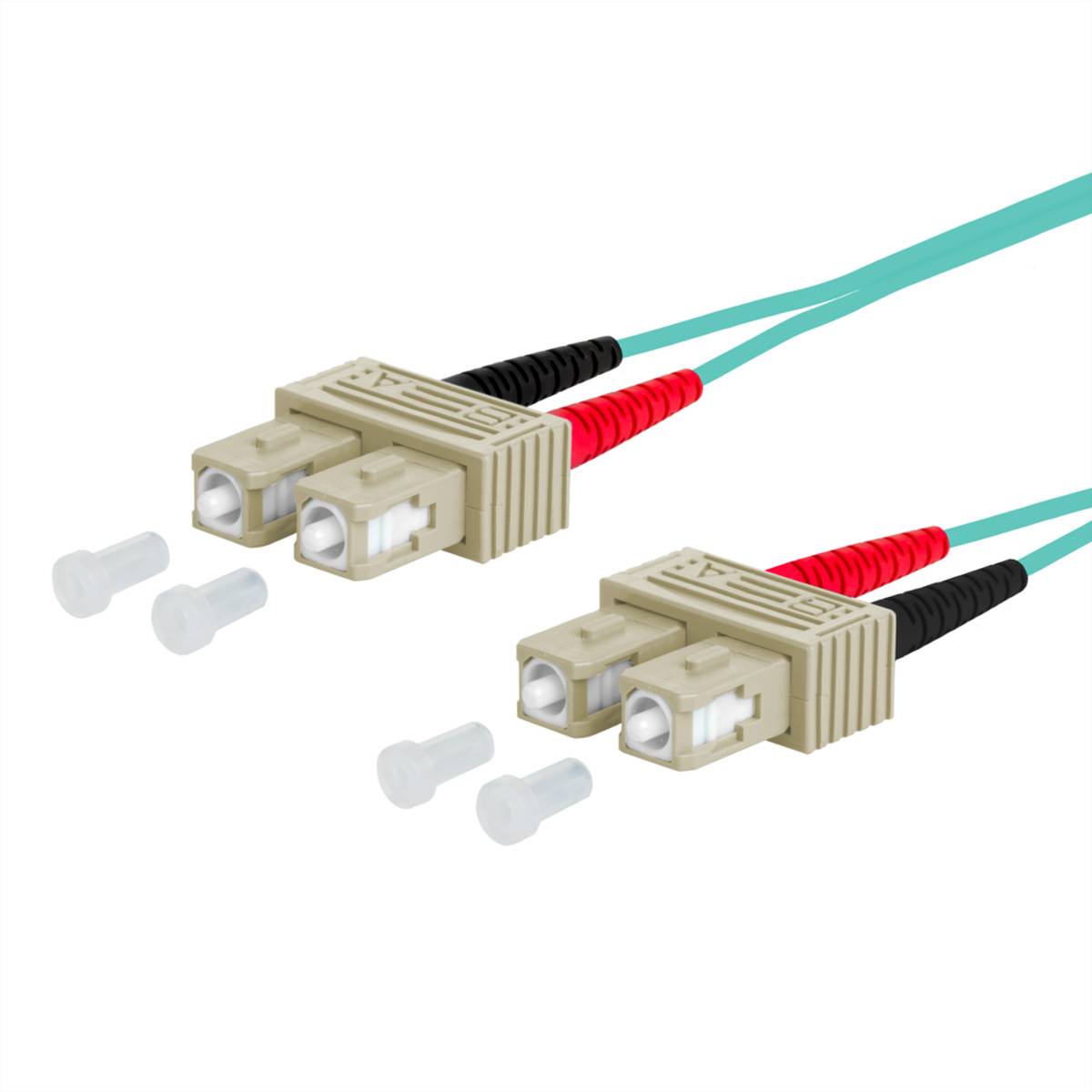

Metz Connect 151J1EOEO15E Fibreglass FO Cable 1.50 m Turquoise Multimode OM3
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- SC duplex plug to SC duplex plug
- Duplex-Cable
- Factory colour: Turquoise
Technical specifications
- Connection 1: SC
- Connection 2: SC
- CABLE TYPE I-V(ZN) H
- Product color: Aqua color
- Product type
FO Cable
- Connection type
Fibreglass
- Type A
SC duplex plug
- Type B
SC duplex plug
Multimode OM3
Duplex
- Halogen-free
Yes
- Cable length
1.50 m
- Factory colour
Turquoise
- Content
1 pc(s)
- Connector version
straight
FO
- Cable use
FO
- Version
Cable
- UKCA
not relevant
- Operating temperature (T-T)
-10 - 60 °C
- Return loss
35 dB
- Quantity per pack
1 Stück(e)
- Full duplex
yes
- Insertion loss
0.4 dB
- Storage temperature (T-T)
-10 - 60 °C
- Core diameter
50 µm
- Cladding diameter
125 µm
Documents & Downloads
Datasheet
Datasheet 3797995 Metz Connect 151J1EOEO15E Fibreglass FO Cable 1.50 m Turquoise Multimode OM3
User & Safety Instructions
User & Safety Instructions 3797995 Metz Connect 151J1EOEO15E Fibreglass FO Cable 1.50 m Turquoise Multimode OM3
Description
Unlike copper cables, FO cables are much less suceptible to adverse conditions. FO doesn't interfere with electronic devices. The low attenuation of FO cables allows for long-distance transmissions.
Features
- Multimode patch cable I-V(ZN)H 50/125 OM3
- Laser-optimized, bend-insensitive multi-mode fiber OM3, G50/125 µm according to IEC 60793-2-10 type A1a.2
- Outside diameter 2.0 x 4.2 mm
- Casing material halogen-free with low smoke development LHF-FR, flame resistant
- Duplex cable as Zipcord (Figure 8) with two full charge conductors and aramide as strain relief
- 100% checked
- Maximum length 20 m.
Scope of delivery
- Metz Connect OpDAT Patch cable
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
