Metz Connect 151P1EOJO15E Fibreglass FO Cable 1.50 m Yellow 9/125 µ Singlemode OS2
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

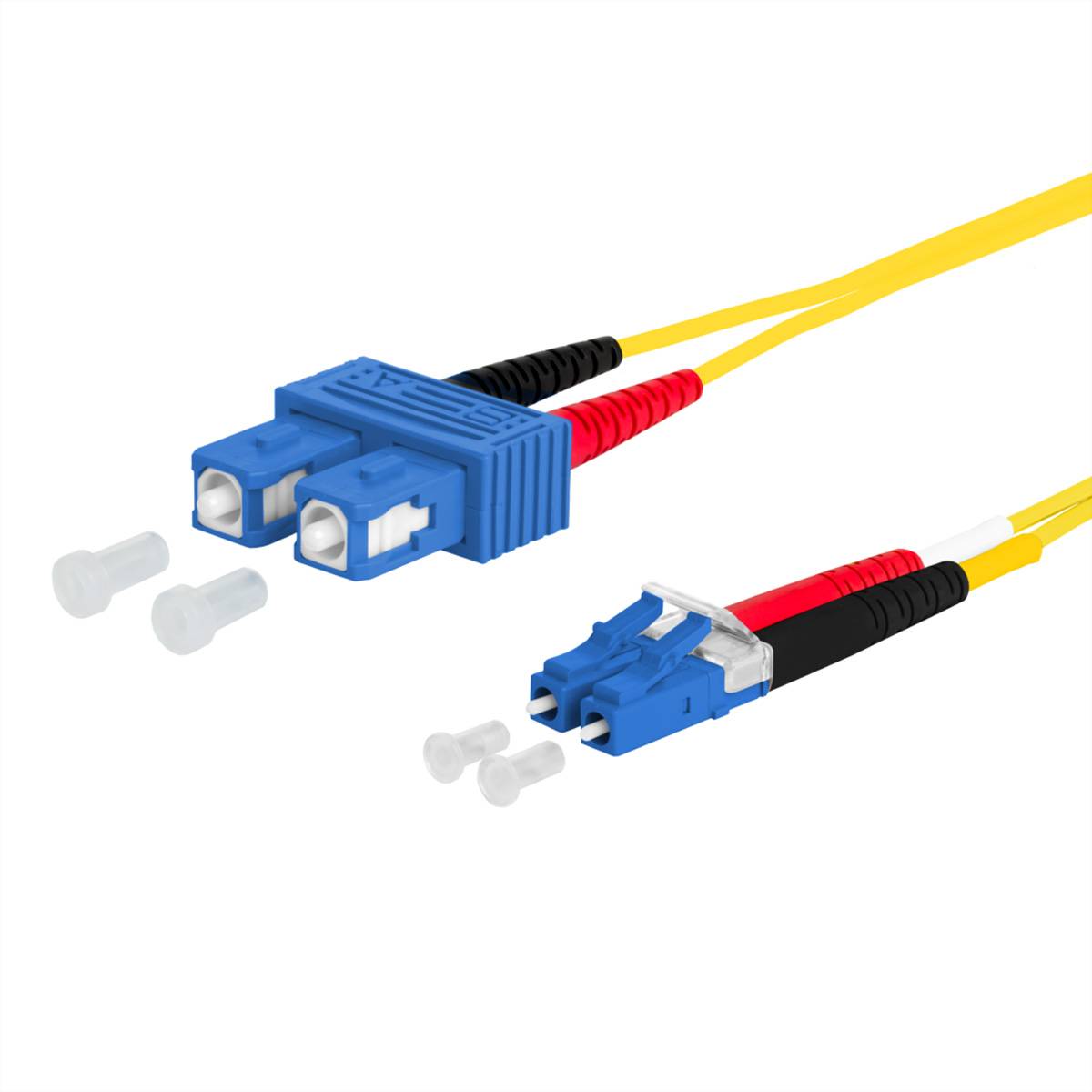

- SC duplex plug to LC duplex plug
- Duplex-Cable
- Factory colour: Yellow
Technical specifications
- Connection 1: SC
- Connection 2: LC
- CABLE TYPE I-V(ZN) H
- Bending radius 1.5 cm
- Product type
FO Cable
- Connection type
Fibreglass
- Type A
SC duplex plug
- Type B
LC duplex plug
- Fibre type
9/125 µ
Singlemode OS2
Duplex
- Halogen-free
Yes
- Cable length
1.50 m
- Factory colour
Yellow
- Content
1 pc(s)
- Connector version
straight
- Cable design
Flat
- Cable features
low flue gas emission
Flame-retardant
Duplex
Halogen-free
FO
- Cable use
FO
- Version
Cable
- UKCA
yes
- Quantity per pack
1 Stück(e)
- Full duplex
yes
- Core diameter
9 µm
- Cladding diameter
125 µm
Documents & Downloads
Datasheet
Datasheet 3798036 Metz Connect 151P1EOJO15E Fibreglass FO Cable 1.50 m Yellow 9/125 µ Singlemode OS2
User & Safety Instructions
User & Safety Instructions 3798036 Metz Connect 151P1EOJO15E Fibreglass FO Cable 1.50 m Yellow 9/125 µ Singlemode OS2
Description
Unlike copper cables, FO cables are much less suceptible to adverse conditions. FO doesn't interfere with electronic devices. The low attenuation of FO cables allows for long-distance transmissions.
Features
- SINGLE-MODE PATCH CABLE I-V(ZN)H E9/125 OS2
- Single-mode fiber OS2, E9/125 µm bend-insensitive according to IEC 60793-2-50 type B6_a and B6_b and G.657.A2 and B2 compatible with G.652.D
- Outside diameter 2.0 x 4.2 mm
- Casing material halogen-free with low smoke development LHF-FR, flame resistant
- Duplex cable as Zipcord (Figure 8) with two full charge conductors and aramide as strain relief
- 100% checked
- Maximum length 20 m.
Scope of delivery
- Metz Connect OpDAT Patch cable
