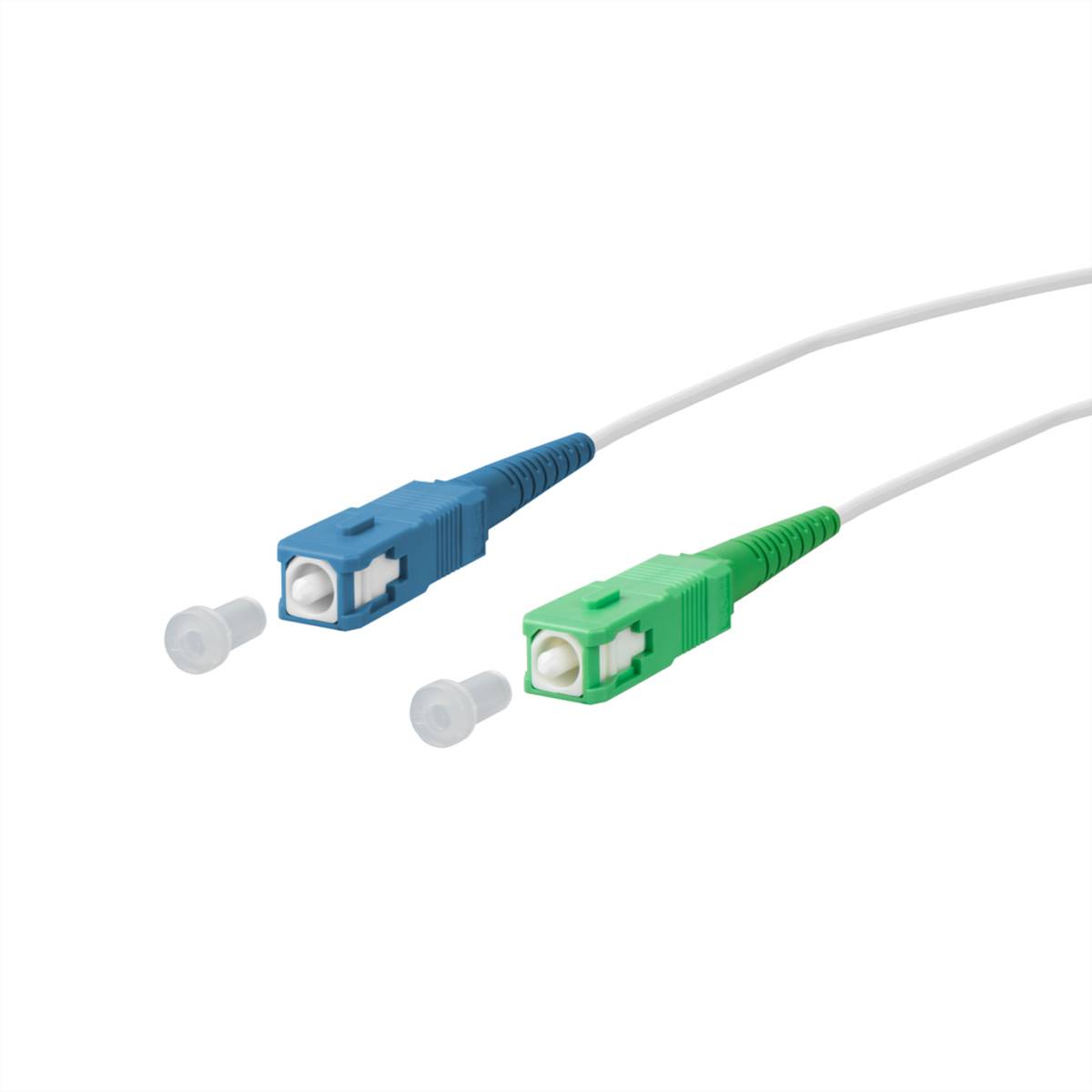

Metz Connect 151P7EOEA10E Fibreglass FO Cable 1.00 m White 9/125 µ Singlemode OS2
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- SC plug to SC APC plug
- Simplex-Cable
- Factory colour: White
Technical specifications
- Connection 1: SC
- Connection 2: SC
- CABLE TYPE I-V(ZN) H
- Product type
FO Cable
- Connection type
Fibreglass
- Type A
SC plug
- Type B
SC APC plug
- Fibre type
9/125 µ
Singlemode OS2
Simplex
- Halogen-free
Yes
- Cable length
1.00 m
- Factory colour
White
- Content
1 pc(s)
- Connector version
straight
- Cable features
Simplex
FO
- Cable use
FO
- Version
Cable
- UKCA
yes
- Operating temperature (T-T)
-10 - 60 °C
- Return loss
65 dB
- Quantity per pack
1 Stück(e)
- Full duplex
yes
- Cable diameter
2 mm
- Insertion loss
0.3 dB
- Storage temperature (T-T)
-10 - 60 °C
- Core diameter
9 µm
- Cladding diameter
125 µm
Documents & Downloads
Datasheet
Datasheet 3798099 Metz Connect 151P7EOEA10E Fibreglass FO Cable 1.00 m White 9/125 µ Singlemode OS2
User & Safety Instructions
User & Safety Instructions 3798099 Metz Connect 151P7EOEA10E Fibreglass FO Cable 1.00 m White 9/125 µ Singlemode OS2
Description
Unlike copper cables, FO cables are much less suceptible to adverse conditions. FO doesn't interfere with electronic devices. The low attenuation of FO cables allows for long-distance transmissions.
Features
- SINGLE-MODE PATCH CABLE I-V(ZN)H1 E9/125 OS2
- Single-mode fiber OS2, E9/125 µm bend-insensitive according to IEC 60793-2-50 type B6_a and B6_b and G.657.A2 and B2 compatible with G.652.D
- Outer diameter 2.0 mm
- Casing material halogen-free with low smoke development LHF-FR, flame resistant
- 100 % checked for insertion and return loss
Scope of delivery
- Metz Connect OpDAT Patch cable
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
