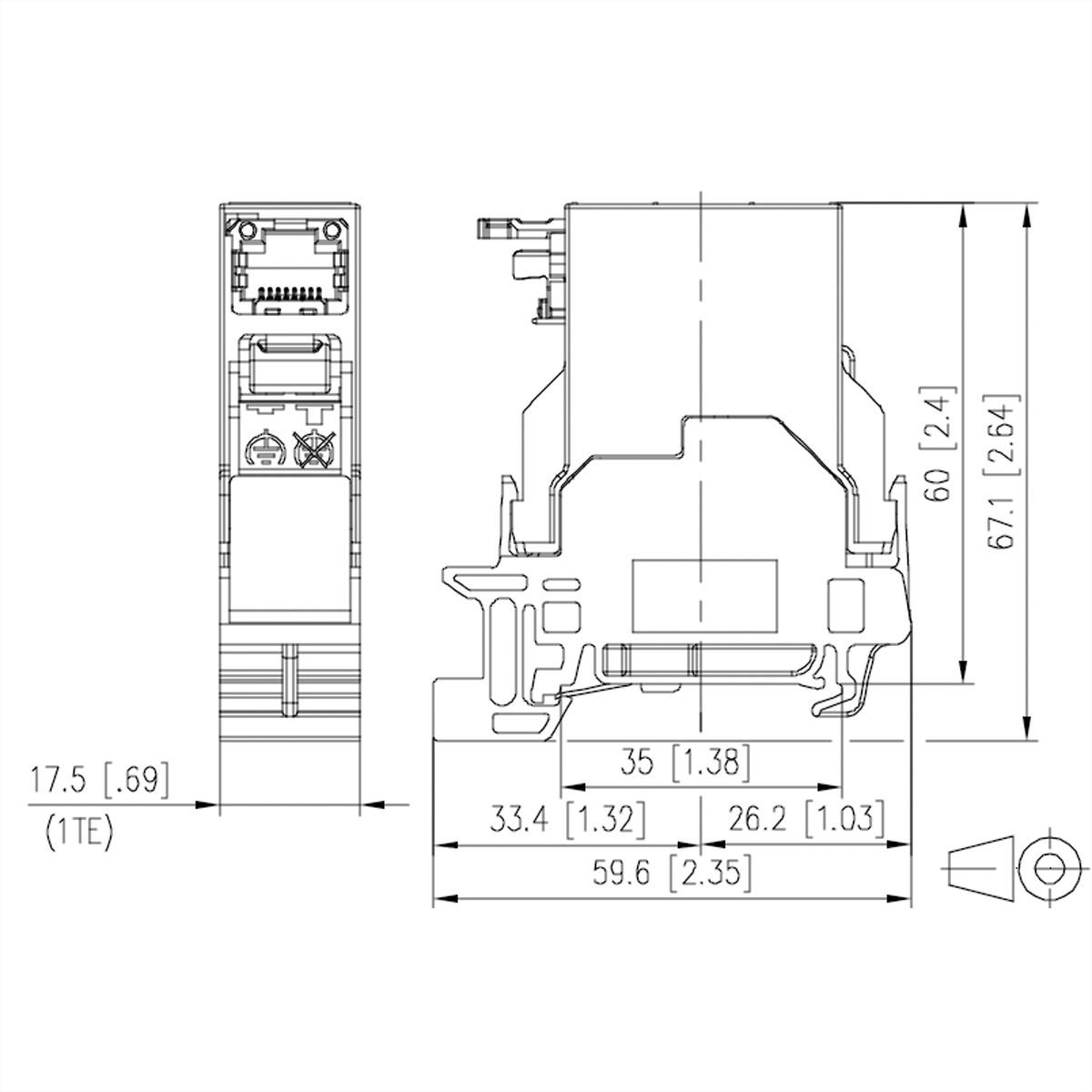

Metz Connect METZ CONNECT E-DAT Industry TS35, field Metz Connect METZ CONNECT E-DAT Industry TS35, field N/A 1401906113

E-DAT Industry support rail TS35 + RJ45 field socket insert CAT.6 Class EA, PROFINET connection unit for mounting on carry rail TH35 according to DIN EN 60715 in electrical distributor for domestic and industrial installation. Built-in with an E-DAT Industry RJ45 field jack insert. Plug-in direction vertical, 90° to the mounting rail. Class EA to ISO/IEC 11801, DIN EN 50173-1. Suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Power (PoE, PoE plus, PoE) and HDBaseT. Easy to mount connection of 2 to 4-pair data cable AWG 24/1 - 22/1 and stranded wire with 7-strand Cu-strand AWG 26/7 to BTR 8-fold IDC-terminals. The overall width of 1TE allows the installation of up to 12 devices into a standard electrical distributor. With installation as a device of protection class I, the equipotential bonding takes place directly on the rail via a switchable, integrated equipotential bonding spring, which can be connected to the building equipotential bonding system via the appropriate contact terminals
