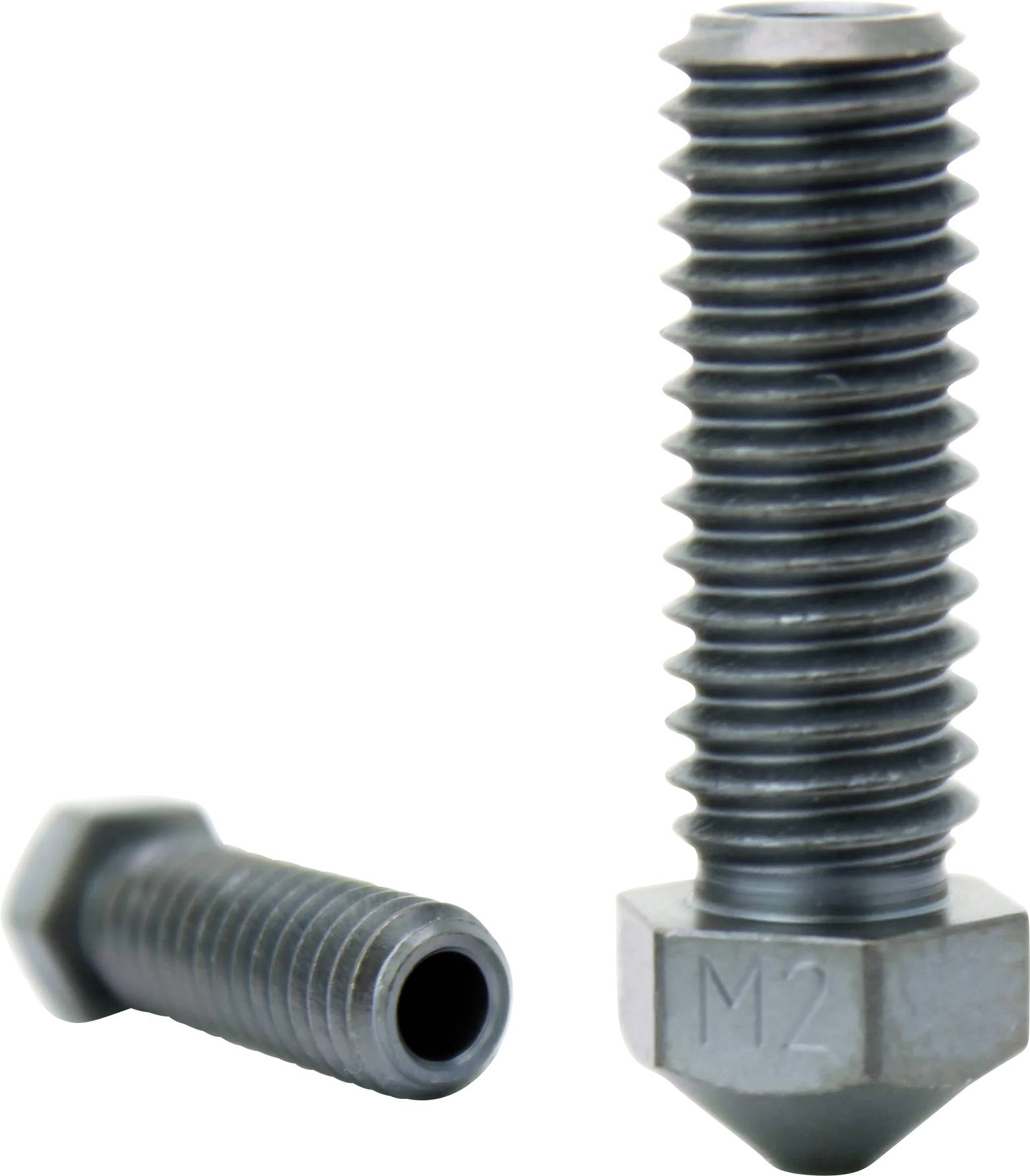

Micro-Swiss 3D printer nozzle 0.4mm M2 Hardened High Speed Steel High Flow 2.85mm Nozzle M2501-04
EAN:
Part number:
Item no:
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
Only 2 Piece(s) available
Highlights & Details
0.4 mm M2 Hardened High Speed Steel High Flow 2.85mm Nozzle
- M2 Hardened Quick Steel 68 HRC
- Cover: Chemically nickel
- Coating hardness 70–73 HRC
- Coating: WS2 coating
- Friction coefficient: 0.035
Technical specifications
- Thread: M6x1.0
- Thread length: 16mm
- Total length: 21mm.
- Filament diameter 2.85 mm
- Type
3D printer nozzle
- Product type
3D printer nozzle
- Nozzle Ø
0.4 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3338692 Micro-Swiss 3D printer nozzle 0.4mm M2 Hardened High Speed Steel High Flow 2.85mm Nozzle M2501-04
Description
The M2-nozzles are designed for high temperatures, abrasion-resistance and excellent non-stick properties. The nozzles are made of M2 quick working steel, hardened and tempered to 68 HRC, coated with chemical nickel and coated with a WS2 coating.
The M2-nozzle can be operated up to 450 °C, without losing hardness.
Suitable for:
E3D Volcano Hot End 2.85 mm filament
