Buy Micro-Swiss Extruder NG™ Direct Drive Extruder M3202

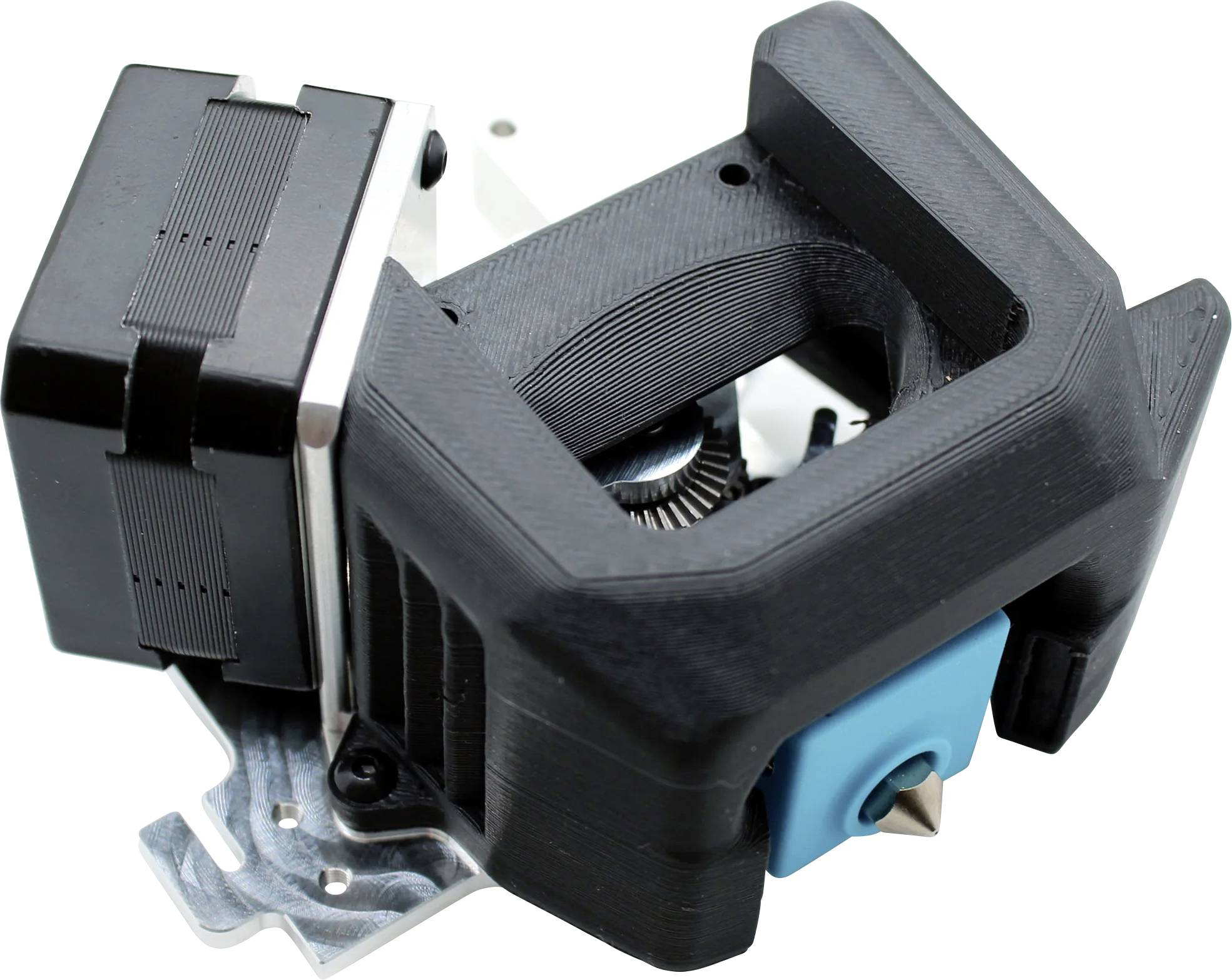

Close-up of a 3D-printed black plastic mount holding a blue electronic component and metal bracket on a white background.

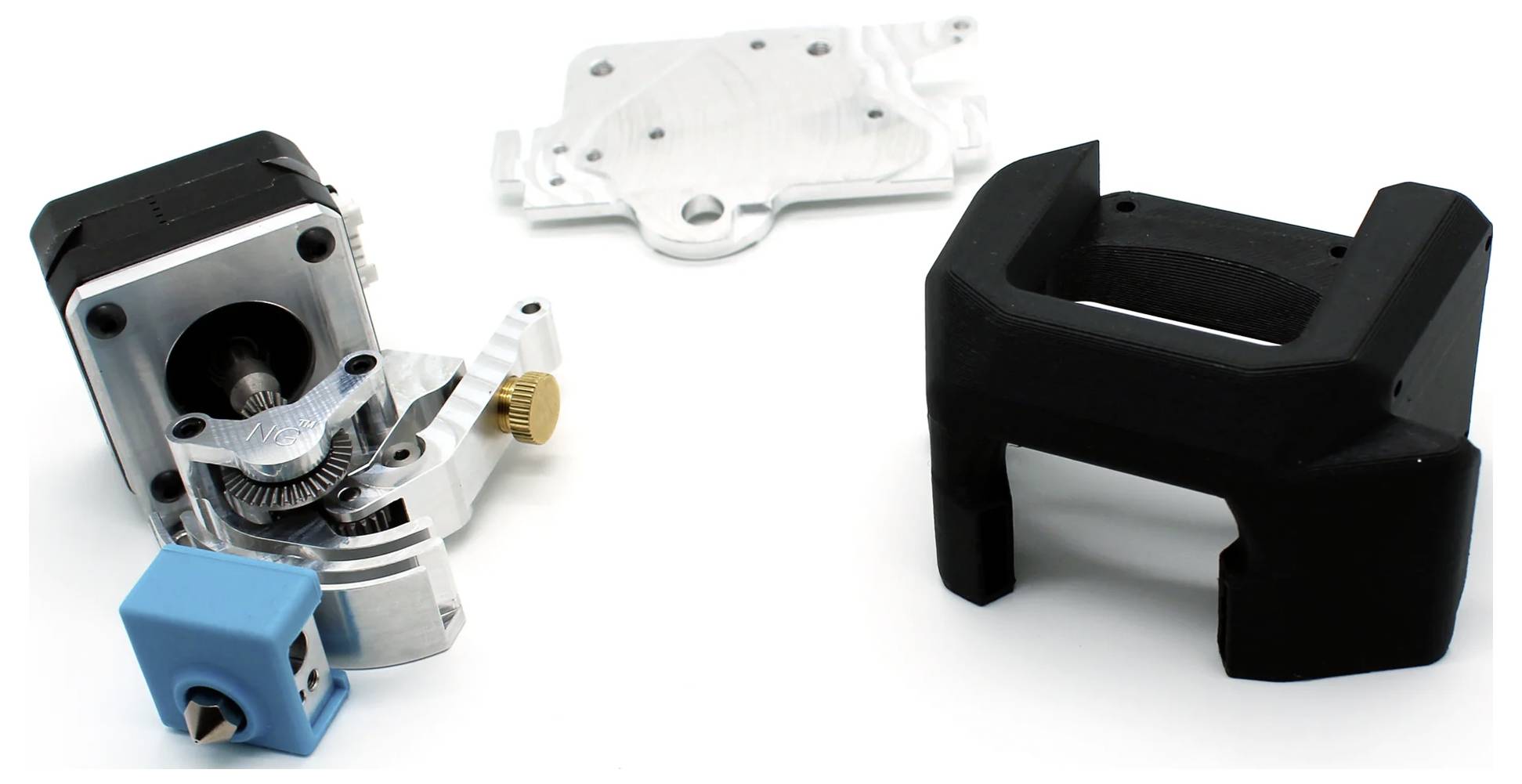

Various mechanical parts and housings displayed on a white background, including a black plastic frame, metal components, and a blue piece.

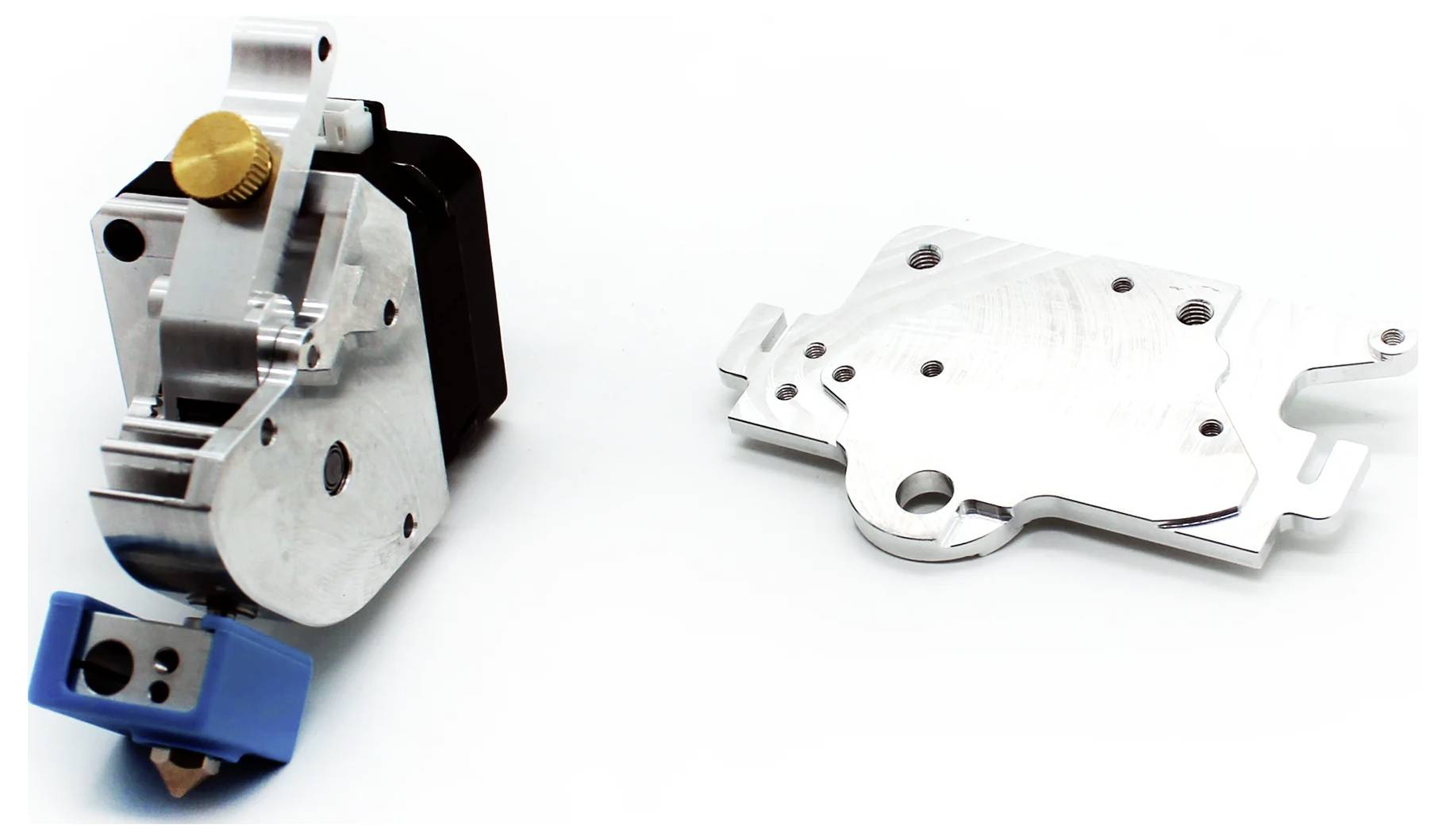

A metal mechanical assembly with a blue sensor block on the left and a separate white mounting plate on the right, shown on a plain white background.

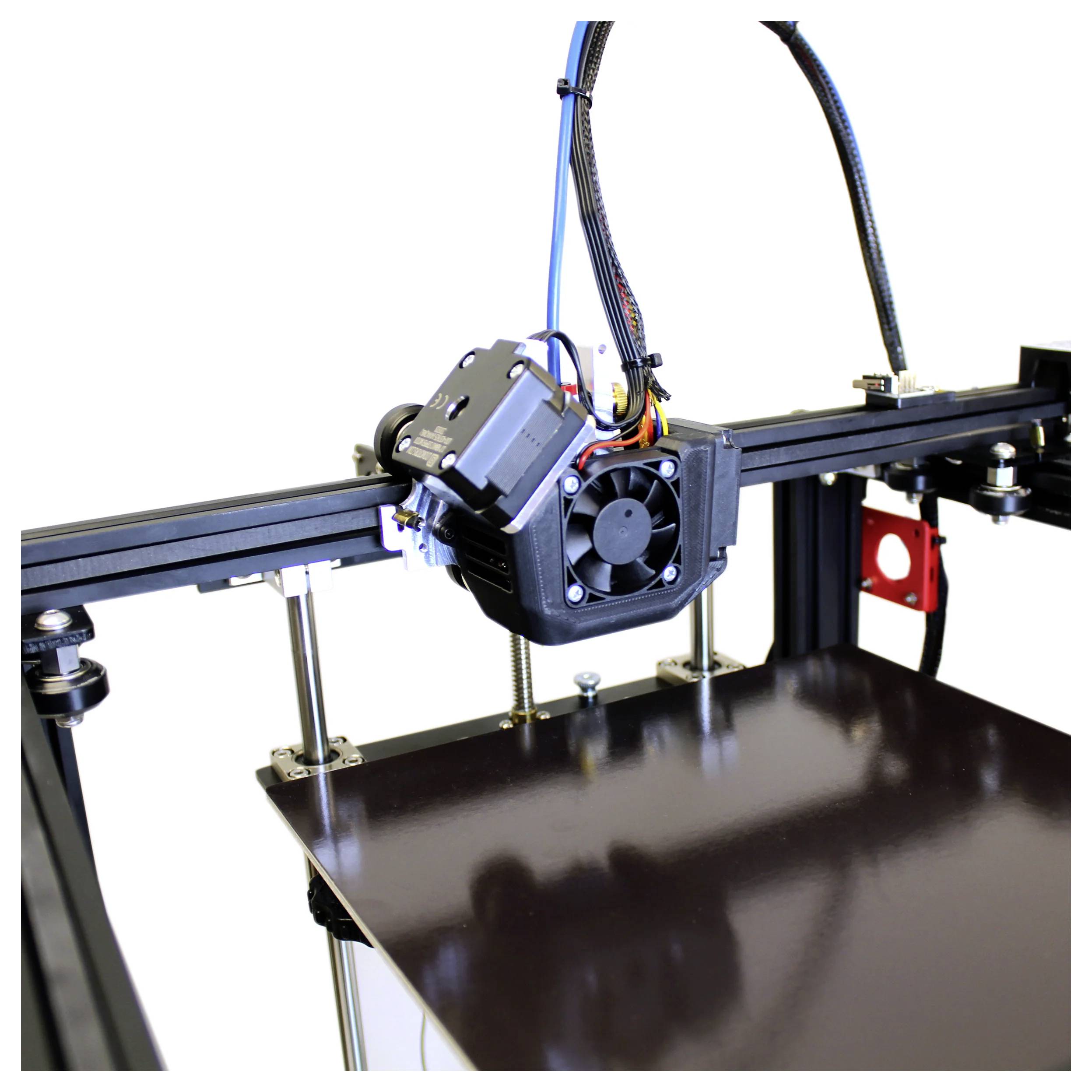

A 3D printer with a print head positioned above a glossy build plate on a black metal frame.

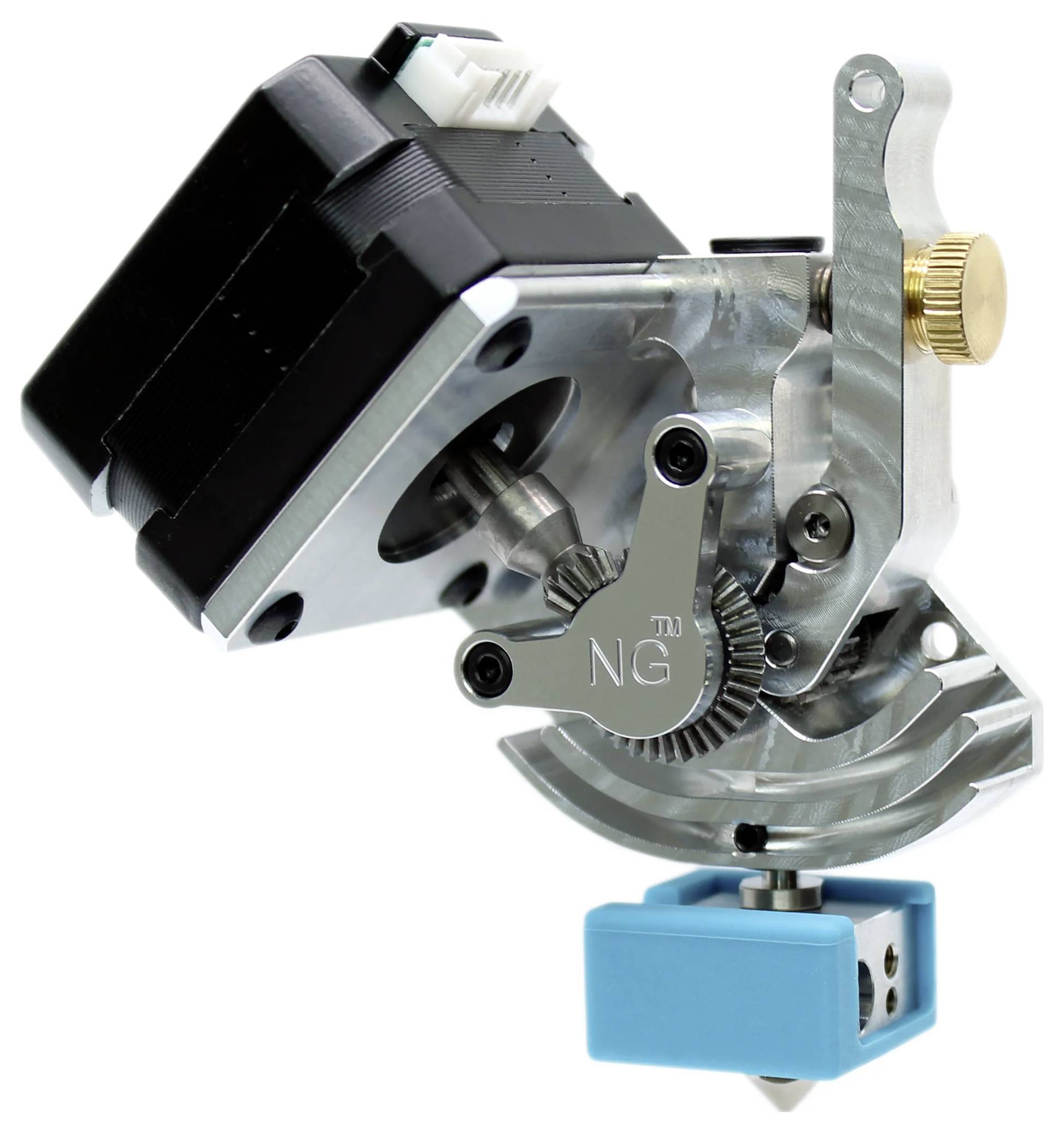

Close-up of a metal mechanical assembly with a black motor, gears, and a blue base mounted on a white background.

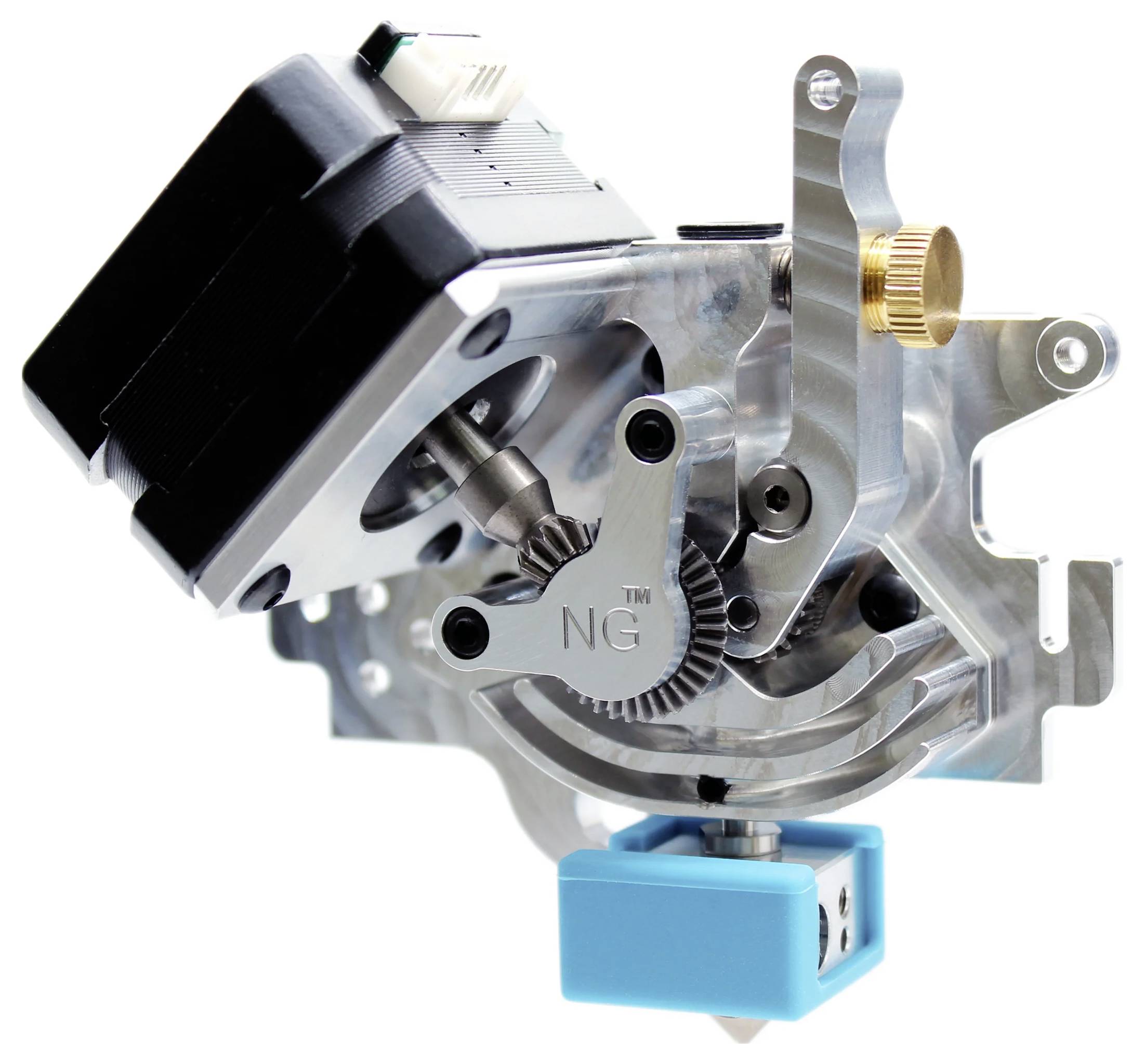

Close-up of a mechanical assembly with a black stepper motor, metal gears and brackets, and a blue mounting block on a white background.

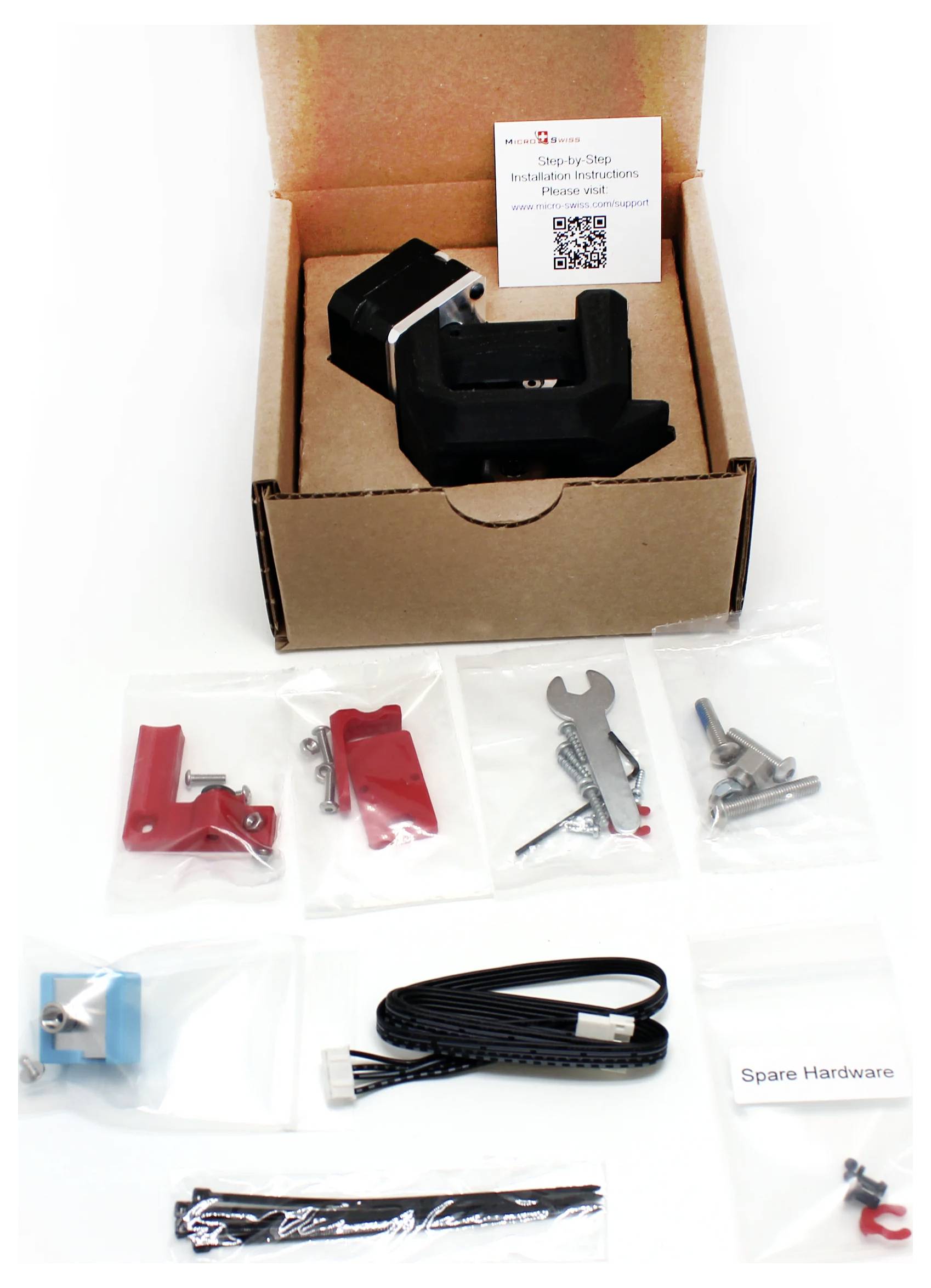

Open cardboard box with a black device and instruction card, plus included hardware bags, cable, spare part, and tools laid out below.

1/7

Dispatches on Wed, 23 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 126.04 / piece)

€ 126.04

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Micro Swiss NG™ Direct Drive Extruders for Creality Enders 5 / 5 Pro / 5 Plus

housing.
3:1 gear ratio
Adaptable to a variety of 3D printers
Hardened steel, precision-cut Dual-gear drive
The industry's shortest, very limited, TwinClad XT™ coated filament path
The bevel gear system allows for extruder mounting with low overhang.
Inclusive Micro Swiss All Metal Hotend

Technical specifications

Type: Extruder

Product type: Extruder

Factory colour: Black

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3338678 Micro-Swiss Extruder NG™ Direct Drive Extruder M3202

Description

Micro Swiss NG™ direct drive extruder

This extruder overcomes the restriction of all available models on the market and creates an optimum printing experience for all.

With the Bevel Gear design, the industry's shortest filament path can be achieved (less than 41 mm). The unique positioning of the motor enables an extremely compact design with a small overhang. This further increases system reliability.

Suitable for:
- Creality end 5
- Creality End 5 Pro
- Creality end 5 plus

This text is machine translated.

Scope of delivery

1x Master extruder assembly
1x adapter plate
1 x LDO stepper motor - motor drawing
1x full-metal hotend module
1x fan cover
1x special extension cable
1x Printed holders
1x eccentric nut
1x M5 x 0.8 x 30 mm cheese head screw
1x washer (5 mm inner diameter, 10 mm outer diameter)
1x M5 x 0.8 mm nylon lock nut
2x M5 x 0.8 x 20 mm nylon flat-head screws
4x M2.2 x 8 mm thread-molding screw for plastic
4x M3 x 12 mm threaded fitting for plastic
1x 7 mm flat spanner
1x 1.5 mm hex key
5x cable tie
