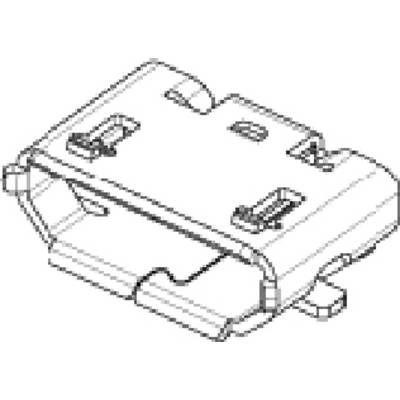

Image similar
Micro USB Socket Molex MOL Micro Solutions Right-angled 473460001 Molex Content: 2000 pc(s)
Packaging type
Tape on Full reel
Product type
USB connector
Connector type
Socket
Number of pins
5
USB type
Micro B
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (1 st = € 0.42)
€ 845.00
incl. VAT
14-day return policy included
Highlights & Details
Micro USB
- Micro-USB B Receptacle with Flange, Bottom Mount, Surface Mount, Lead-Free
- This text is machine translated.
Technical specifications
- Application: Cable to PCBNumber of rows: 1Inputs: 1Durability (max. mating cycles) 10000Pitch - Crimp range 0.65 mmGrid dimension - Plug-in range: 0.65 mmCoded to counterpart: Yes
- Packaging type
Tape on Full reel
- Type
Molex MOL Micro Solutions
- Product type
USB connector
- Connector type
Socket
- Type
Right-angled
- Number of pins
5
- USB type
Micro B
- Connection
SMT
- Manufacturer part #
473460001
- Factory colour
Black
- Content
2000 pc(s)
- Cable Ø range
- Contact material
Copper alloy gold plated
- Material
Thermoplastic
- Nominal voltage (details)
30 V AC
- Nominal current (details)
1.8 A, 1 A
- RoHS-compliant
Yes
- Features
+ shielding
encodable
- Max. temperature
+85 °C
- Min. temperature
-30 °C
- Temperature range
Process temperature max. 260 °C
- Engineering Part No
47346-0001
- Engineering Series Name
bottom mount USB
- Engineering Series No
47346
Documents & Downloads
Datasheet
Datasheet 2448914 Micro USB Socket Molex MOL Micro Solutions Right-angled 473460001 Molex Content: 2000 pc(s)
User & Safety Instructions
User & Safety Instructions 2448914 Micro USB Socket Molex MOL Micro Solutions Right-angled 473460001 Molex Content: 2000 pc(s)
Circuit diagramm
Circuit diagramm 2448914 Micro USB Socket Molex MOL Micro Solutions Right-angled 473460001 Molex Content: 2000 pc(s)
Description
Micro-USB B Receptacle with Flange, Bottom Mount, Surface Mount, Lead-Free
