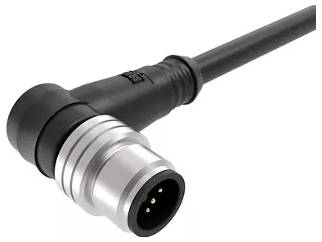

Molex 1200658754 Sensor/actuator connector (pre-fab) M12 10.0 m No. of pins (RJ): 5 1 pc(s) Piece
Product type
Sensor/actuator connector (pre-fab)
Connection side A
Micro-Change (M12)
No. of pins
5
Cable length
10.0 m
Nominal voltage
60 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
MOLEX 1200658754 MIC DC S/E Cordsets
Our service for you
Technical specifications
- Packaging type
Piece
- Type
1200658754
- Product type
Sensor/actuator connector (pre-fab)
- Connection side A
Micro-Change (M12)
- No. of pins
5
- Cable length
10.0 m
- Jacket material
PUR
- Nominal voltage
60 V
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Outside Ø
5.80 mm
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Cable colour
Black
- Coding
A
- Contact material
Copper alloy
- Contact surface
Gold
- max. cross section
0.34 mm²
IP67
- Features
PUR jacket
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Manufacturer part #
1200658754
- Industrial packaging
Yes
- Content
1 pc(s)
- Cable Ø
5.80 mm
- RoHS-compliant
Yes
- Engineering Part No
805007H09M100
- Engineering Series Name
MIC DC S/E Cordsets
- Engineering Series No
Integrated Products
Documents & Downloads
Datasheet
Datasheet 3367448 Molex 1200658754 Sensor/actuator connector (pre-fab) M12 10.0 m No. of pins (RJ): 5 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3367448 Molex 1200658754 Sensor/actuator connector (pre-fab) M12 10.0 m No. of pins (RJ): 5 1 pc(s) Piece
Description

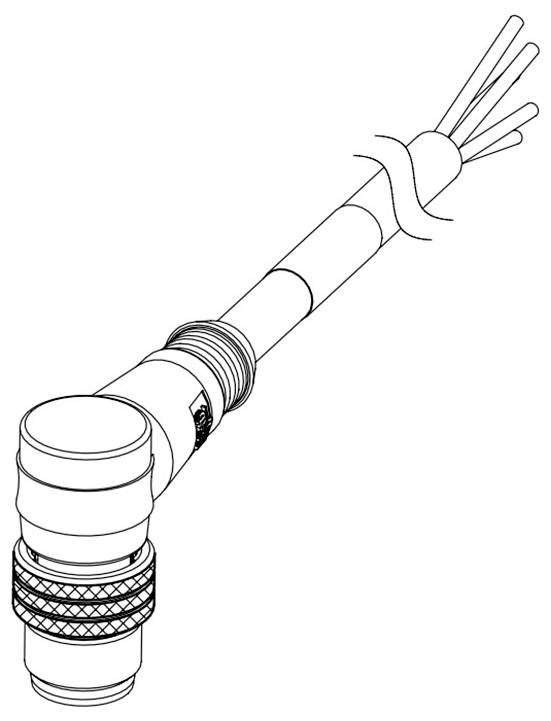

Micro-Change (M12) Single-Ended Cordset, 5 Poles, Male (90°) to Pigtail, 0.34mm² Black PUR LSOH Cable, 10.0m (32.81') Length
