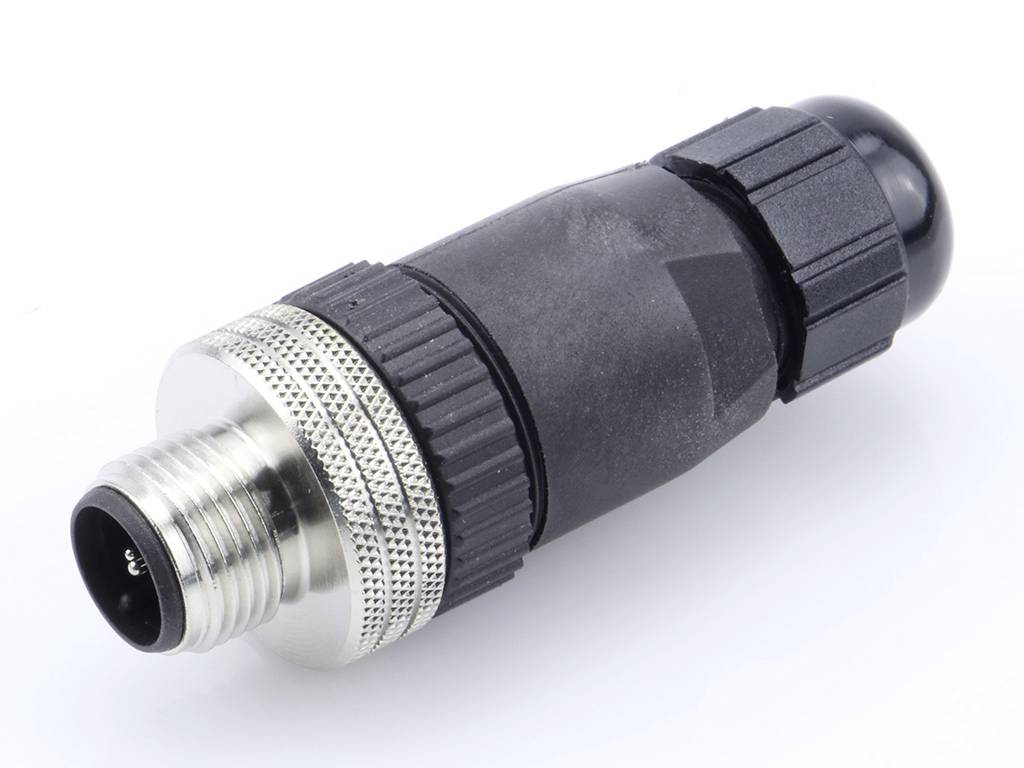

Molex 1200710045 Sensor/actuator connector Plug No. of pins (RJ): 5 1 pc(s)
Product type
Sensor/actuator connector
Connector type
Plug
No. of pins
5
Nominal voltage
30 V AC
36 V DC
Nominal current
4 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 8.99 / piece)
€ 8.99
incl. VAT
14-day return policy included
Technical specifications
- Wire size AWG: 18
- Coupling type: Outer thread
- Material – connector housing: PA
- Material - nut: Nickel-plated brass
- Nut: Single
- Orientation: Straight
- Type
Molex WOD Industrial Solution
- Product type
Sensor/actuator connector
- Connector type
Plug
- No. of pins
5
- Nominal voltage
30 V AC
36 V DC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Contact material
Brass
- Contact surface
Silver
IP67
- Min. temperature
-25 °C
- Max. temperature
+90 °C
- Manufacturer part #
1200710045
- Content
1 pc(s)
- Cable Ø (max.)
6.6 mm
- Cable Ø up to
3.3 mm
- Cable Ø range
3.3 - 6.6 mm
- RoHS-compliant
Yes
- Engineering Part No
8A5006-31
- Engineering Series Name
MIC DC Attachables
- Engineering Series No
120071
Documents & Downloads
Datasheet
Datasheet 2447051 Molex 1200710045 Sensor/actuator connector Plug No. of pins (RJ): 5 1 pc(s)
Circuit diagramm
Circuit diagramm 2447051 Molex 1200710045 Sensor/actuator connector Plug No. of pins (RJ): 5 1 pc(s)
Description
Micro-Change (M12) Single Keyway with PG7 Cable Fitting, Straight Male, 5 Poles, Cable Diameter 3.30-6.60mm
