Molex 98266-0144 Ribbon cable Contact spacing: 0.50 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Ribbon cable
CS
0.50 mm
No. of leads
14 x
Content
1 pc(s)
Nominal voltage
60 V AC
Datasheet (PDF)
Highlights & Details
MOLEX 98266-0144
Our service for you
Technical specifications
- Product type
Ribbon cable
- CS
0.50 mm
- No. of leads
14 x
- Content
1 pc(s)
- Nominal voltage
60 V AC
- Packaged
Yes
- Sold per metre
No
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
105 °C
- Manufacturer part #
98266-0144
- Type
98266-0144
- Length
76.00 mm
- RoHS-compliant
Yes
- Packaging type
Bulk
Documents & Downloads
Datasheet
Datasheet 3365233 Molex 98266-0144 Ribbon cable Contact spacing: 0.50 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3365233 Molex 98266-0144 Ribbon cable Contact spacing: 0.50 mm 1 pc(s)
Description

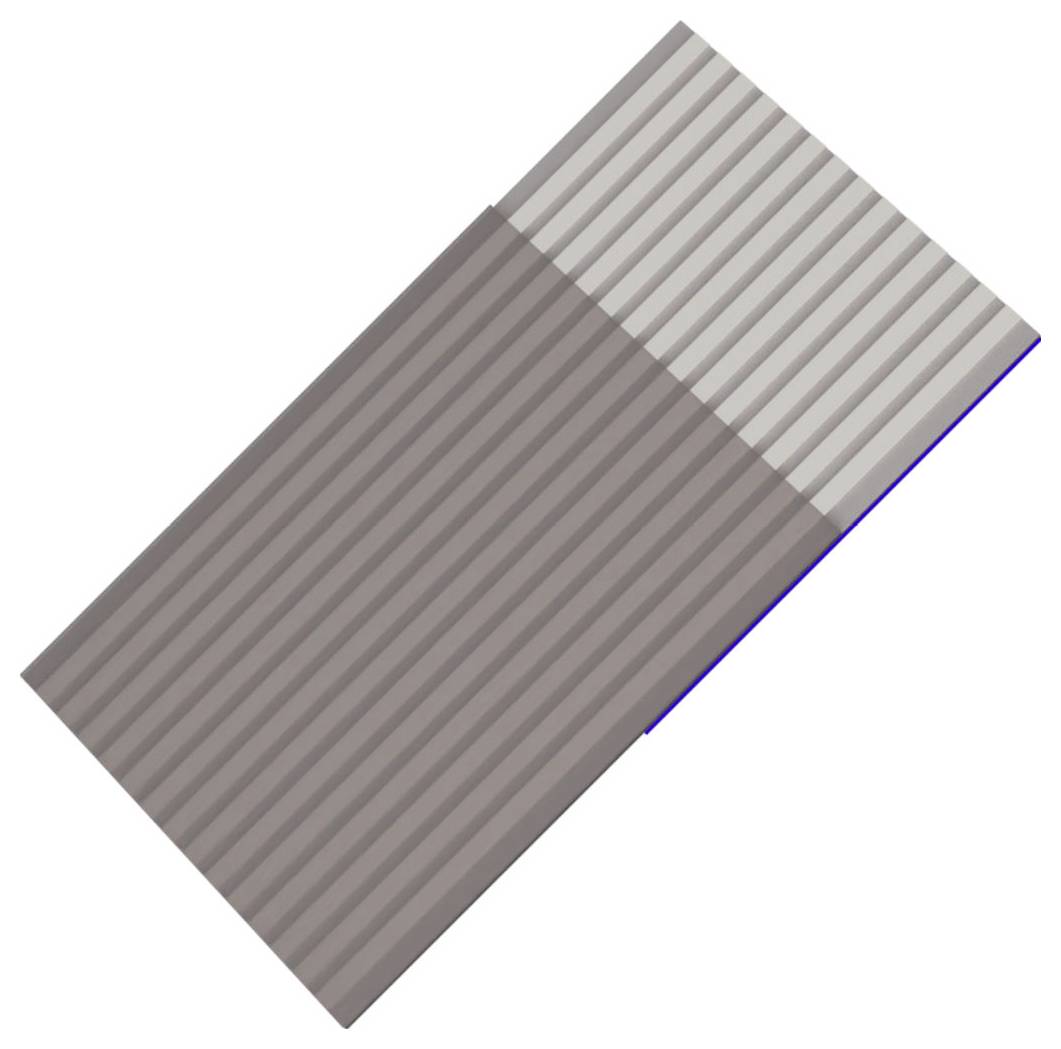

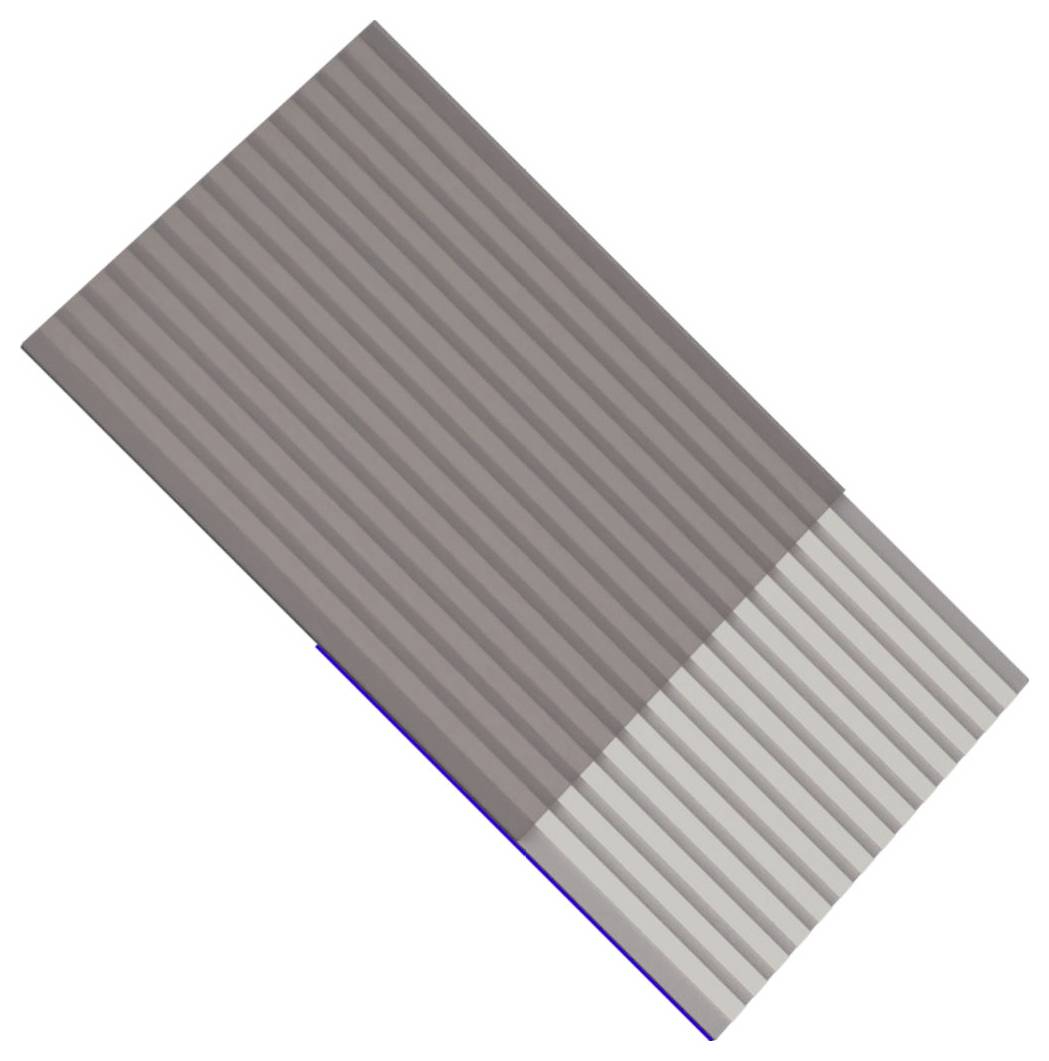

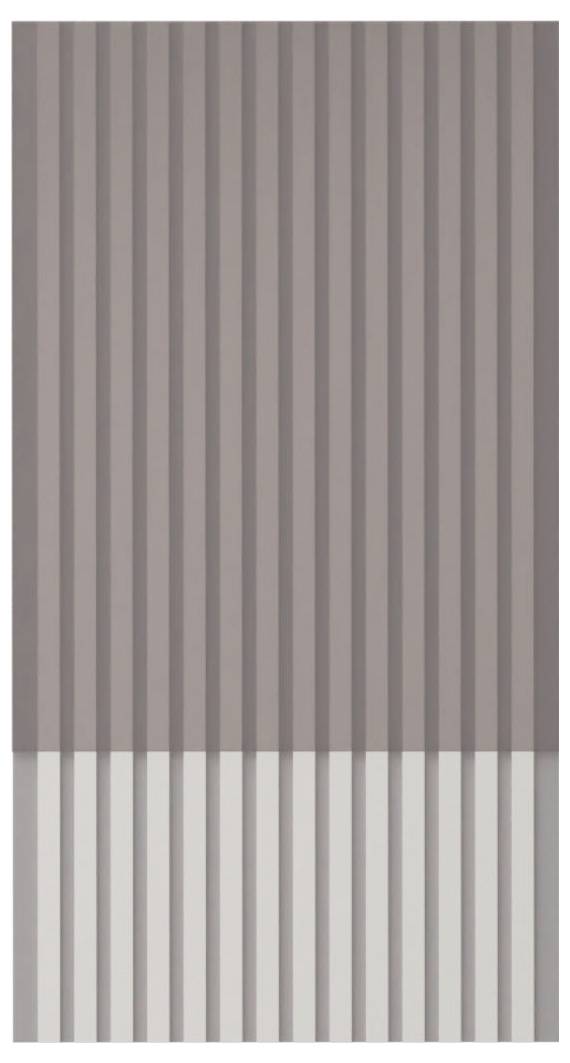

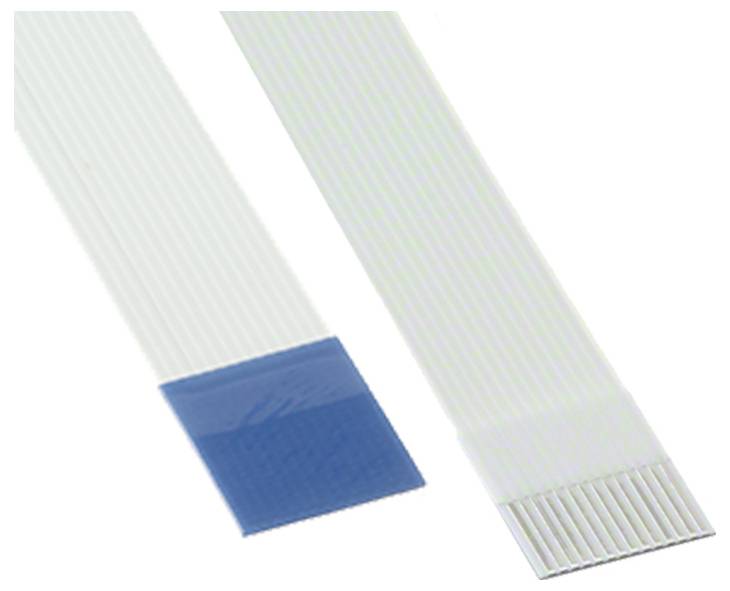

0.50mm Pitch Premo-Flex FFC Jumper, Opposite Side Contacts (Type D), 76.00mm Cable Length, Tin (Sn) Plating, 14 Circuits
