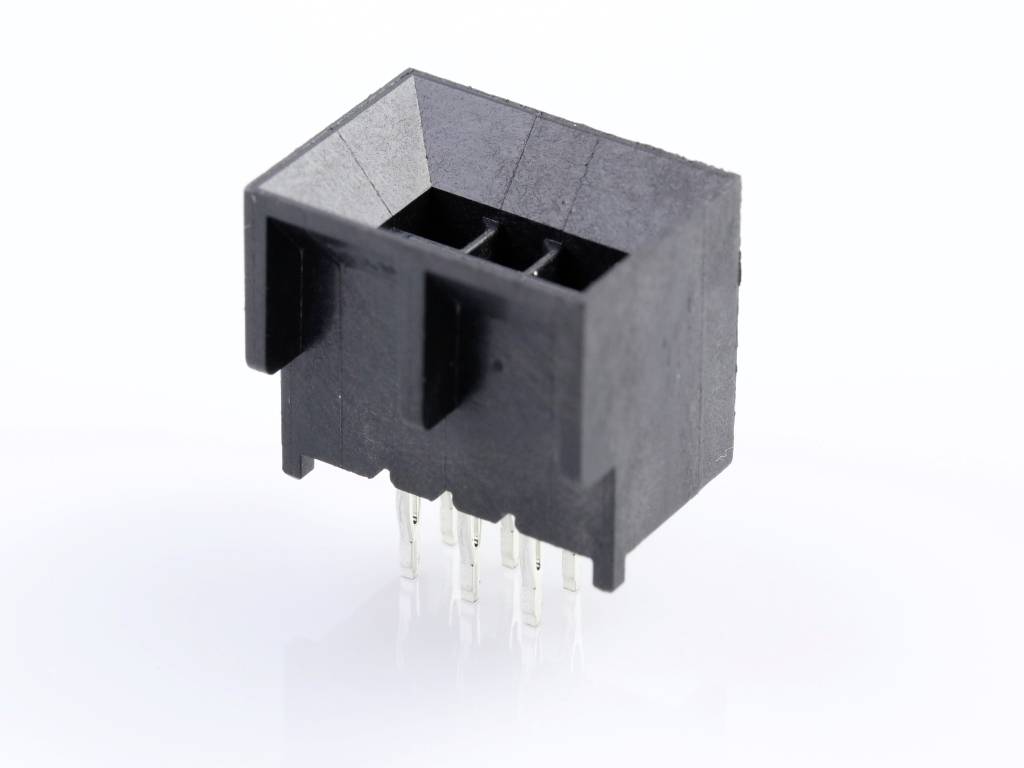

Molex Built-in pin strip (standard) Total number of pins 6 452800601 1 pc(s) Tray
Product type
Built-in pin strip (standard)
No. of rows
2
Total number of pins
6
Packaging type
Tray
Features
Dummy
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Molex 452800601 Microfit BMI CPI
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 6
Our service for you
Technical specifications
- Packaging type
Tray
- Product type
Built-in pin strip (standard)
- No. of rows
2
- Features
Dummy
- Pins per row
3
- Total number of pins
6
- Content
1 pc(s)
- Connection
Press-in
- Case material
Polyamide
- Manufacturer part #
452800601
- Insulation material
Polyamide
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Type
452800601
- Engineering Series Name
Microfit BMI CPI
- Engineering Series No
45280
Documents & Downloads
Datasheet
Datasheet 2760390 Molex Built-in pin strip (standard) Total number of pins 6 452800601 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2760390 Molex Built-in pin strip (standard) Total number of pins 6 452800601 1 pc(s) Tray
Description
Micro-Fit BMI CPI Compliant Pin Header, Blind Mate Interface, Dual Row, Vertical, 6 Circuits, PA Polyamide Nylon 4/6, UL 94V-0, Tin (Sn) Over Nickel (Ni) Plating
