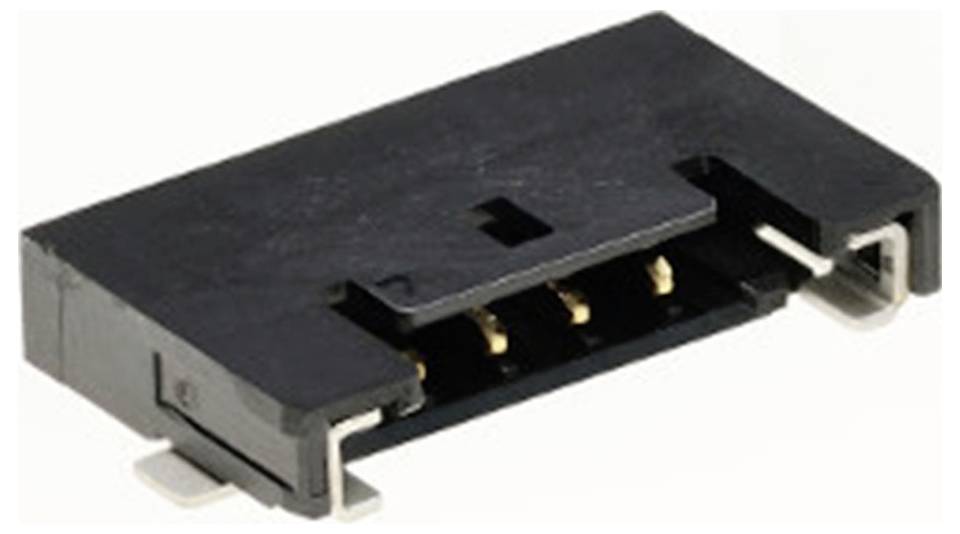

Image similar
Molex Built-in pin strip (standard) Total number of pins 6 Contact spacing: 1.00 mm 503763-0691 1 pc(s) Tape on Full ree
Product type
Built-in pin strip (standard)
No. of rows
1
CS
1.00 mm
Total number of pins
6
Packaging type
Tape on Full reel
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
MOLEX 503763-0691
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 6
Our service for you
Technical specifications
- Packaging type
Tape on Full reel
- Product type
Built-in pin strip (standard)
- No. of rows
1
- Features
+ locking mechanism
- CS
1.00 mm
- Pins per row
6
- Total number of pins
6
- Content
1 pc(s)
- Connection angle
90°
- Manufacturer part #
503763-0691
- Connector contact surface
Gold
- RoHS-compliant
Yes
- Type
503763-0691
Documents & Downloads
Datasheet
Datasheet 3377037 Molex Built-in pin strip (standard) Total number of pins 6 Contact spacing: 1.00 mm 503763-0691 1 pc(s) Tape on Full ree
User & Safety Instructions
User & Safety Instructions 3377037 Molex Built-in pin strip (standard) Total number of pins 6 Contact spacing: 1.00 mm 503763-0691 1 pc(s) Tape on Full ree
Description
1.00mm Pitch, Pico-Lock PCB Header, Single Row, Right-Angle, Surface Mount, Gold over Nickel Plating, Positive Lock, 6 Circuits, Tape and Reel
