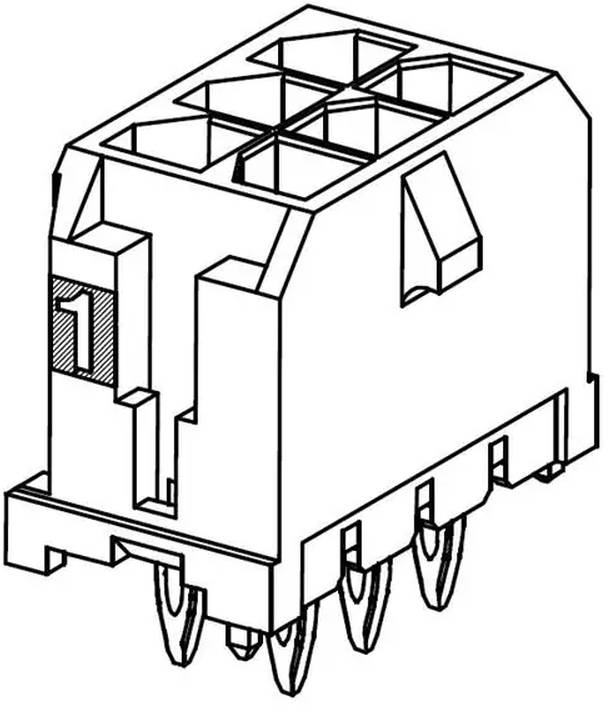

Image similar

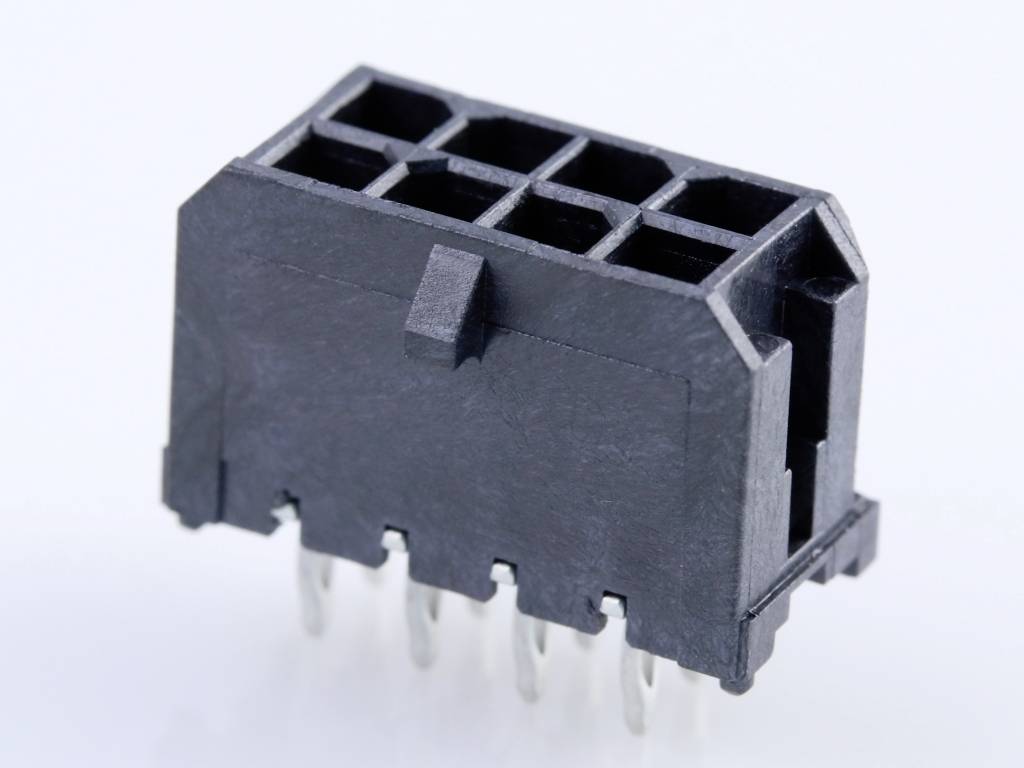

Molex Built-in pin strip (standard) Total number of pins 8 449145802 1 pc(s) Tray
Product type
Built-in pin strip (standard)
No. of rows
2
Total number of pins
8
Packaging type
Tray
Pins per row
4
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Molex 449145802 Microfit Std CPI
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 8
Our service for you
Technical specifications
- Packaging type
Tray
- Product type
Built-in pin strip (standard)
- No. of rows
2
- Pins per row
4
- Total number of pins
8
- Content
1 pc(s)
- Connector coating thickness
0.38 µm
- Case material
LCP
- Manufacturer part #
449145802
- Insulation material
LCP
- Board contact surface
Tin plated
- Connector contact surface
Gold (Au)
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Type
449145802
- Engineering Series Name
Microfit Std CPI
- Engineering Series No
44914
Documents & Downloads
Datasheet
Datasheet 2760314 Molex Built-in pin strip (standard) Total number of pins 8 449145802 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2760314 Molex Built-in pin strip (standard) Total number of pins 8 449145802 1 pc(s) Tray
Description
Micro-Fit CPI Header, Dual Row, Vertical, Compliant Pin Interface, 8 Circuits, LCP, Glass-Filled, UL 94V-0, 0.38µm Gold (Au) Selective Contact Plating, Tin (Sn) Plated Tails, Glow-Wire Capable
