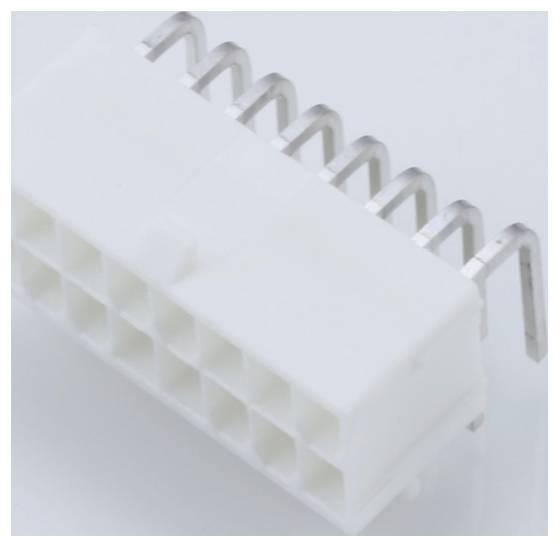

Image similar
Molex Built-in SIL socket (standard) Total number of pins 16 Contact spacing: 4.2 mm 39-30-0160 1 pc(s) Tray
Product type
Built-in SIL socket (standard)
Connector type
Socket, right angle
No. of rows
2
CS
4.2 mm
Total number of pins
16
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
MOLEX 39-30-0160
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 16
Our service for you
Technical specifications
- Packaging type
Tray
- Product type
Built-in SIL socket (standard)
- Connector type
Socket, right angle
- No. of rows
2
- CS
4.2 mm
- Total number of pins
16
- Nominal current
13 A
- Nominal current - rounded value
13 A
- Content
1 pc(s)
- Manufacturer part #
39-30-0160
- Nominal voltage
600 V
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Min. temperature
-40 °C
- Type
39-30-0160
- Contact surface
Brass tin plated
- Pin length (PCB)
3.6 mm
Documents & Downloads
Datasheet
Datasheet 3365221 Molex Built-in SIL socket (standard) Total number of pins 16 Contact spacing: 4.2 mm 39-30-0160 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 3365221 Molex Built-in SIL socket (standard) Total number of pins 16 Contact spacing: 4.2 mm 39-30-0160 1 pc(s) Tray
Description
Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 16 Circuits, PA Polyamide Nylon 6/6 94V-0, 2.54µm Matte Tin (Sn) Plating
