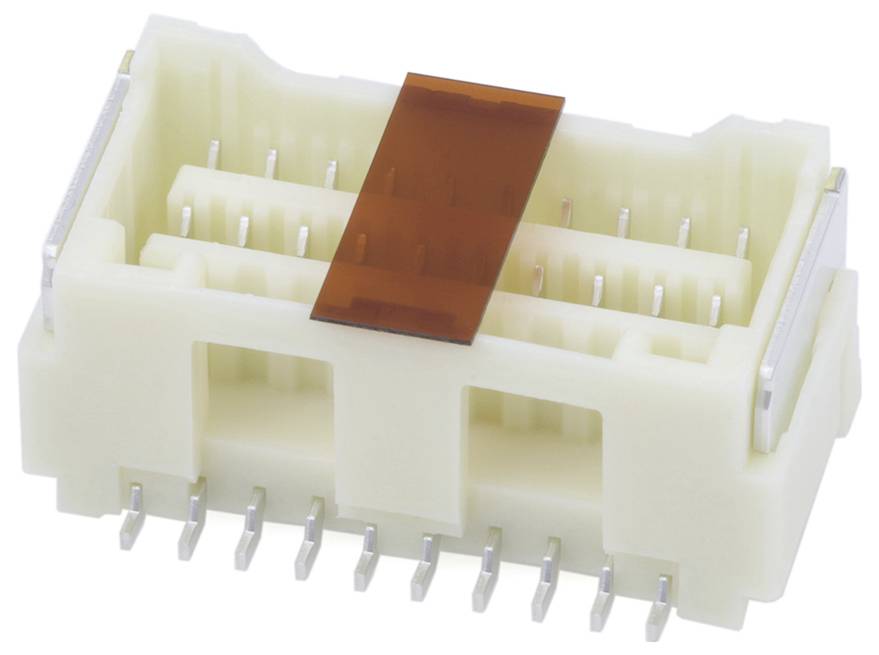

Image similar
Molex Built-in SIL socket (standard) Total number of pins 20 Contact spacing: 1.5 mm 503154-2090 1 pc(s) Tape on Full re
Product type
Built-in SIL socket (standard)
No. of rows
2
CS
1.5 mm
Total number of pins
20
Packaging type
Tape on Full reel
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
MOLEX 503154-2090
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 20
Our service for you
Technical specifications
- Packaging type
Tape on Full reel
- Product type
Built-in SIL socket (standard)
- No. of rows
2
- Connector system
wire-to-board
- Features
+ locking mechanism
- CS
1.5 mm
- Pins per row
10
- Total number of pins
20
- Content
1 pc(s)
- Connection
SMT
- Manufacturer part #
503154-2090
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Type
503154-2090
Documents & Downloads
Datasheet
Datasheet 3376842 Molex Built-in SIL socket (standard) Total number of pins 20 Contact spacing: 1.5 mm 503154-2090 1 pc(s) Tape on Full re
User & Safety Instructions
User & Safety Instructions 3376842 Molex Built-in SIL socket (standard) Total number of pins 20 Contact spacing: 1.5 mm 503154-2090 1 pc(s) Tape on Full re
Description
1.50mm Pitch, CLIK-Mate PCB Receptacle, Dual Row, Surface Mount, Vertical, Tin Plating, Positive Lock, 20 Circuits, Natural
