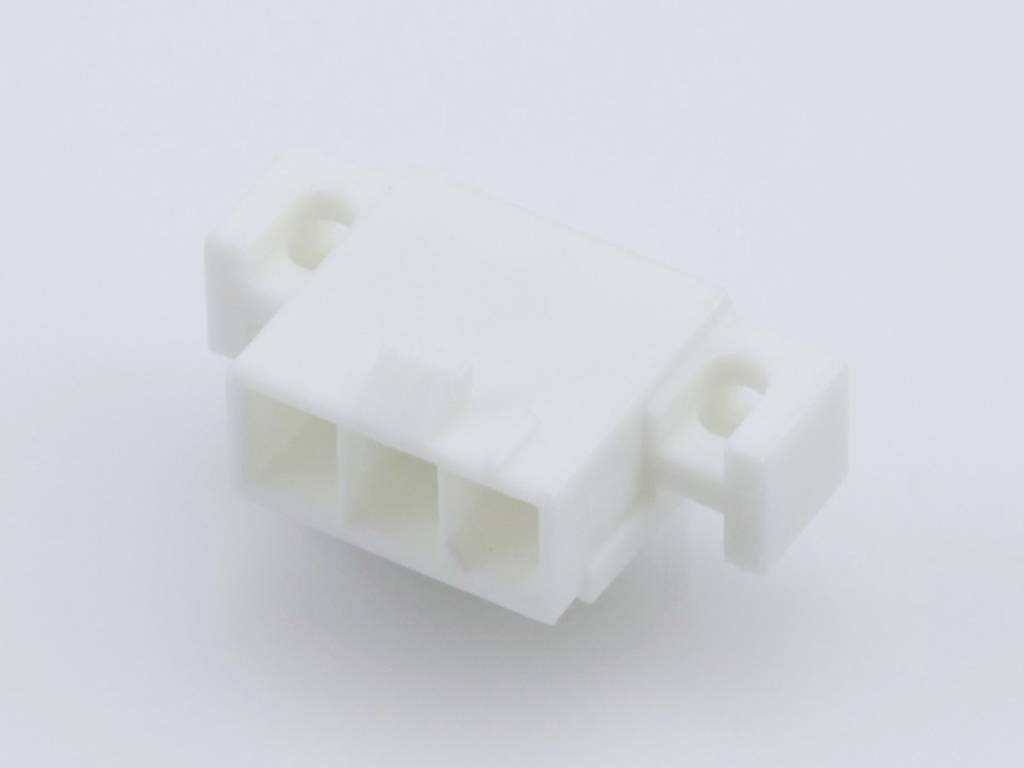

Image similar
Molex Built-in SIL socket (standard) Total number of pins 3 39303032 1 pc(s) Bulk
Product type
Built-in SIL socket (standard)
No. of rows
1
Total number of pins
3
Packaging type
Bulk
Connector system
wire-to-board
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Molex 39303032 MINIFIT JR RA HDR
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 3
Our service for you
Technical specifications
- Packaging type
Bulk
- Product type
Built-in SIL socket (standard)
- No. of rows
1
- Connector system
wire-to-board
- Features
+ sleeve
- Pins per row
3
- Total number of pins
3
- Content
1 pc(s)
- Connection
Print
- Connection angle
90°
- Actuation direction
Parallel (to the PCB)
- Case material
Polyamide 6.6
- Manufacturer part #
39303032
- Insulation material
Polyamide 6.6
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Type
39303032
- Engineering Part No
5569-03A3-210
- Engineering Series Name
MINIFIT JR RA HDR
- Engineering Series No
05569
Documents & Downloads
Datasheet
Datasheet 2764595 Molex Built-in SIL socket (standard) Total number of pins 3 39303032 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 2764595 Molex Built-in SIL socket (standard) Total number of pins 3 39303032 1 pc(s) Bulk
Description
Mini-Fit Jr. Header, Single Row, Right-Angle, with PCB Mounting Flanges, 3 Circuits, PA Polyamide Nylon 6/6, 94V-0, Tin (Sn) Plating
