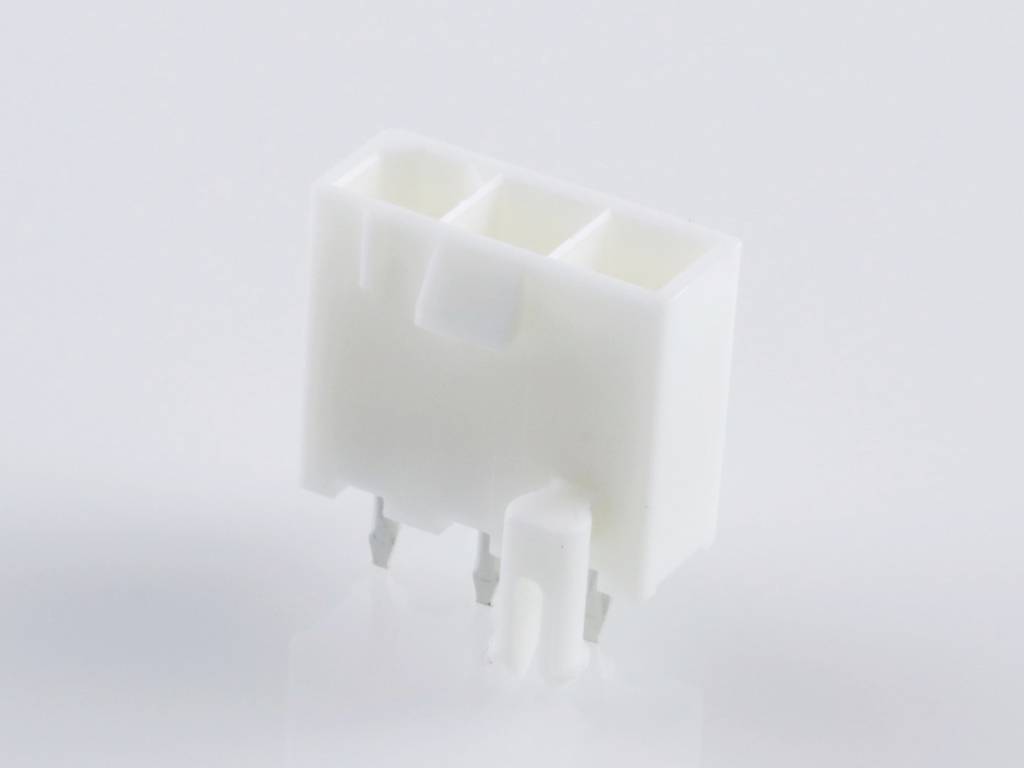

Image similar
Molex Built-in SIL socket (standard) Total number of pins 3 Contact spacing: 4.20 mm 39302032 1 pc(s) Tray
Product type
Built-in SIL socket (standard)
Connector type
Power strip
No. of rows
1
CS
4.20 mm
Total number of pins
3
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Molex 39302032 MINIFIT JR HDR VERT
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 3
Technical specifications
- Packaging type
Tray
- Product type
Built-in SIL socket (standard)
- Connector type
Power strip
- No. of rows
1
- Features
+ snap-in nibs
- CS
4.20 mm
- Pins per row
1
- Total number of pins
3
- Content
1 pc(s)
- Manufacturer part #
39302032
- Factory colour
Ecru
- Connector contact surface
Gold
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Type
39302032
- Engineering Part No
5566-03A3GS-210
- Engineering Series Name
MINIFIT JR HDR VERT
- Engineering Series No
05566
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2764468 Molex Built-in SIL socket (standard) Total number of pins 3 Contact spacing: 4.20 mm 39302032 1 pc(s) Tray
Description
Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Single Row, 3 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Natural
