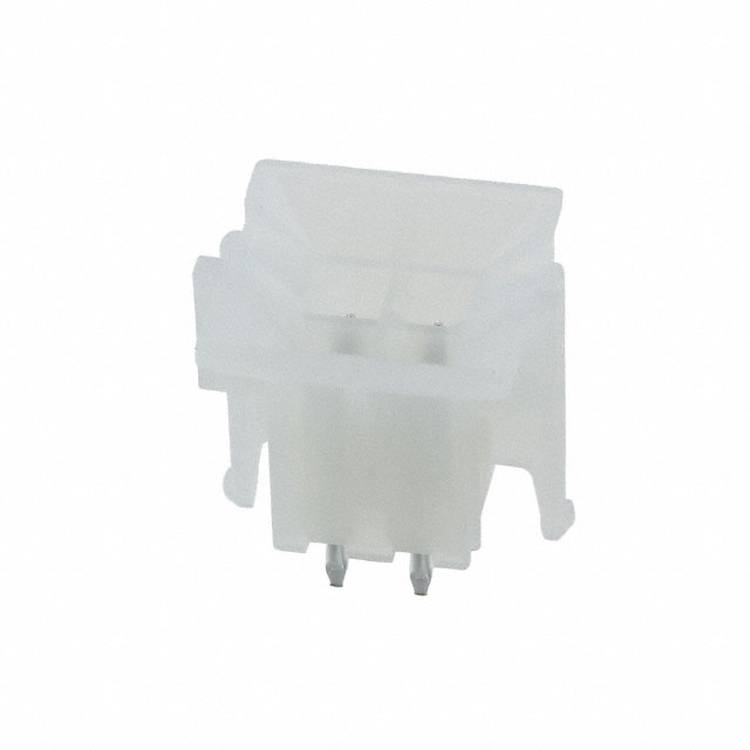

Molex Built-in SIL socket (standard) Total number of pins 4 Contact spacing: 4.20 mm 15246041 1 pc(s) Tray
Product type
Built-in SIL socket (standard)
Connector type
Power strip
No. of rows
2
CS
4.20 mm
Total number of pins
4
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Molex 15246041 MINIFIT BMI VERT HDR
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 4
Our service for you
Technical specifications
- Packaging type
Tray
- Product type
Built-in SIL socket (standard)
- Connector type
Power strip
- No. of rows
2
- Features
+ snap-in locking mechanism
- CS
4.20 mm
- Pins per row
2
- Total number of pins
4
- Content
1 pc(s)
- Connection
Pin strip
- Connection angle
90°
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
15246041
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Type
15246041
- Engineering Part No
A-42440-0411
- Engineering Series Name
MINIFIT BMI VERT HDR
- Engineering Series No
42440
Documents & Downloads
Datasheet
Datasheet 2762773 Molex Built-in SIL socket (standard) Total number of pins 4 Contact spacing: 4.20 mm 15246041 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2762773 Molex Built-in SIL socket (standard) Total number of pins 4 Contact spacing: 4.20 mm 15246041 1 pc(s) Tray
Description
Mini-Fit BMI Header, 4.20mm Pitch, Dual Row, Vertical, with Snap-in Plastic Peg PCB Lock, 4 Circuits, PA Polyamide Nylon 6/6, UL 94V-2, Tin (Sn) Plating, without Drain Holes
