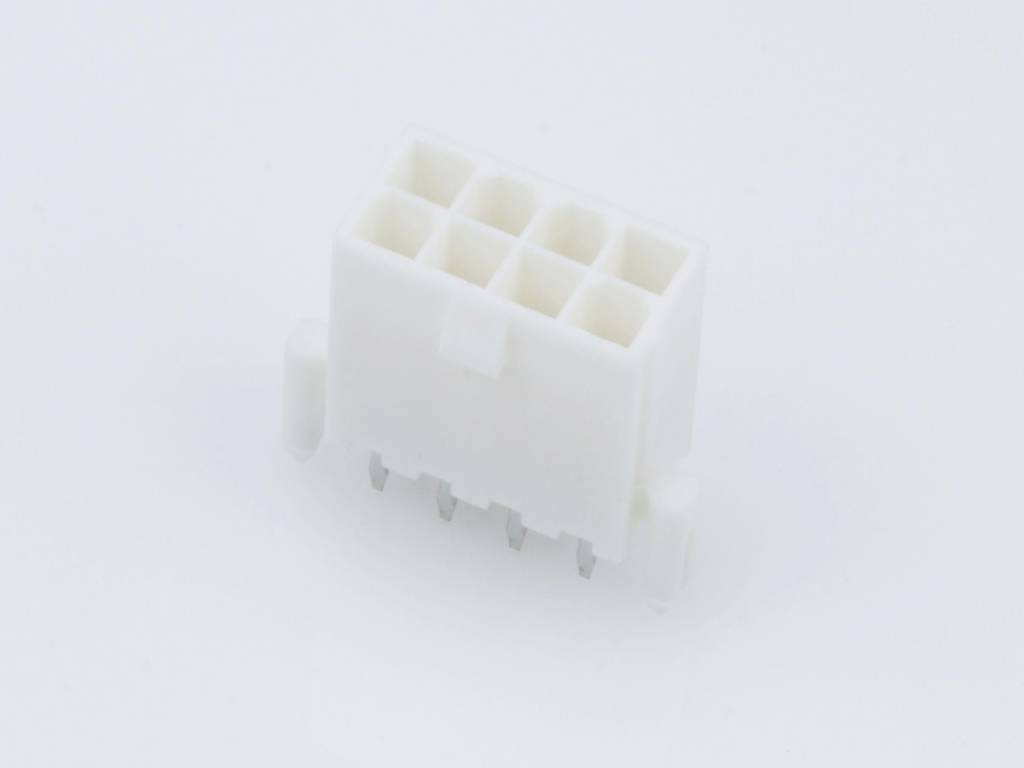

Image similar
Molex Built-in SIL socket (standard) Total number of pins 8 Contact spacing: 4.20 mm 39289088 1 pc(s) Tray
Product type
Built-in SIL socket (standard)
No. of rows
2
CS
4.20 mm
Total number of pins
8
Packaging type
Tray
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Molex 39289088 MINIFIT JR HDR VERT
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 8
Technical specifications
- Packaging type
Tray
- Product type
Built-in SIL socket (standard)
- No. of rows
2
- Features
+ snap-in nibs
- CS
4.20 mm
- Pins per row
4
- Total number of pins
8
- Content
1 pc(s)
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
39289088
- Factory colour
Ecru
- Connector contact surface
Gold
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Type
39289088
- Engineering Part No
5566-08B2GS-210
- Engineering Series Name
MINIFIT JR HDR VERT
- Engineering Series No
05566
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2760358 Molex Built-in SIL socket (standard) Total number of pins 8 Contact spacing: 4.20 mm 39289088 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2760358 Molex Built-in SIL socket (standard) Total number of pins 8 Contact spacing: 4.20 mm 39289088 1 pc(s) Tray
Description
Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 8 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Natural
