Name: Molex Molex MOL Power & Signal Sol. 1731070062 D-SUB plug Number of pins: 9 Soldering 1 pc(s) Carton
Brand: Molex
SKU: 2447549
Availability: InStock

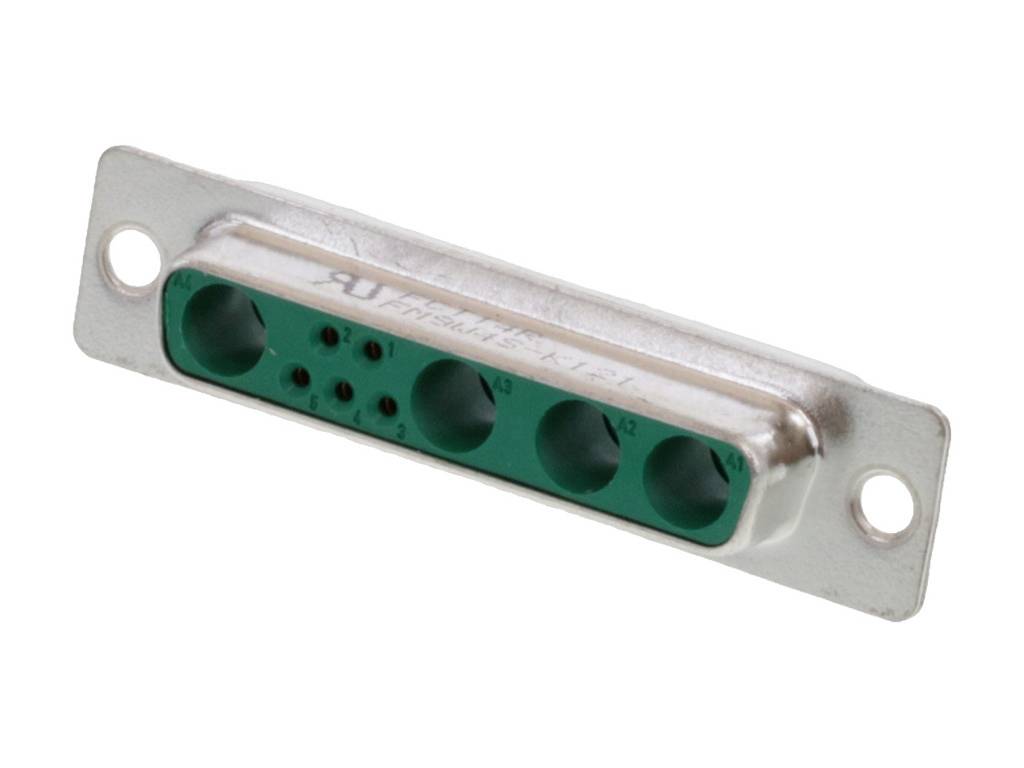

Metal rail with four round green holes; electronic connector.

Technical drawing of a 9-pin D-sub connector with numbered pins and drill holes, with markings for dimensions.

1/2

Image similar

Packaging type

Carton

Product type

D-SUB plug

Connector type

Socket

Number of pins

Connection

Soldering

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

107 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3.29 / piece)

€ 3.29

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

D-Sub

D-SUB plug
No. of rows: 2
Number of pins: 9

Our service for you

Technical specifications

Shielding: YesConnections (equipped): 5Type of front panel mounting: FlangeWire size AWG: 20Front panel mounting: Can be used from the rearMaximum current per connection: 7.5AOrientation: Straight

Packaging type: Carton

Product type: D-SUB plug

Connector type: Socket

Number of pins: 9

Connection: Soldering

No. of rows: 2

Content: 1 pc(s)

Mating cycles: 500

Manufacturer part #: 1731070062

Factory colour: Green

Contact material: Copper alloy

Contact surface: Gold on nickel

CS: 2.84 mm

RoHS-compliant: Yes

: IP20

Temperature range: -55° - +130 °C

Type: Molex MOL Power & Signal Sol.

Engineering Part No: FM9W4S-K121

Engineering Series Name: FCT MIXED LAYOUT

Engineering Series No: 173107
