Connectors & CablesConnectorsD-SUB ConnectorsD-SUB Connectors

Molex Molex MOL Power & Signal Sol. 1731090070 D-SUB plug Number of pins: 37 Soldering 1 pc(s)

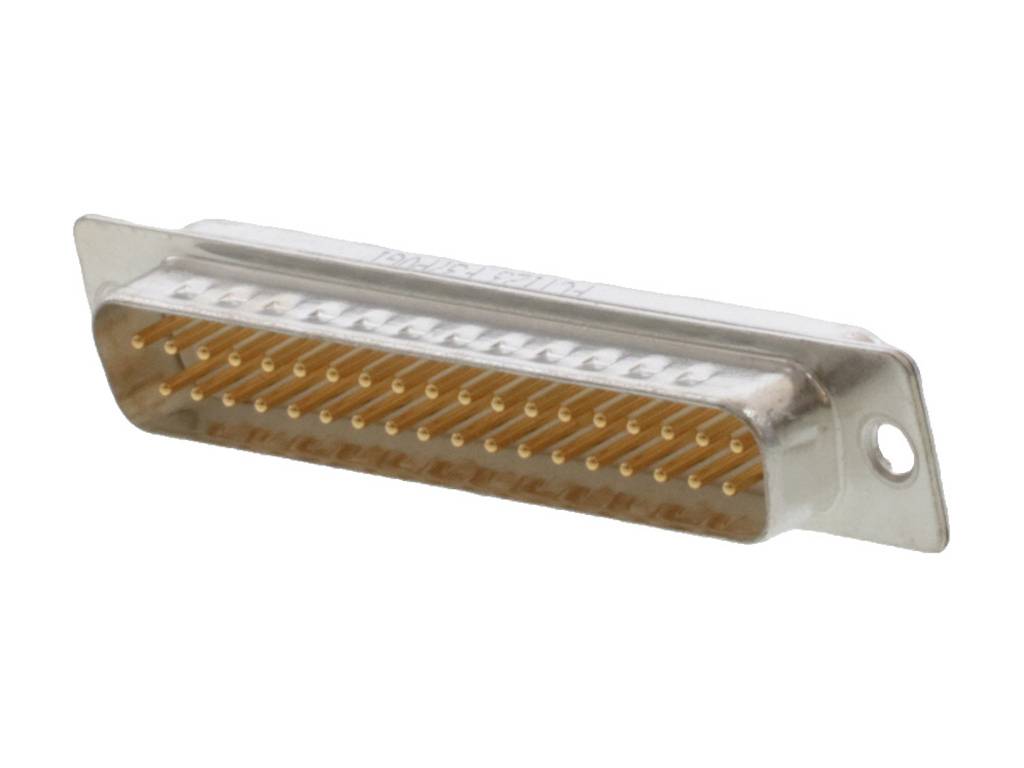

A 36-pin electrical connector with gold-plated contacts, typically used for computer and printer connections.
Line drawing of an electrical connector with ten pins.
1/2
Image similar
Product type
D-SUB plug
Connector type
Plug
Number of pins
37
Connection
Soldering
No. of rows
2
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon 9 Nov
139 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 10
Multiple: 1
Total (€ 15.99 / piece)
€ 15.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

D-Sub

  • D-SUB plug
  • No. of rows: 2
  • Number of pins: 37

Our service for you

Technical specifications

  • Shielding: YesConnections (equipped): 37Type of front panel mounting: FlangeWire size AWG: 20Front panel mounting: Can be used from the rearMaximum current per connection: 7.5AOrientation: Straight
Product type

D-SUB plug

Connector type

Plug

Number of pins

37

Connection

Soldering

No. of rows

2

Content

1 pc(s)

Mating cycles

500

Manufacturer part #

1731090070

Factory colour

White

Contact material

Copper alloy

Contact surface

Gold on nickel

CS

2.84 mm

RoHS-compliant

Yes

IP20

Temperature range

-55° - +125 °C. °C

Type

Molex MOL Power & Signal Sol.

Engineering Part No

F37P0G1

Engineering Series Name

FCT D-SUBS

Engineering Series No

173109

Documents & Downloads

Datasheet

Datasheet 2447567 Molex Molex MOL Power & Signal Sol. 1731090070 D-SUB plug Number of pins: 37 Soldering 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2447567 Molex Molex MOL Power & Signal Sol. 1731090070 D-SUB plug Number of pins: 37 Soldering 1 pc(s)

Description

FCT Standard-Density D-Sub Connector, Male, Straight, Solder Cup, Gold Plating, 500 Mating Cycles, 37 Circuits, White Insulator
