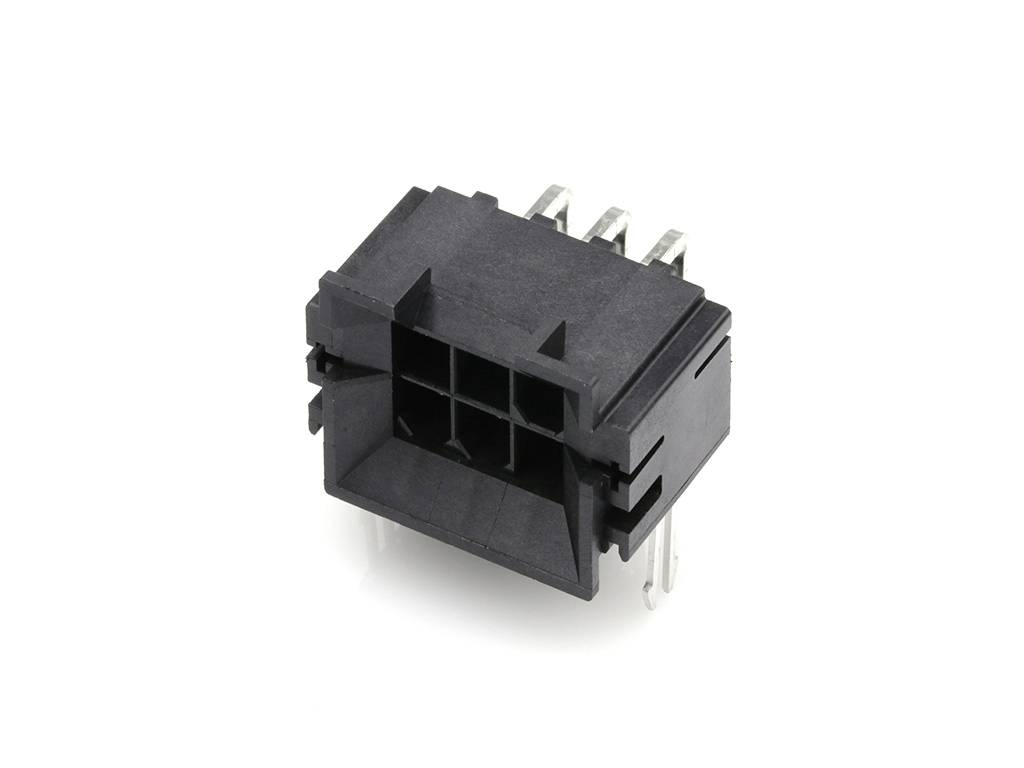

Image similar
Molex Pin housing PCB Total number of pins 6 438100002 1 pc(s) Tray
Product type
Pin housing PCB
No. of rows
2
Total number of pins
6
Packaging type
Tray
Connector system
wire-to-board
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Molex 438100002 N/A
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 6
Our service for you
Technical specifications
- Packaging type
Tray
- Product type
Pin housing PCB
- No. of rows
2
- Connector system
wire-to-board
- Pins per row
3
- Total number of pins
6
- Content
1 pc(s)
- Connection
Soldering
- Manufacturer part #
438100002
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Type
438100002
- Engineering Series Name
N/A
- Engineering Series No
43810
Documents & Downloads
Datasheet
Datasheet 2760066 Molex Pin housing PCB Total number of pins 6 438100002 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2760066 Molex Pin housing PCB Total number of pins 6 438100002 1 pc(s) Tray
Description
Mini-Fit BMI Header, Dual Row, Right-Angle, for 1.60mm PCB, 6 Circuits, Tin (Sn) Plating, 260C Wave Solderable, with Retention Clip
