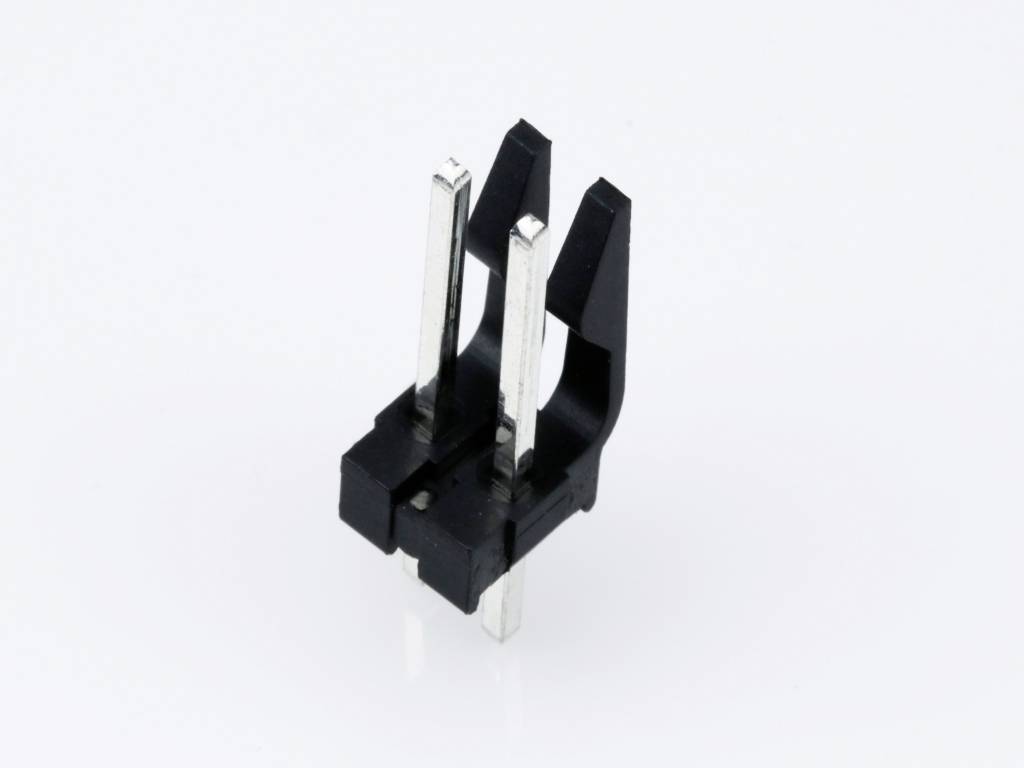

Molex Pin strip (standard) Total number of pins 2 Contact spacing: 3.96 mm 26481025 1 pc(s) Bulk
Product type
Pin strip (standard)
CS
3.96 mm
Total number of pins
2
Packaging type
Bulk
Features
+ locking mechanism
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Molex 26481025 .156 BREAKAPART - LO
- Content: 1 pc(s)
- Total number of pins: 2
Our service for you
Technical specifications
- Packaging type
Bulk
- Product type
Pin strip (standard)
- Features
+ locking mechanism
- CS
3.96 mm
- Total number of pins
2
- Pin shape
Square
- Content
1 pc(s)
- Connection
Print
- Manufacturer part #
26481025
- Connector contact surface
Tin
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Type
26481025
- Engineering Part No
A-41671-C02A197
- Engineering Series Name
.156 BREAKAPART - LO
- Engineering Series No
41671
Documents & Downloads
Datasheet
Datasheet 2764966 Molex Pin strip (standard) Total number of pins 2 Contact spacing: 3.96 mm 26481025 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 2764966 Molex Pin strip (standard) Total number of pins 2 Contact spacing: 3.96 mm 26481025 1 pc(s) Bulk
Description
KK 396 Breakaway Header, Vertical, Square Pin, with Friction Lock, 2 Circuits, Tin (Sn) Plating
