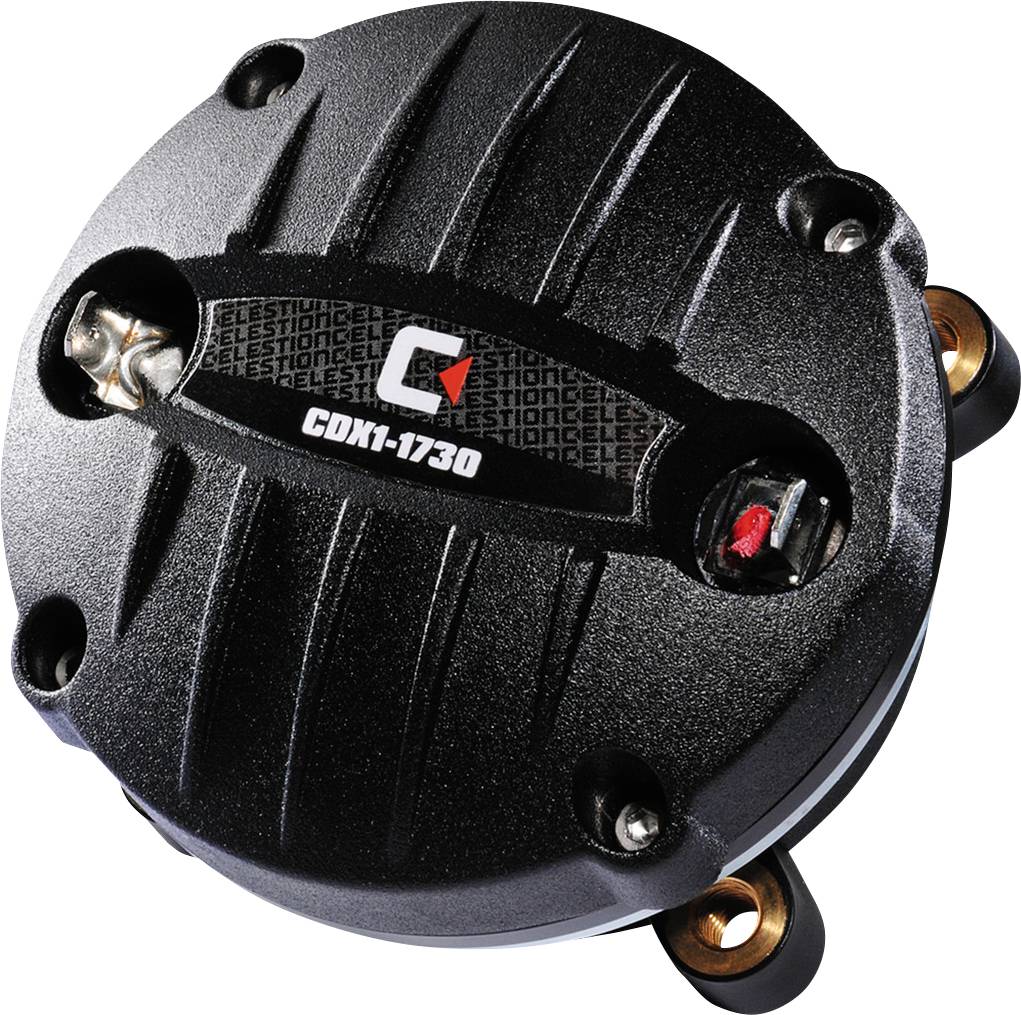

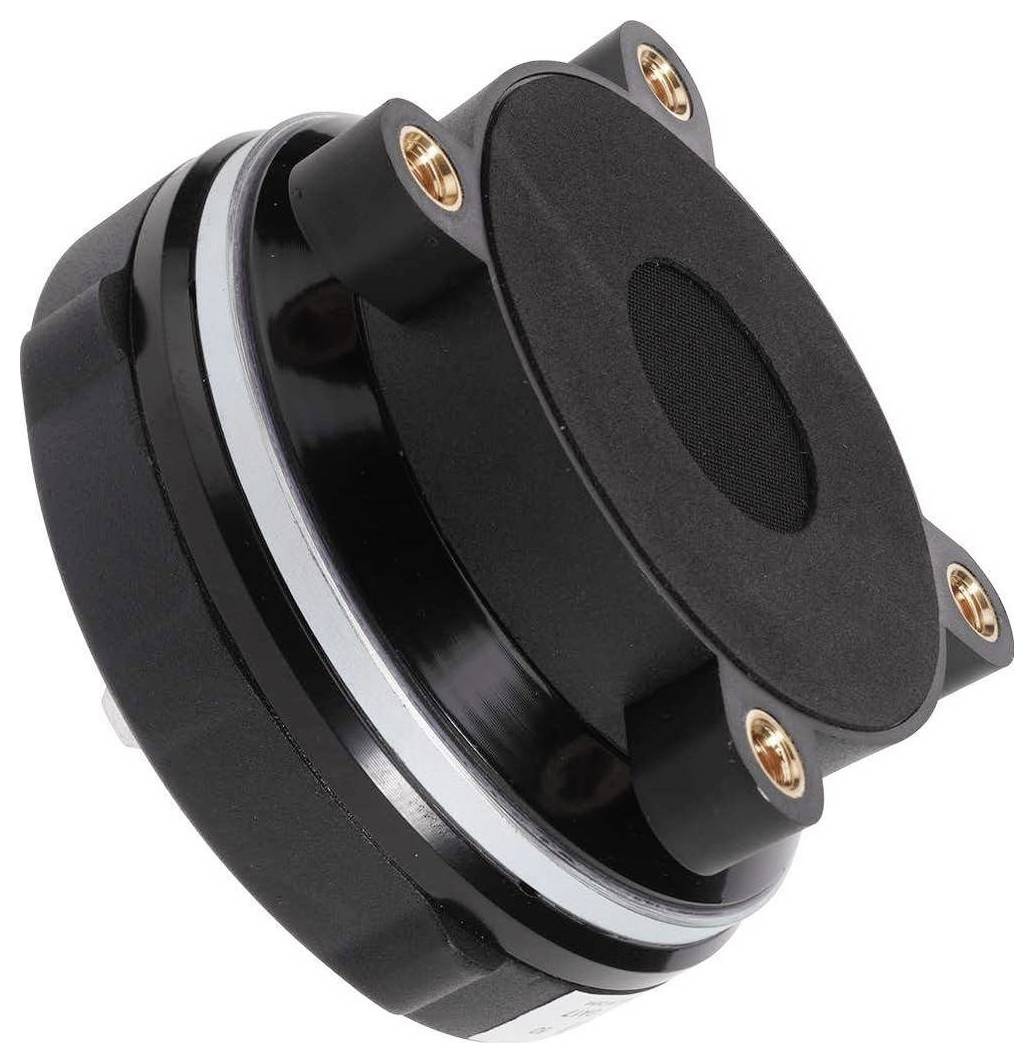

Monacor CDX1-1730/8 PA horn driver RMS capacity=40 W 8 Ω
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Net weight: 0.637 kg
- Transmission technology: Cable
- Frequency range 1200-20000 Hz
- Nominal capacity (RMS) 40 W.
- Characteristic sound pressure 110 dB/W/m
- Mounting hole: Depending on the horn
- Installation depth: Depending on the horn
- Dimensions: Ø 88.5 mm x 55 mm
- Outer diameter: 88.5 mm
- Width 88.5 mm
- Height: 88.5 mm
- Depth: 55 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight 0.64 kg
- Speaker type 1"
- Gross weight: 0.778 kg
- Impedance (Z) 8 Ω
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):2200 Hz
- Music load capacity (MAX) 80 W
- Voice coil diameter 44 mm
- Hole diameter 76 mm (4x M6)
- Voice coil material: Copper-coated aluminum flat wire
- Outlet opening 2 mm
- Product type
PA horn driver
- RMS capacity
40 W
- Max. load
80 W
- Min. frequency
1200 Hz
- Max. frequency
20000 Hz
- Frequency range
1200 Hz - 20000 Hz
- Impedance
8 Ω
- Weight
0.64 kg
- (Ø)
88.5 mm
- Width
88.5 mm
- Height
88.5 mm
- Factory colour
Black
- Depth
55 mm
- Sound pressure
110 dB
- Speaker size (inch)
1 inch
Documents & Downloads
Datasheet
Datasheet 3340865 Monacor CDX1-1730/8 PA horn driver RMS capacity=40 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3340865 Monacor CDX1-1730/8 PA horn driver RMS capacity=40 W 8 Ω
Description
PA HORN DRIVER, 40 W, 8 Ω
High-quality 25 mm compression driver (1") with 44 mm moving coil (1.75") and neodymium magnet One-part PETP foil diaphragm and crimp sound-Castle membrane arrangement Recommended minimum crossover frequency 2200 Hz (12 dB/oct.) 25 mm sound aperture
This text is machine translated.
High-quality 25 mm compression driver (1") with 44 mm moving coil (1.75") and neodymium magnet One-part PETP foil diaphragm and crimp sound-Castle membrane arrangement Recommended minimum crossover frequency 2200 Hz (12 dB/oct.) 25 mm sound aperture
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range 1200-20000 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):2200 Hz
- Nominal capacity (RMS) 40 W.
- Music load capacity (MAX) 80 W
- Characteristic sound pressure 110 dB/W/m
- Voice coil diameter: Ø 44 mm
- Voice coil material: Copper-coated aluminum flat wire
- Outlet opening Ø 2 mm
- Mounting hole: Depending on the horn
- Installation depth: Depending on the horn
- Hole diameter: Ø 76 mm (4x M6)
- Dimensions: Ø 88.5 mm x 55 mm
- Outer diameter: Ø 88.5 mm
- Width: Ø 88.5 mm
- Height: Ø 88.5 mm
- Depth: 55 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight 0.64 kg
- Packing: 1
- Speaker type 1"
- Packaging dimensions (W x H x L) 0.135 x 0.075 x 0.105 m
- Gross weight: 0.778 kg
- Net weight: 0.637 kg
