Name: Monacor STA-1504 PA amplifier RMS power per channel (at 4 Ohm): 160 W
Brand: Monacor
SKU: 1332764

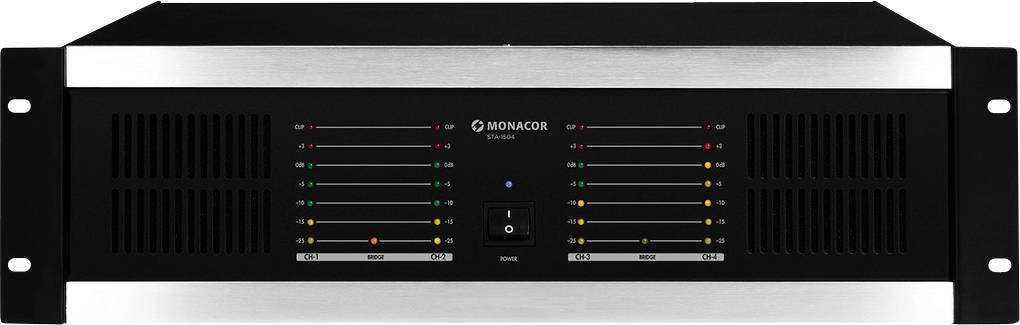

A black amplifier with multiple input/output indicators and a metal frame. It displays LED light levels for various audio channels.

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Output power:
Sinusoidal power:
4 ohms: 4 x 160 WRMS
8 ohms: 4 x 100 WRMS
8-Ohm-Bruckenbetrieb: 2 x 320WRMS
Max. Power: 900WMAX
General information:
Inputs: 0.7 V/20 kOhm
Frequency range: 12-6 0000 Hz/-1.5 dB
Signal-to-noise ratio:> 80 dB
Crosstalk attenuation:> 60 dB
Distortion:< 0.1%
Power supply 230 VWechsel/50 Hz/1200VA
Permissible operating temperature: 0-40°C
Dimensions: 482 x 132 x 310 mm, 3 HE
Weight: 16 kg.
Connections: 4 x XLR, bal. 4 x screw terminal

Product type: PA amplifier

Power per channel (4Ω): 160 W

Power per channel (8Ω): 100 W

Max. frequency: 60000 Hz

Min. frequency: 12 Hz

Interfaces: XLR in
Screw terminals

Weight: 16 kg

Width: 48.2 cm

Height: 13.2 cm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1332764 Monacor STA-1504 PA amplifier RMS power per channel (at 4 Ohm): 160 W

Information

Information 1332764 Monacor STA-1504 PA amplifier RMS power per channel (at 4 Ohm): 160 W

Conformity certificate

Conformity certificate 1332764 Monacor STA-1504 PA amplifier RMS power per channel (at 4 Ohm): 160 W

Description

Soundcheck 01/2006
Shows up in the monitor operation on the stage when clubgig as efficient power plant. The multi-channel principle this amps is full.
PROSOUND 03/2006 (STA -1508)
Can a bunch of wegputzen problems at a stroke. Every penny of your price value.

This text is machine translated.
