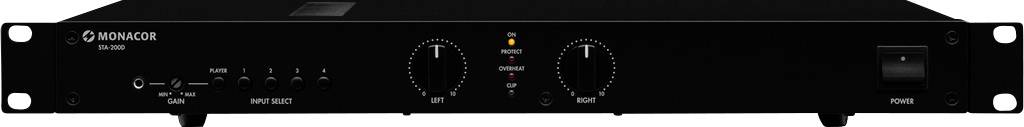

Monacor STA-200D PA amplifier RMS power per channel (at 4 Ohm): 125 W
EAN:
Part number:
Item no:
Technical specifications
- Output power:
- Sinusoidal power:
- 4 ohms: 2 x 125 WRMS
- 8 ohms: 2 x 75WRMS
- 8-Ohm-Bruckenbetrieb: -
- 4-Ohm-Bruckenbetrieb: -
- Max. Power: 300WMAX
- General information:
- Inputs: 1 V/23 kOhm (Cinch) ,90 mV-1V (jack)
- Frequency range 20-20000 Hz
- Noise distance:> 100 dB, A"-evaluated
- Crosstalk attenuation:> 56 dB
- The non-linear distortion factor< 0.05%
- Power supply 230 VWechsel/50 Hz/350VA
- Permissible operating temperature: 0-40°C
- Dimensions: 483 x 44 x 268 mm, 1 HE
- Weighs 4.7 kg.
- Connections: 1 x 3.5-mm stereo jack 4 x RCA L/R 1x SPEAKER L/R 1X LS-clamp connection strip L/R"
- Product type
PA amplifier
- Power per channel (4Ω)
125 W
- Power per channel (8Ω)
75 W
- Max. frequency
20000 Hz
- Min. frequency
20 Hz
- Interfaces
RCA in
3.5 mm jack in
SPK type socket
Screw terminals
- Weight
4.7 kg
- Width
48.3 cm
- Height
4.4 cm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332769 Monacor STA-200D PA amplifier RMS power per channel (at 4 Ohm): 125 W
Description
Features
- Stereo-PA-digital amplifier with 5 switchable line inputs
- Class-D concept
- Noiseless operation through fan-less cooling concept
- By generously designed ring core transformer high power reserves
- High degree of efficiency of the end stages
- 3.5-mm stereo jack connection with adjustable sensitivity on the front side
- 2 level control
- Protection against short circuit, overvoltage and overtemperature
- LEDs for power, over-regulation (clip), protect, and over heat
- Particularly flat and stable design 1U
- This text is machine translated.
