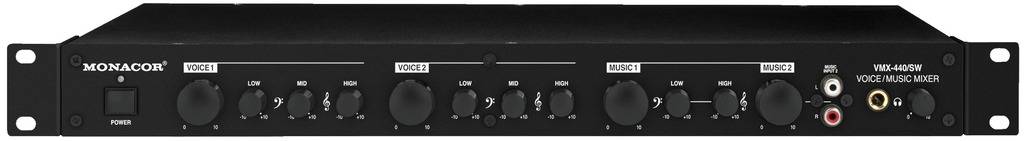

Monacor VMX-440/SW 19" mixer No. of channels:4
EAN:
Part number:
Item no:
Technical specifications
- Line input, stereo: 100 mV/10 kOhm
- Microphone input: 1mV/600 Ohm
- Master output, stereo: 1-3 V / 100 Ohm
- Record output, stereo: 1 V/100 Ohm
- Headphones, stereo:>=32 Ohm, 2 x 15 mW
- Frequency range 20-20000 Hz
- 0.05 % distortion factor
- Signal-to-noise ratio:> 60 dB
- Sound controller, Depth: +/-12 dB/30 Hz
- Sound controller, the middle: +/-12 dB/1 kHz (only voice)
- Sound controller, High: +/-12 dB/12 kHz
- Power supply 230 VWechsel/50Hz/10VA
- Permissible operating temperature: 0-40°C
- Dimensions: 482 x 45 x 274 mm, 1 HE
- Weighs 2.9 kg.
- Line input, stereo: 3 x RCA L/R
- Microphone Input: 2 x 6.3 mm jack, bal.
- Master output, stereo: 2 x RCA L/R
- Record output, stereo: 1 x RCA L/R
- Headphones: 1 x 6.3 mm jack
- Mute: screw plug connection
- Product type
19" mixer
- Channels
4
- No. of inputs
4 x
- Interfaces
Line in
3.5 mm headphone out
XLR in
6.3 mm jack out
- No. of 6.3 mm headphone outputs
1 x
- No. of line-ins
2 x
- No. of microphone XLR inputs
2 x
- Weight
2.9 kg
- Width
482 mm
- Height
45 mm
- Length
274 mm
- Dim
(L x W x H) 274 x 482 x 45 mm
- UKCA
yes
Description
Features
- 4-channel voice/Music Mixer simply mix! A user-friendly operating concept creates clarity. Two stereo line and two mono microphone sources can easily be mixed together. All input channels you can influence the behavior of the sound. For protection against overload, the master output level on counter-sunk trimming potentiometer preset. The Mute the stereo master outputs is possible by an optional remote switch
- 2 stereo line inputs
- 2 balanced mic inputs
- Parallel front stereo line input
- 3-way sound control for each microphone input
- 2-way tone control together for both Line inputs
- Mute function via optional button/switch
- 2 adjustable stereo master outputs
- The master output level can be preset via trimming potentiometer
- Adjustable headphone output
- Stereo Record output
- 482-mm-Rack Installation (19"), 1U, with supplied mounting angles
- This text is machine translated.
