MPE Garry 101-2-020-S-BQ0A09 Pin connector Power strip 1 pc(s)
Product type
Pin connector
Connector type
Power strip
Connection
Cut & Clip
Content
1 pc(s)
Nominal current - rounded value
1 A
Part number:
Item no:
Highlights & Details
Pole connector with strain relief RM2.5
Our service for you
Technical specifications
- can be plugged with 0.64 mm
- Core cross section (AWG), min. 28 AWG
- Conductor cross-section (AWG), max. 26 AWG
- Breakdown voltage 500 V RMS / min.
- Type
101-2-020-S-BQ0A09
- Product type
Pin connector
- Connector type
Power strip
- Connection
Cut & Clip
- Content
1 pc(s)
- Nominal current
1 A
- Nominal current - rounded value
1 A
28 AWG - 26 AWG
- Manufacturer part #
101-2-020-S-BQ0A09

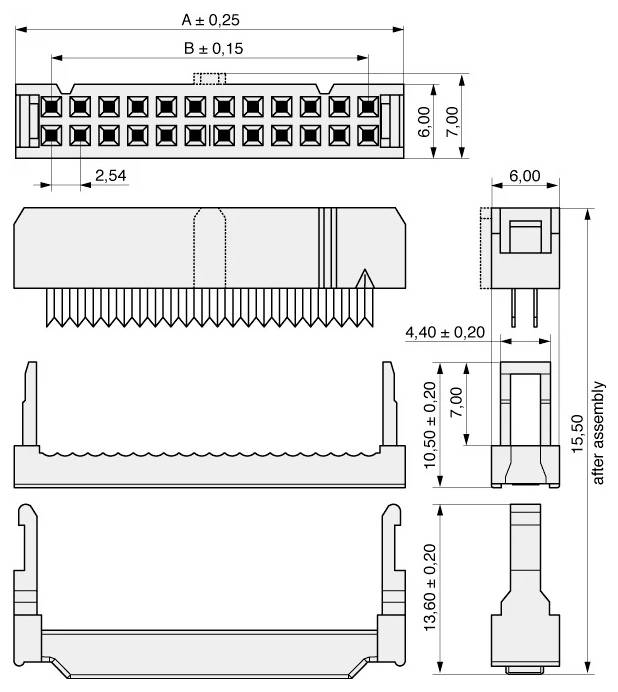

- Width
6.0 mm
- Height
15.5 mm
- Length
30.1 mm
- RoHS-compliant
Yes
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3735540 MPE Garry 101-2-020-S-BQ0A09 Pin connector Power strip 1 pc(s)
Description

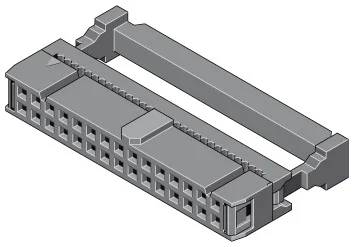

Socket board with cut-clamp-connection according to DIN 41651 / IEC6060603-13 for standard ribbon cable
With strain relief
